Removal [12/2017 - ]: Procedure

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

    Refer to PROCEDURE - Step 1 [12/2017 - 10/2020] , or see step  1 [10/2020 - 10/2022], or see step  1 [10/2022 - ]

  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

    Refer to PROCEDURE - Step 2 [12/2017 - 10/2020] , or see step  2 [10/2020 - 10/2022], or see step  2 [10/2022 - ]

  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 3 [12/2017 - 10/2020] , or see step  3 [10/2020 - 10/2022], or see step  3 [10/2022 - ]

  4. REMOVE SWITCH BEZEL

    Refer to PROCEDURE - Step 4 [12/2017 - 10/2020] , or see step  4 [10/2020 - 10/2022], or see step  4 [10/2022 - ]

  5. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 6 [12/2017 - 10/2020] , or see step  6 [10/2020 - 10/2022], or see step  6 [10/2022 - ]

  7. REMOVE DOOR CONTROL SWITCH

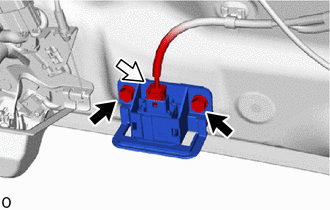

    1. Disconnect the connector.
      GTY835797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Remove the 2 screws.

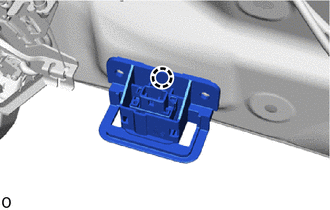

    3. Detach the claw and remove the door control switch.
      GTY828868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
