Reassembly [03/2017 - 06/2019]: Procedure

  1. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

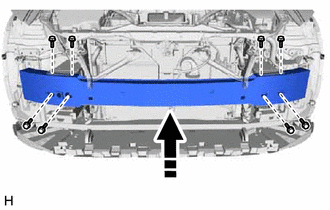

    1. Install the front bumper reinforcement sub-assembly with the 8 bolts.
      GTY817623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Torque: 38 N.m (387 kgf/cm, 28 ft.lbf)

  2. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH

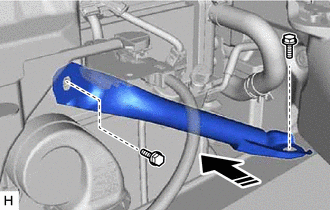

    1. Install the lower arm bracket brace sub-assembly LH with the 2 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      GTY822682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH

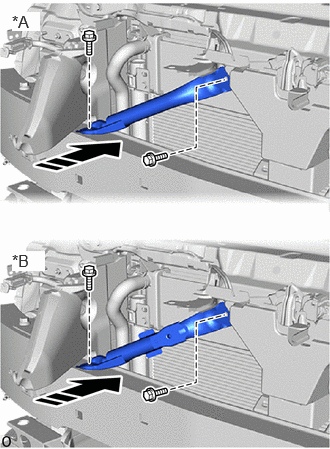

    1. Install the lower arm bracket brace sub-assembly RH with the 2 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

      GTY1085824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
      Install in this Direction
  4. INSTALL HEADLIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  5. INSTALL HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  6. INSTALL FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 1

  7. INSTALL PEDESTRIAN DETECTION CHAMBER ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. INSTALL NO. 2 FRONT BUMPER MOUNTING BRACKET
    1. Check that the engine switch off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.

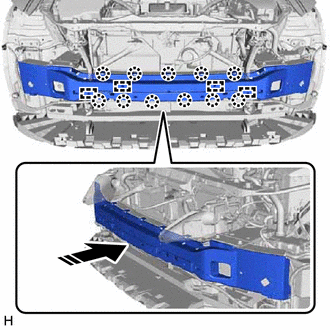

    3. Attach the guides and claws.
      GTY800861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

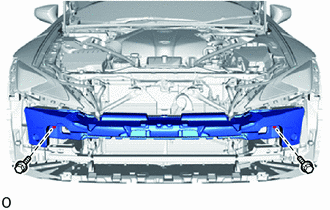

    4. Install the No. 2 front bumper mounting bracket with the front bumper energy absorber the with the 2 bolts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      GTY827288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

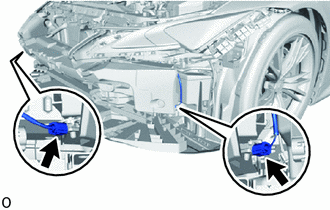

    5. Connect the 2 connectors of the pedestrian detection chamber assembly.
      NOTE:

      When connecting any pedestrian detection chamber assembly connector, take care not to damage the wire harness.

      GTY824886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

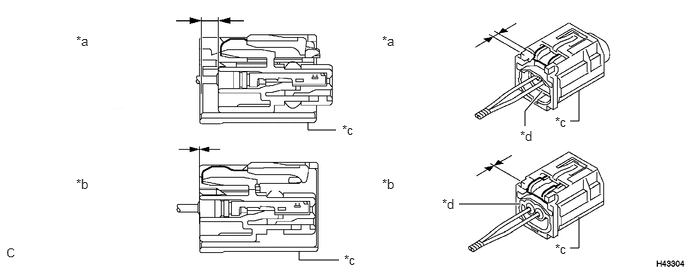

      1. Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.
        GTY824216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct *b Incorrect
        *c CPA *d Housing

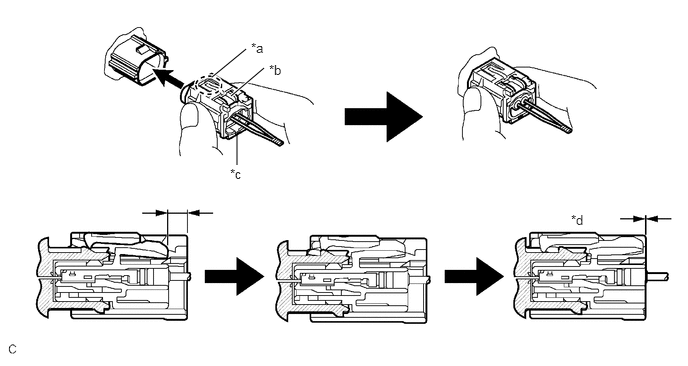

      2. While holding the CPA be sure to engage the connectors until they are locked and check that the CPA is in its original position (when locking, make sure that a click sound can be heard).

        HINT:

        When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the CPA, as it may result in an insecure fit.

        GTY810567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a CPA Upper Part *b Housing Lock
        *c CPA *d Connection is Completed
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  10. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13

  11. INSTALL LOWER RADIATOR GRILLE
  12. INSTALL UPPER RADIATOR GRILLE

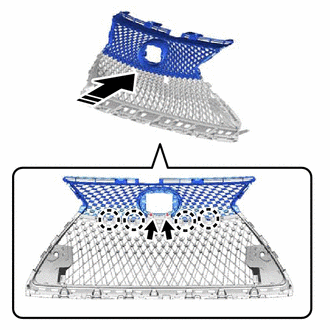

    GTY826951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the claws.
    2. Install the upper radiator grille with the 2 screws.
  13. INSTALL NO. 2 RADIATOR GRILLE MOULDING

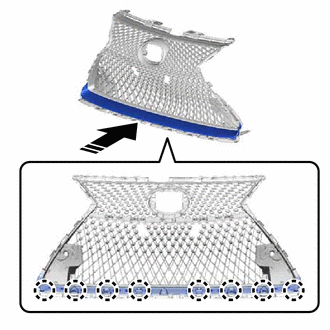

    1. Attach the claws.
      GTY780444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

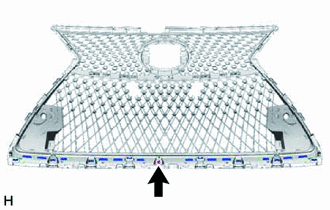

    2. Install the No. 2 radiator grille moulding with the screw.
      GTY828377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL RADIATOR GRILLE MOULDING

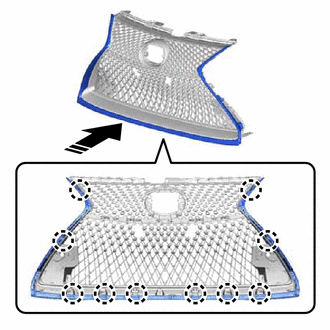

    1. Attach the claws.
      GTY786190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

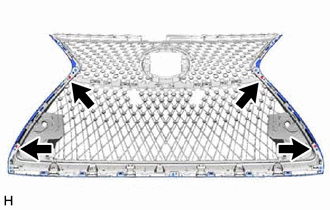

    2. Install the radiator grille moulding with the 4 screws.
      GTY780118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

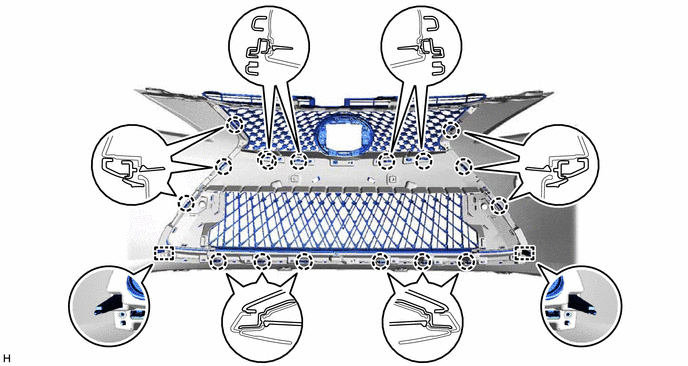

    1. Insert the guides and attach the claws.
      GTY780116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

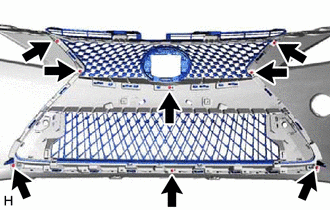

    2. Install the radiator grille sub-assembly with the 8 screws.
      GTY780115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT FENDER LINER RETAINER

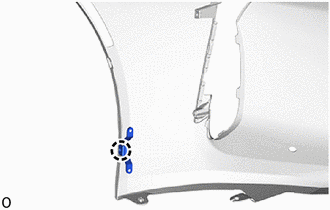

    1. Attach the claw to install the front fender liner retainer.
      GTY799962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  17. INSTALL FRONT BUMPER HOLE COVER RH

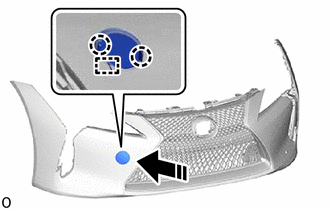

    1. Attach the anti-drop hook.
      GTY788763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claws and install the front bumper hole cover RH.
  18. REPAIR INSTRUCTION
    1. Clean the front bumper cover surface.
      1. using a heat light, heat the front bumper cover surface.
        NOTE:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
      2. wipe off any tape adhesive with cleaner.
    2. Installation temperature.
      1. When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the front bumper cover surface (installation surface of the front bumper cover) and tape to between 20 and 30°C (68 and 86°F) using a heat light.

        When the ambient temperature is higher than 35°C (95°F), cool the front bumper cover surface (installation surface of the front bumper cover) and tape to between 20 and 30°C (68 and 86°F) prior to installation.

        HINT:

        • The most appropriate temperature for installing the tape is 25°C (77°F).
        • When the temperature is low, the tape turns stiff and falls off easily. When the temperature is high, the tape loses elasticity.
    3. Before installation.
      1. Make sure any dirt on and around the front bumper cover surface where the tape will be installed (installation surface of the front bumper cover) is removed, and that the surface is smooth. If the surface is rough or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.

        HINT:

        Spray water on the shop floor to settle any dust.

    4. Key points for handling the tape.
      1. The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and level.
        NOTE:

        Do not bend the tape or leave it in a place with a high temperature.

    5. Key points for the installation of the tape (how to use a squeegee and the installation procedure for a flat surface).
      NOTE:
      • Position the tape with a high level of accuracy to achieve a neat finish and to avoid peeling.
      • The tape cannot be reused because it deforms and will not fit after removal.
      1. To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the front bumper cover while applying the tape. Tilt the squeegee 40 to 50° (for pressing forward) or 30 to 45° (for pulling) from the front bumper cover surface and press with a force of 20 to 30 N (2 to 3 kgf. 1.45 to 6.71 lbf.) while moving the squeegee at a constant slow speed of 30 to 70 mm (1.18 to 2.76 in.) per second.

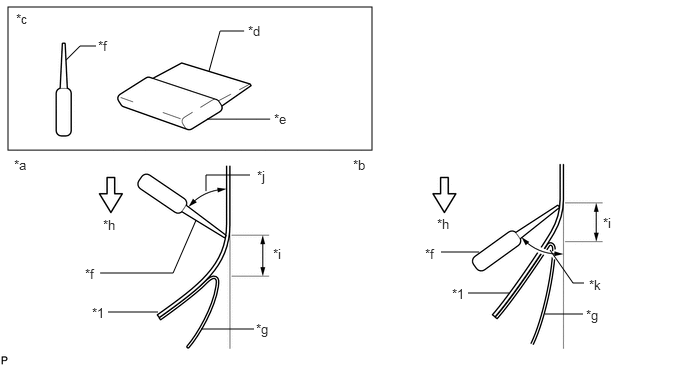

        GTY948888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 No. 2 Moulding Tape - -
        *a Pressing *b Pulling
        *c Sectional View *d Non-padded Side
        *e Padded Side *f Squeegee
        *g Release Paper *h 30 to 70 mm/sec. (1.18 to 2.76 in/sec.)
        *i 10 to 20 mm (0.394 to 0.787 in.) *j 40 to 50° (for pressing forward)
        *k 30 to 45° (for pulling) - -
        NOTE:

        Be sure to observe the specified pressing speed, force and angle of the squeegee to avoid wrinkles and air bubbles.

        HINT:

        • Either angle of the squeegee (for pressing forward or for pulling) is acceptable.
        • Be sure to apply the tape while removing the release paper 10 to 20 mm (0.39 to 0.79 in.) from the edge of the squeegee.
    6. Key points for the installation of the tape (how to use a squeegee and the installation procedure for a hemming surface).
      GTY948909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a First
      *b Second
      *c Third
      *d Squeegee
      1. If it is difficult to press the tape, press it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem.

        HINT:

        When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee.

    7. Key points for the installation of the tape (how to use a squeegee and the installation procedure for corners).
      1. Remove the release paper and apply the tape carefully with your fingers.
      2. Before applying the tape to each corner, heat the tape using a heat light and gradually apply it to avoid wrinkles in the tape and achieve a neat finish.
    8. Check after installation.
      1. After completing the application, check if the tape is applied neatly. If the tape is not applied neatly, apply new tape.
        NOTE:

        Do not reuse the tape.

  19. INSTALL NO. 2 MOULDING TAPE

    HINT:

    When installing the No. 2 moulding tape, heat the front bumper cover.

    Standard

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 2 moulding tape installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 2 moulding tape while making sure not to touch the adhesional surface.

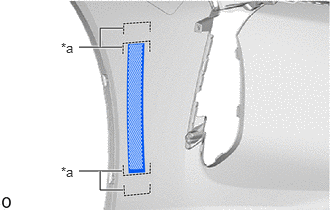

    3. Install the No. 2 moulding tape in the position shown in the illustration.
      GTY951156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      NOTE:

      Press the No. 2 moulding tape firmly to install it.

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the application tape.
  20. INSTALL NO. 1 MOULDING TAPE

    HINT:

    When installing the No. 1 moulding tape, heat the front bumper cover.

    Standard

    Item Temperature
    Front Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 1 moulding tape installation surface with a non-residue solvent.
    2. Remove the peeling paper on a new No. 1 moulding tape while making sure not to touch the adhesional surface.

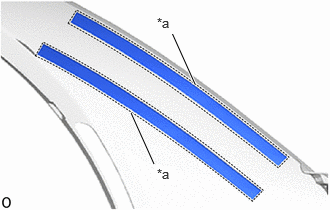

    3. Install the 2 No. 1 moulding tapes in the position shown in the illustration.
      GTY800456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      NOTE:

      Press the No. 1 moulding tape firmly to install it.

      HINT:

      Use the same procedure for the RH side and LH side.

  21. INSTALL NO. 1 FRONT BUMPER SIDE SUPPORT LH

    HINT:

    When installing the No. 1 front bumper side support LH, heat the No. 1 front bumper side support LH.

    Standard

    Item Temperature
    No. 1 Front Bumper Side Support LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the No. 1 front bumper side support LH installation surface with a non-residue solvent.
    2. Remove the peeling paper on the No. 1 moulding tape while making sure not to touch the adhesional surface.

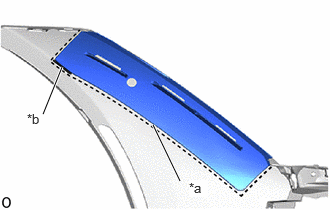

    3. Install the No. 1 front bumper side support LH in the position shown in the illustration.
      GTY809316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
      *b Rib
      NOTE:

      Press the No. 1 front bumper side support LH firmly to install it.

      HINT:

      Install the No. 1 front bumper side support LH while it is pressed against the rib.

  22. INSTALL NO. 1 FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  23. INSTALL FRONT BUMPER GARNISH LH

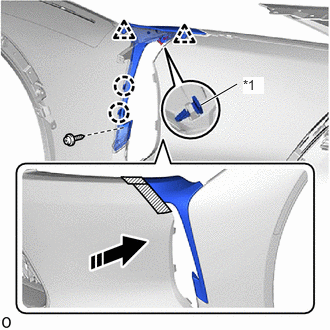

    1. Apply protective tape around the front bumper garnish LH.
      GTY783576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Bumper Side Retainer
      Install in this Direction
      Protective Tape
    2. Attach the clips and claws to install the front bumper side retainer.
    3. Install the front bumper garnish LH with the screw.
    4. Remove the protective tape.
  24. INSTALL FRONT BUMPER GARNISH

    HINT:

    Use the same procedure described for the front bumper garnish LH.

  25. INSTALL LOWER SIDE RADIATOR GRILLE LH

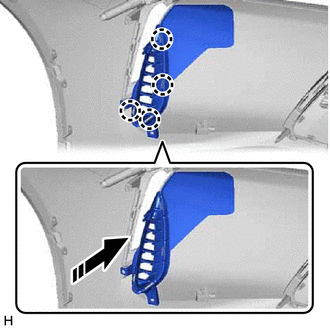

    GTY812095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the claws to install the lower side radiator grille LH as shown in the illustration.
  26. INSTALL LOWER SIDE RADIATOR GRILLE RH

    HINT:

    Use the same procedure described for the LH side.

  27. INSTALL FRONT MARKER LIGHT ASSEMBLY LH

    Refer to INSTALLATION [03/2017 - ]

  28. INSTALL FRONT MARKER LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  29. INSTALL NO. 4 ENGINE ROOM WIRE (w/o Intuitive Parking Assist System)

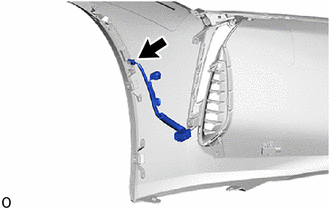

    1. Connect the connector and install the No. 4 engine room wire.
      GTY832702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH sides.

  30. INSTALL FRONT TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  31. INSTALL FRONT TURN SIGNAL LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  32. INSTALL ULTRASONIC SENSOR CLIP (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

  33. INSTALL FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  34. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  35. INSTALL FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  36. INSTALL NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

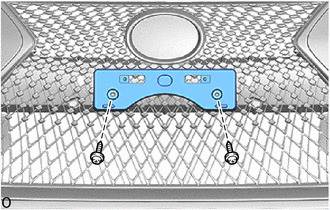

  37. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Install the front bumper extension mounting bracket with the 2 screws.
      GTY832704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

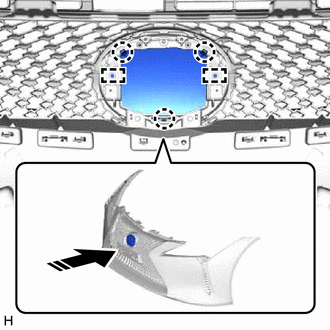

  38. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    GTY791697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the guides and claws.

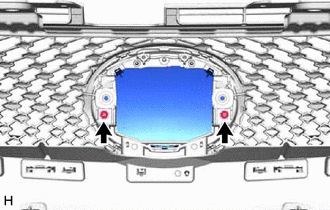

    2. Install the radiator grille (or front panel) emblem with the 2 screws.
      GTY780073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 1

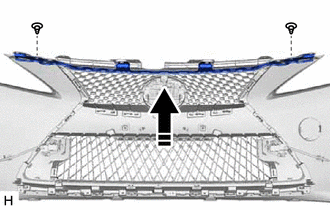

  40. INSTALL FRONT BUMPER MOUNTING BRACKET
    GTY778922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Install the front bumper mounting bracket with the 2 clips.
scientia non olet · About LEMON Manuals
