Installation [03/2017 - ]: Procedure

  1. INSTALL FRONT TURN SIGNAL LIGHT ASSEMBLY LH

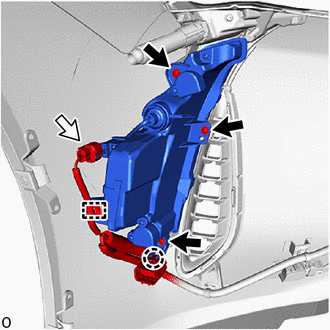

    1. Install the front turn signal light assembly LH with the 3 screws.
      GTY812057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Connect the connector and attach the wire harness clamp.
    3. Attach the claw to connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
