Installation [03/2017 - ]: Procedure

INSTALL HEADLIGHT ASSEMBLY LH

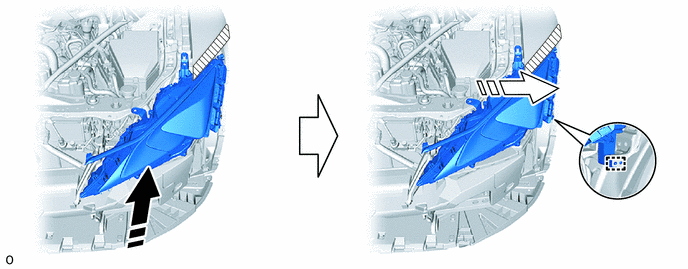

Slide the headlight assembly LH and attach the guide.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Set to the Vehicle

Slide

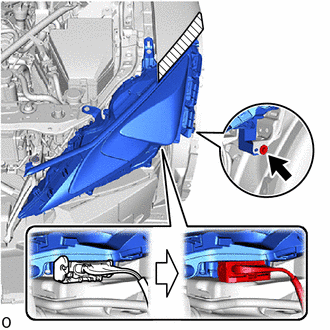

Attach the positioning pin of the headlight assembly LH bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to break the bracket.

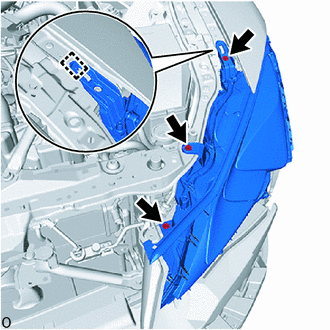

Install the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

INSTALL FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY LH

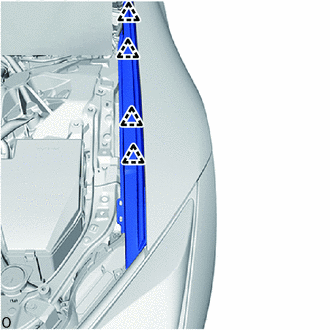

Attach the clip to set the front fender reinforcement top sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

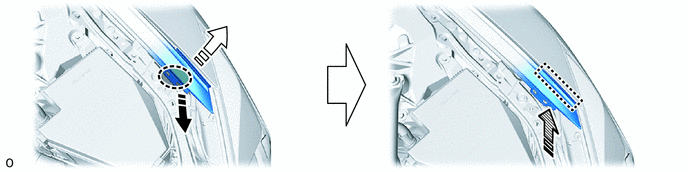

Hold the area shown in the illustration and push the rear end downwards and attach the hook toward the outside.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here		Downward
	Slide Toward Outside		Attach the hook

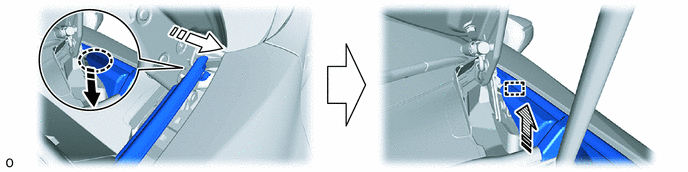

Hold the area shown in the illustration and push the front end downwards and attach the hook toward the outside.

	Place Hands Here		Downward
	Slide Toward Outside		Attach the hook

INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

PERFORM REGISTRATION (When Replacing The Headlight Assembly LH or No. 1 Headlight ECU Sub-Assembly LH)

NOTE:

If any of the work in the table below has been performed, vehicle information registration of the No. 1 headlight ECU sub-assembly LH is necessary.

Performed Work or System Condition	Necessary Procedures
Replacement of the No. 1 headlight ECU sub-assembly LH	Vehicle information registration for the No. 1 headlight ECU sub-assembly LH
Replacement of the headlight assembly LH

A new No. 1 headlight ECU sub-assembly LH cannot operate until the vehicle information is registered.
After replacing the No. 1 headlight ECU sub-assembly LH, it is necessary to register the vehicle information.
Even if the No. 1 headlight ECU sub-assembly RH is replaced with a new one, vehicle information registration is not necessary.
Vehicle information registration must be performed with the multiplex network body ECU (main body ECU) and hybrid vehicle control ECU connected via CAN communication.
