Disassembly [03/2017 - 06/2019]: Procedure
- REMOVE FRONT BUMPER MOUNTING BRACKET
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
Refer to PROCEDURE - Step 2

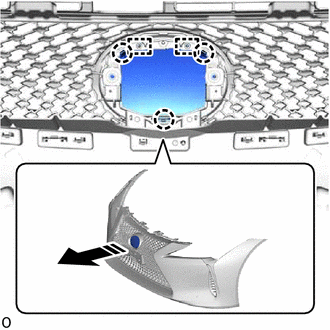

- REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
- REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
- REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 2
- REMOVE FRONT TURN SIGNAL LIGHT ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE NO. 4 ENGINE ROOM WIRE (w/o Intuitive Parking Assist System)
- REMOVE FRONT MARKER LIGHT ASSEMBLY LH
Refer to REMOVAL [03/2017 - 05/2023]
- REMOVE FRONT MARKER LIGHT ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 2
- REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 3
- REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 4
- REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 5
- REMOVE ULTRASONIC SENSOR CLIP (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 6
- REMOVE LOWER SIDE RADIATOR GRILLE LH
- REMOVE LOWER SIDE RADIATOR GRILLE RH
HINT:
Use the same procedure described for the LH side.
- REMOVE FRONT BUMPER GARNISH LH

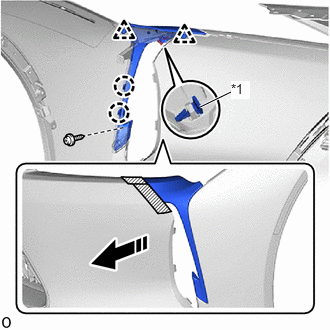

*1 Front Bumper Side Retainer Remove in this Direction Protective Tape - Apply protective tape around the front bumper garnish LH.
- Remove the screw and front bumper side retainer.

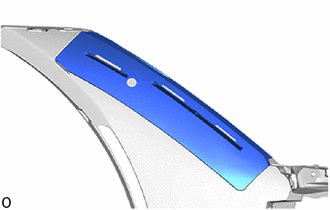

- Detach the clips and claws and remove the front bumper garnish LH.
- Remove the protective tape.
- REMOVE FRONT BUMPER GARNISH
HINT:
Use the same procedure described for the front bumper garnish LH.

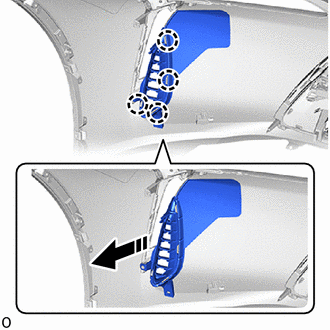

- REMOVE NO. 1 FRONT BUMPER SIDE SUPPORT LH
HINT:
When removing the No. 1 front bumper side support LH, heat the front bumper cover and No. 1 front bumper side support LH using a heat light.
Standard
Item Temperature Front Bumper Cover 20 to 30°C (68 to 86°F) No. 1 Front Bumper Side Support LH - REMOVE NO. 1 FRONT BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure described for the LH side.

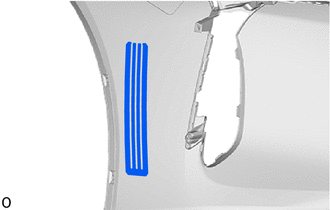

- REMOVE NO. 1 MOULDING TAPE
HINT:

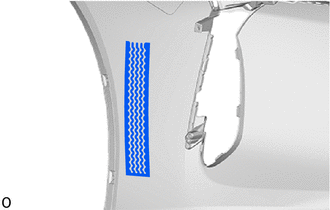

When removing the No. 1 moulding tape, heat the front bumper cover and No. 1 moulding tape using a heat light.
Standard
Item Temperature Front Bumper Cover 20 to 30°C (68 to 86°F) No. 1 Moulding Tape - REMOVE NO. 2 MOULDING TAPE
HINT:

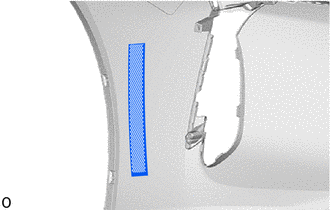

When removing the No. 2 moulding tape, heat the front bumper cover and No. 2 moulding tape using a heat light.
Standard
Item Temperature Front Bumper Cover 20 to 30°C (68 to 86°F) No. 2 Moulding Tape WARNING:- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light - for Type A:

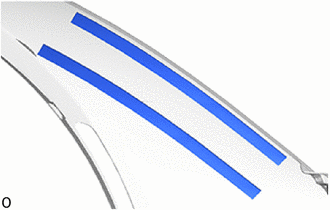

- Remove the No. 2 moulding tape.
HINT:
Use the same procedure for the RH side and LH side.
- Remove the No. 2 moulding tape.
- for Type B:
- Remove the No. 2 moulding tape.
HINT:
Use the same procedure for the RH side and LH side.
- Remove the No. 2 moulding tape.
- for Type C:
- Remove the No. 2 moulding tape.
HINT:
Use the same procedure for the RH side and LH side.
- Remove the No. 2 moulding tape.

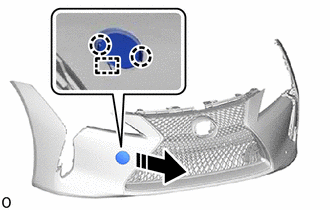

- REMOVE FRONT BUMPER HOLE COVER RH
- REMOVE FRONT FENDER LINER RETAINER

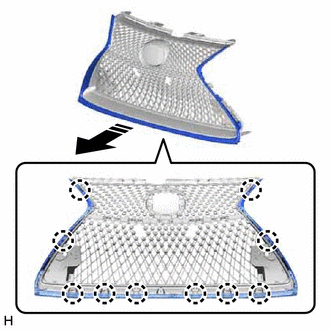

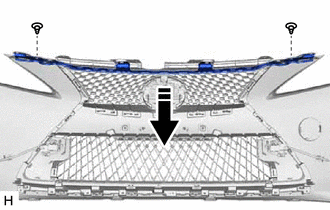

- REMOVE RADIATOR GRILLE SUB-ASSEMBLY

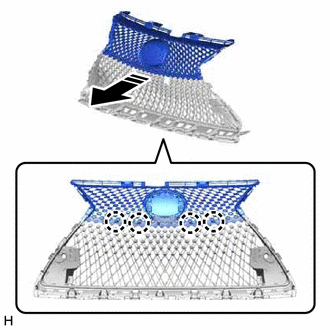

- REMOVE RADIATOR GRILLE MOULDING
- REMOVE NO. 2 RADIATOR GRILLE MOULDING

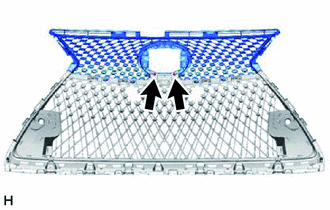

- REMOVE UPPER RADIATOR GRILLE

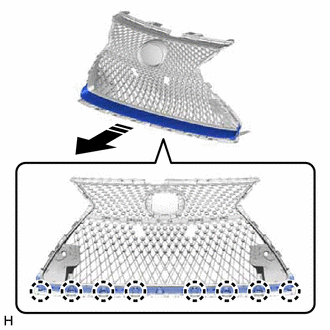

- REMOVE LOWER RADIATOR GRILLE
- REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11
- PRECAUTION WARNING:
Be sure to read precaution thoroughly before servicing.
Refer to PRECAUTION [03/2017 - 04/2020]
NOTE:After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [03/2017 - 05/2023]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
WARNING:- Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to PRECAUTION [03/2017 - 05/2023]

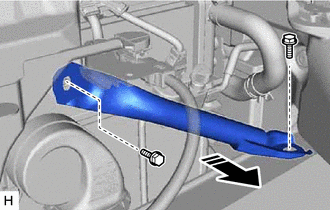

- REMOVE NO. 2 FRONT BUMPER MOUNTING BRACKET
- Check that the engine switch off.
- Check that the cable is disconnected from the negative (-) battery terminal.
- Disconnect the 2 connectors of the pedestrian detection chamber assembly.NOTE:
When disconnecting any pedestrian detection chamber assembly connector, take care not to damage the wire harness.

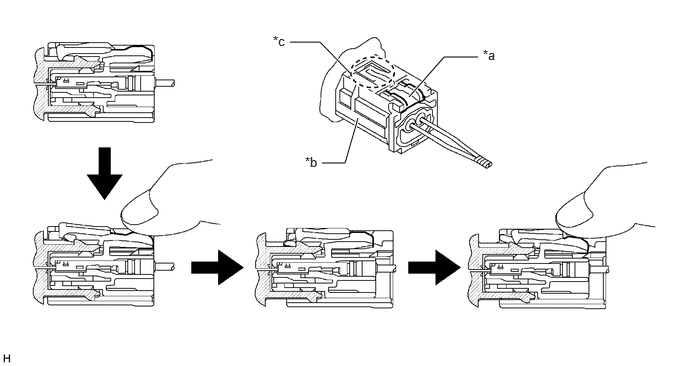

- Push down the housing lock and slide the CPA. (At this time, the connector cannot be disconnected yet.)
*a Housing Lock *b CPA *c CPA Upper Part - - - Push the housing lock again and disconnect the connector.NOTE:
Do not push down the upper part of the CPA shown in the illustration when disconnecting the pedestrian detection chamber assembly connector.
- After disconnecting the connector, check that the position of the housing lock is correct as shown in the illustration.
*a CPA *b Housing *c Correct *d Incorrect
- Push down the housing lock and slide the CPA. (At this time, the connector cannot be disconnected yet.)
- Remove the 2 bolts.
- Detach the claws and guides and remove the No. 2 front bumper mounting bracket with the front bumper energy absorber.
Remove in this Direction
- REMOVE PEDESTRIAN DETECTION CHAMBER ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE FRONT BUMPER ENERGY ABSORBER
Refer to PROCEDURE - Step 7
- REMOVE HEADLIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE HEADLIGHT ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH
Remove in this Direction - Remove the 2 bolts and lower arm bracket brace sub-assembly LH.
- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
HINT:
Use the same procedure described for the LH side.
- REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

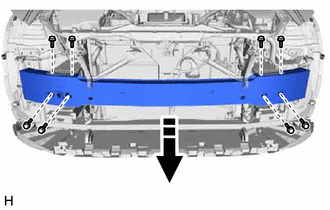

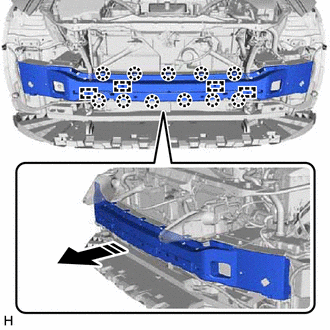

Remove in this Direction - Remove the 8 bolts and front bumper reinforcement sub-assembly.
