Removal [03/2017 - 05/2023]: Procedure

  1. REMOVE FRONT BUMPER COVER

    Refer to REMOVAL [03/2017 - 05/2023]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:

    Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

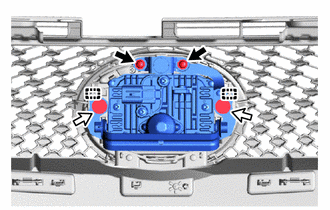

    1. Remove the 2 bolts and 2 screws.
      GTY832417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
    2. Detach the guide and remove the millimeter wave radar sensor assembly.
