Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL DISC BRAKE AIR GUIDE PLATE
    1. Install disc brake air guide plate to the steering knuckle LH.
  2. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH
    1. Using a hexagon socket wrench 12 mm, install the front axle hub sub-assembly LH with the 4 bolts.

      Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

  3. CONNECT STEERING KNUCKLE LH

    Refer to PROCEDURE - Step 5

  4. TEMPORARILY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. GTY813924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Insert the bolt from the back of the vehicle. Then temporarily tighten the lower No. 2 suspension arm assembly LH with the nut.

  5. TEMPORARILY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  6. CONNECT FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  7. CONNECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  8. TEMPORARILY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY LH
    1. GTY813913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Temporarily tighten the front lower suspension arm assembly LH to the steering knuckle assembly LH with the nut.

  9. CONNECT TIE ROD ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  10. INSTALL FRONT DISC BRAKE DUST COVER LH
    1. Install the front disc brake dust cover LH with the 3 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  11. INSPECT FRONT AXLE HUB BEARING LOOSENESS

    See step  5

  12. INSPECT FRONT AXLE HUB RUNOUT

    See step  6

  13. INSTALL FRONT DISC LH

    Refer to PROCEDURE - Step 4

  14. CONNECT DISC BRAKE CYLINDER ASSEMBLY LH

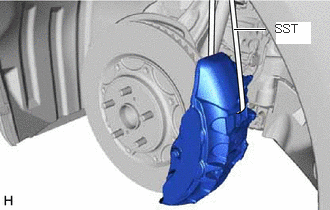

    1. GTY789807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Temporarily install the disc brake cylinder assembly LH with the bolt on the lower side of the disc brake cylinder assembly LH.

      NOTE:

      Do not apply excessive force to the flexible hose.

    2. Remove the SST.
    3. Install the disc brake cylinder assembly LH with the bolt (A) and bolt (B).

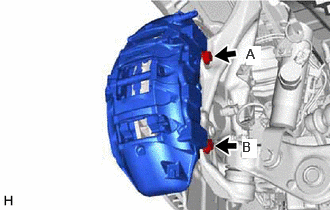

      GTY803592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

    4. Install the front flexible hose bracket LH to the steering knuckle with the bolt.
      GTY828995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    5. Connect the flexible hose to the front flexible hose bracket LH with the bolt.
      GTY782973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

    6. for RH side:
      1. GTY783009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Attach the guide to connect the pad wear indicator wire assembly.

  15. CONNECT FRONT SKID CONTROL SENSOR WIRE
    1. for LH Side:
      GTY833881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the sensor clamp with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:

        Do not twist the skid control sensor wire when installing it.

      2. Connect the skid control sensor wire connector.
    2. for RH Side:
      GTY805325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the sensor clamp with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        NOTE:

        Do not twist the skid control sensor wire when installing it.

      2. Connect the skid control sensor wire connector.
      3. Connect the pad wear indicator connector.
    3. Install the sensor clamp with the nut.

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      GTY805323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not twist the skid control sensor wire when installing it.

  16. STABILIZE SUSPENSION

    Refer to PROCEDURE - Step 9

  17. FULLY TIGHTEN LOWER NO. 2 SUSPENSION ARM ASSEMBLY LH
    1. Tighten the installation bolt of the lower No. 2 suspension arm assembly LH.

      Torque: 130 N.m (1326 kgf/cm, 96 ft.lbf)

  18. FULLY TIGHTEN FRONT LOWER SUSPENSION ARM ASSEMBLY LH
    1. Tighten the installation nut of the steering knuckle assembly LH.

      Torque: 145 N.m (1479 kgf/cm, 107 ft.lbf)

      NOTE:

      Further tighten the nut up to 60° if the holes for the clip are not aligned.

    2. Install a new clip.
  19. FULLY TIGHTEN FRONT SHOCK ABSORBER ASSEMBLY LH
    1. Fully tighten the front shock absorber assembly bolt.

      Torque: 110 N.m (1122 kgf/cm, 81 ft.lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  20. INSTALL REAR LOWER ARM MOUNTING REINFORCEMENT SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  21. INSTALL ENGINE SIDE COVER LH

    Refer to PROCEDURE - Step 15

  22. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 138

  23. INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 139

  24. INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 140

  25. INSTALL FRONT FENDER SEAL LH

    Refer to PROCEDURE - Step 22

  26. INSTALL FRONT FENDER SEAL RH

    Refer to PROCEDURE - Step 21

  27. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 143

  28. INSTALL FRONT WHEEL

    Refer to INSTALLATION [07/2020 - 05/2023]

  29. CONNECT BRAKE BOOSTER PUMP CONNECTOR

    Refer to PROCEDURE - Step 6

  30. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [07/2020 - 05/2023]

  31. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [07/2020 - 05/2023]

  32. ADJUST HEADLIGHT AIMING

    Refer to ADJUSTMENT [07/2020 - ]

  33. ADJUST REAR TELEVISION CAMERA ASSEMBLY OPTICAL AXIS

    Refer to CALIBRATION [07/2020 - 05/2023]
