Installation [07/2020 - 05/2023]: Procedure

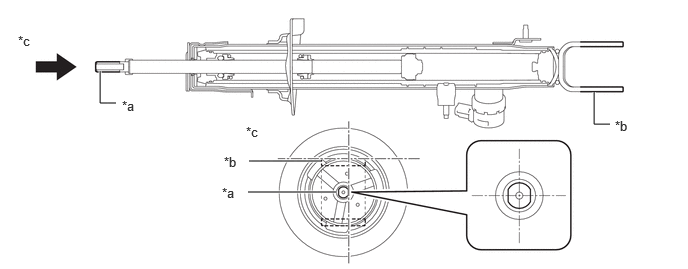

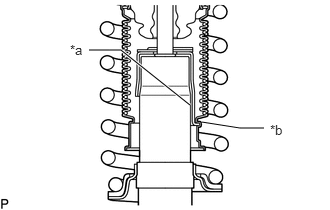

1. Align the cutout on end of the shock rod of the front shock absorber assembly LH with the installation position.
   NOTE:

   Be sure to install the part so that the cutout on the front suspension support sub-assembly LH and the cutout on the shock rod end are aligned.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cutout	*b	Bottom End Mount
   *c	Viewpoint A	-	-

2. Install SST (09727-58100) and SST (09727-58120) to the front shock absorber assembly LH.
   • SST: 09727-58100
   • SST: 09727-58120
   • SST: 09727-58010
     1. 09727-58020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Shock Absorber Assembly LH	*2	Shock Absorber Outer Shell
   *a	Turn	*b	Hold
   *c	Fixing Nut	*d	Bolt

   NOTE:

   Apply molybdenum grease to the bolt (area with diagonal lines) of SST (09727-58010).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Application Area

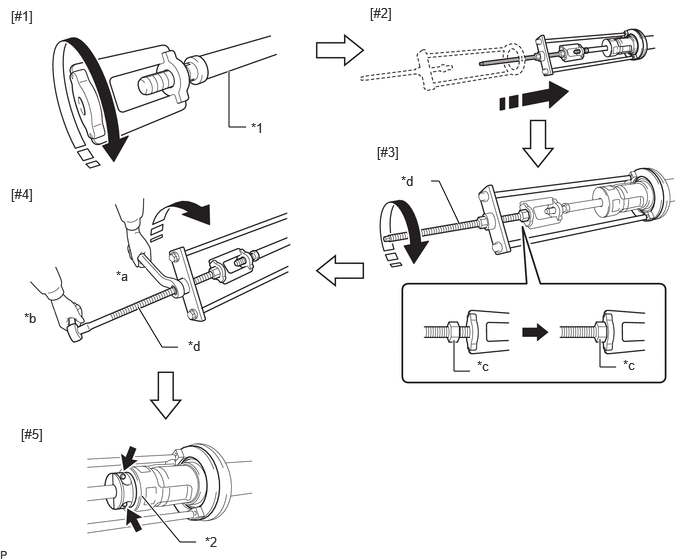

   1. Install SST (09727-58020) to the end of the shock rod of the front shock absorber assembly LH.[#1]
   2. Install SST (09727-58010) to the front shock absorber assembly LH.[#2]
      NOTE:

      Take due care when installing SST (09727-58010) to ensure the shock rod is not damaged.

   3. Secure the SST (09727-58010) bolt and SST (09727-58020) with the fixing nut.[#3]
   4. After securing the SST (09727-58010) bolt, rotate the nut clockwise.[#4]

      HINT:

      Extend the shock rod to its maximum length to install SST (09727-58100) and SST (09727-58120).

   5. Using a piece of cloth, etc., clean the shock rod and remove any foreign matter and oil.
      NOTE:

      Thoroughly clean the shock rod to prevent damage to the shock rod due to contact of foreign matter.

   6. Clean the surface of SST (09727-58120) to which the front shock absorber assembly LH is installed and remove any foreign matter and oil.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Installation Surface

      NOTE:

      Thoroughly clean the installation surface to prevent damage to the shock rod due to contact of foreign matter.

   7. Using a long ball hexagon 5, install SST (09727-58100) and SST (09727-58120) to the shock rod.[#5]
      NOTE:

      Before installing, check the position of the cutout on end of the shock rod.

      HINT:

      Install SST (09727-58100) and SST (09727-58120) to the base of the shock rod and check that SST (09727-58100) and SST (09727-58120) are securing the shock rod.

   8. After securing the SST (09727-58010) bolt, rotate the nut counterclockwise.
   9. Check that the shock rod and SST (09727-58020) have become free before releasing the fixing nut and removing SST (09727-58010) from the shock rod.
      NOTE:

      Take due care when removing SST (09727-58010) to ensure the shock rod is not damaged.

   10. Remove SST (09727-58020) from the end of the shock rod.
   11. Using a piece of cloth, etc., clean the end of the shock rod threads and remove any foreign matter and oil.
3. Install the front lower coil spring insulator to the front shock absorber assembly LH.
   NOTE:

   When installing the front lower coil spring insulator, fit the insulator to the depression of the spring seat.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Depression

4. Secure SST in a vise.
   • SST: 09727-30022

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Attach the hooks of each SST arm across the diameter of the coil spring.
   WARNING:

   • Do not perform the work without checking to make sure that the claws of the hooks are securely engaged.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *a	Front Coil Spring Diameter

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
   • Do not install SST to the front coil spring unless its top and bottom hook distance is set to the widest condition.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
   • Do not install SST when the distances between the SST arms or the number of coils of the coil spring between the hooks are not the same.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
6. Install the stopper pins to the hooks of SST.
   WARNING:

   • Do not perform the work if the stopper pin is not securely installed.
   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

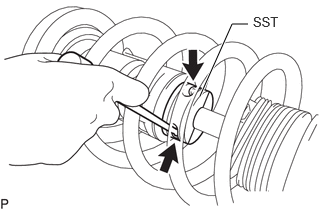

7. Using SST, compress the coil spring.
   WARNING:

   • While compressing the spring, if the front coil spring starts to bend into a bow shape, do not continue the work.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
   • Do not compress the springs so far that the coils of the springs touch each other.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
   • Do not use an impact wrench.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • The threads may be stripped, or the sudden compression may result in slack that causes the hooks to slip off, causing the spring to fly out and possibly resulting in injury.
   • If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If a stopper pin is removed, install SST as shown in the illustration.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • SST: 09727-00110

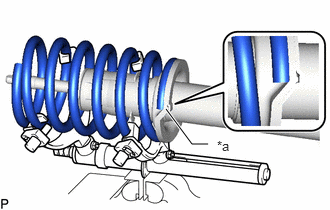

8. Install the front coil spring to the front shock absorber assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Depression

   NOTE:

   Make sure that the end of the front coil spring is positioned in the depression of the front lower spring seat.

9. Install the front spring bumper to the front suspension support assembly.
10. Install the front upper coil spring insulator to the front suspension support assembly as shown in the illustration.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

11. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Install the front suspension support assembly to the front shock absorber assembly LH.

    NOTE:

    Match the shape of the front shock absorber assembly support ring end to the shape of the front suspension support assembly.

12. Temporarily tighten a new lock nut.
13. Adjust the front suspension support assembly so that the bolts come to the positions as shown in the illustration, and remove SST from the front coil spring.
    NOTE:

    • Do not use an impact wrench. It will damage SST.
    • Make sure that the width across flat on the front shock absorber piston rod end is located parallel to the front shock absorber bushing.
    • Make sure of the direction of the front suspension support assembly when removing SST.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *A	for LH Side
    *B	for RH Side
    *a	Identification Mark
    *b	120°
    *c	10.5°+/-2°
    	Front of the Vehicle

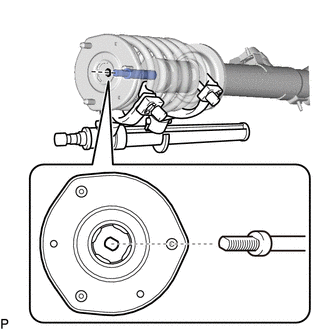

14. Using a long ball hexagon 5, install SST (09727-58100) and SST (09727-58120) to the shock rod.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE:

    • Thoroughly remove SST (09727-58100) and SST (09727-58120).
    • When installing SST (09727-58100) and SST (09727-58130), do not fold back the No. 1 front shock absorber dust cover LH in an improper direction and deform it.

15. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a	Cloth, etc.
    *b	Shock Rod

    Using a piece of cloth, etc., clean the shock rod and remove any foreign matter and oil.

    NOTE:

    Thoroughly clean the shock rod to prevent damage to the shock rod due to contact of foreign matter.

16. Turn the front suspension support assembly 120° or more to engage the end of the front upper coil spring insulator to the front shock absorber assembly LH claws.
    NOTE:

    • Make sure that the end of the front upper coil spring insulator is engaged securely to the 4 front shock absorber assembly LH claws.
    • Be careful not to deform the bellows of the front upper coil spring insulator.
    • Keep the front upper coil spring insulator free of oil and grease.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a	Front Shock Absorber Assembly LH Claw
    *b	End of Front Upper Coil Spring Insulator

1. Temporarily tighten the front shock absorber with coil spring (upper side) with the 3 nuts.
2. Temporarily tighten the front shock absorber with coil spring (lower side) to the front lower suspension arm assembly with the bolt and nut.
   NOTE:

   • Insert the bolt from the rear of the vehicle.
   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   HINT:

   Fully tighten the bolt after stabilizing the suspension.

See step  5

Refer to PROCEDURE - Step 6

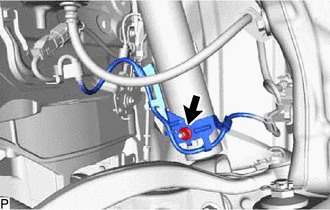

1. Install the front skid control sensor wire LH with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

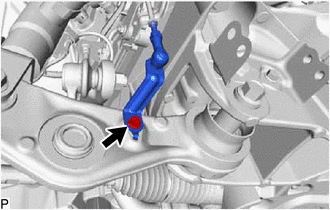

1. Install the front height control sensor sub-assembly LH with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

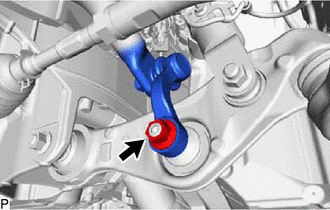

1. Install the front stabilizer link assembly LH with the nut.

   HINT:

   If the ball joint turns together with the nut, use a 8 mm hexagon wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 125 N.m (1275 kgf/cm, 92 ft.lbf)

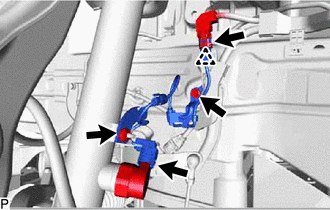

1. Connect the clamp and 2 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the absorber control wire with the bolt and nut.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

1. Install the front wheel.
2. Lower the vehicle and bounce it up and down several times to stabilize the front suspension.
3. Remove the front wheel.

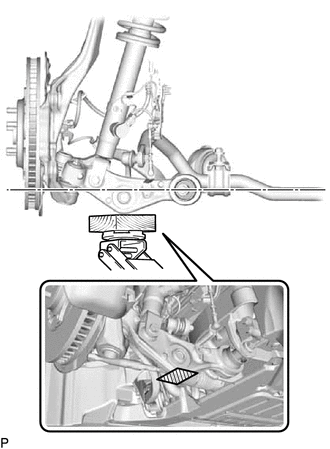

4. Jack up the front lower suspension arm assembly, and place a wooden block under it to avoid damage. Apply load to the suspension so that the front lower suspension arm assembly is placed in a horizontal position.
   WARNING:

   Do not jack up the front lower suspension arm assembly too high as the vehicle may fall.

   NOTE:

   • When jacking up the front lower suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front shock absorber with coil spring (upper side) with the 3 nuts.

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

2. Fully tighten the front shock absorber with coil spring bolt.

   Torque: 110 N.m (1122 kgf/cm, 81 ft.lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

3. Fully tighten the lock nut.

   Torque: 27.5 N.m (280 kgf/cm, 20 ft.lbf)

   NOTE:

   Perform this step only when the front shock absorber with coil spring has been disassembled.

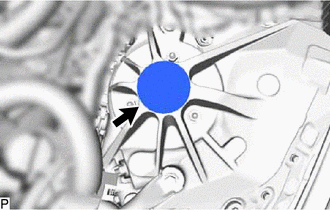

1. Install the front shock absorber cap LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [07/2020 - 05/2023]

Refer to PROCEDURE - Step 6

Refer to ADJUSTMENT [07/2020 - 05/2023]

Refer to ADJUSTMENT [07/2020 - ]

Refer to CALIBRATION [07/2020 - 05/2023]
