Installation [07/2020 - ]: Procedure

  1. INSTALL EXHAUST PIPE GAS CONTROL ACTUATOR SUB-ASSEMBLY
    1. New article:
      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.

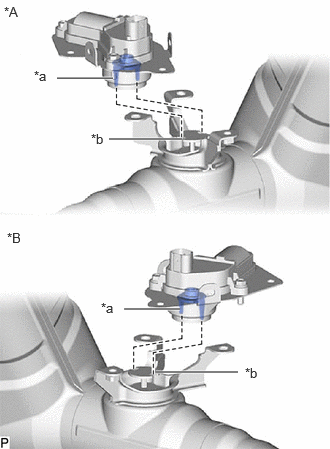

        GTY947527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate
      2. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

    2. Reuse:
      1. Align the joint of the exhaust pipe gas control actuator sub-assembly with the valve plate of the exhaust tailpipe assembly as shown in the illustration.

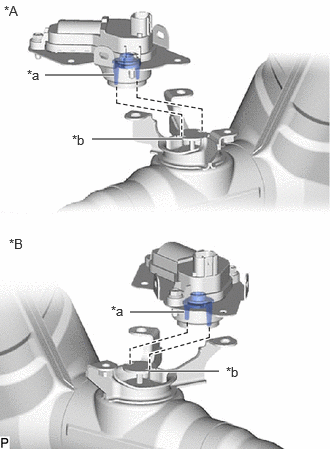

        GTY947275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
        *a Joint
        *b Valve Plate
      2. Turn the exhaust pipe gas control actuator sub-assembly as shown in the illustration.

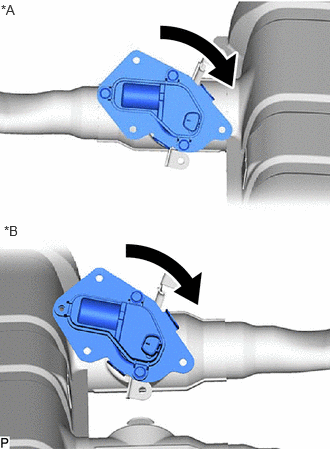

        GTY948099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for RH Side
        *B for LH Side
      3. Install the 2 exhaust pipe gas control actuator sub-assemblies with the 6 bolts and 4 nuts.

        Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

        NOTE:

        Install the same parts to their original positions.

  2. INSTALL EXHAUST TAILPIPE ASSEMBLY
    1. Install the 6 exhaust pipe supports to the exhaust tailpipe assembly as shown in the illustration.

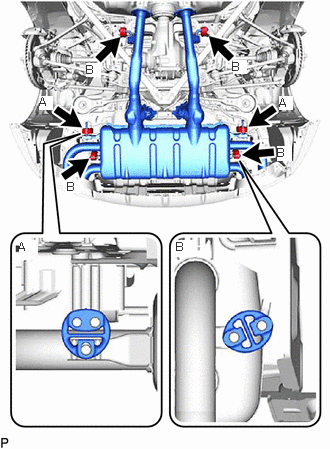

      GTY947799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clamp and connect the 2 connectors as shown in the illustration.

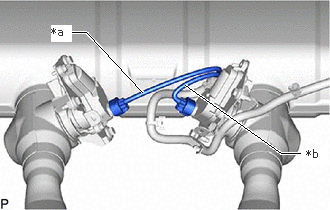

      GTY947636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Black
      *b White
  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY
    1. Install 2 new gaskets to the front exhaust pipe assembly of the rear side.

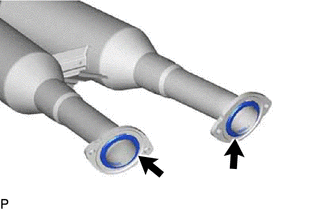

      GTY818612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 new gaskets to the exhaust manifold sub-assembly RH and exhaust manifold sub-assembly LH.

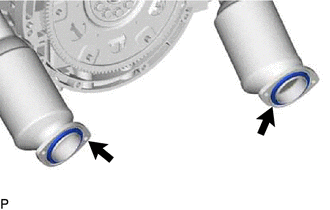

      GTY818611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front exhaust pipe assembly to the exhaust tailpipe assembly with 4 new nuts and 4 new bolts.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      Do not reuse the bolt, nut and gasket.

    4. Install the front exhaust pipe assembly to the exhaust manifold sub-assembly RH and exhaust manifold sub-assembly LH with 4 new nuts and 4 new bolts.

      Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

      NOTE:

      Do not reuse the bolt, nut and gasket.

  4. INSTALL REAR NO. 4 BUMPER SIDE SUPPORT RH
    1. Attach the grommet and install the rear No. 4 bumper side support RH with the 2 screws and 2 clips.

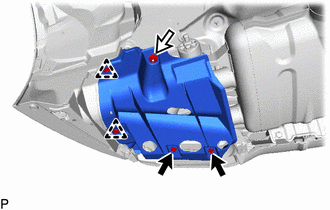

      GTY948067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Grommet
  5. INSTALL REAR NO. 4 BUMPER SIDE SUPPORT LH
    1. Attach the grommet and install the rear No. 4 bumper side support LH with the 2 screws and 2 clips.

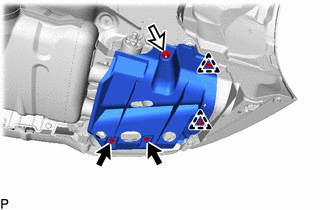

      GTY947639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Grommet
  6. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR
    1. Install the No. 1 differential support protector with the 3 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

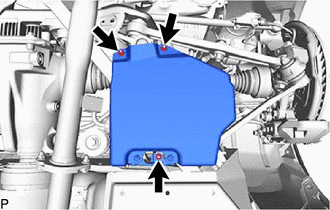

      GTY947306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
    1. Install the No. 2 differential support protector with the 3 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY947514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT CENTER FLOOR BRACE SUB-ASSEMBLY
    1. Install the front center floor brace sub-assembly with the 12 bolts.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

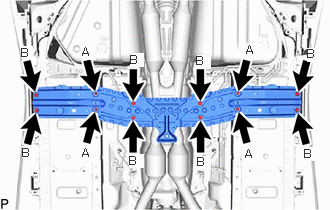

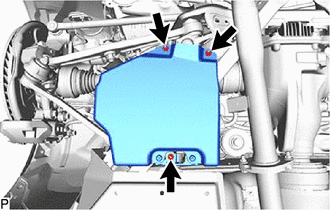

      GTY947428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt Length

      Item Length
      Bolt A 21 mm (0.827 in.)
      Bolt B 44 mm (1.73 in.)
  9. INSTALL FRONT NO. 1 FLOOR CROSS BRACE RH
    1. Install the front No. 1 floor cross brace RH with the 2 bolts and nut.

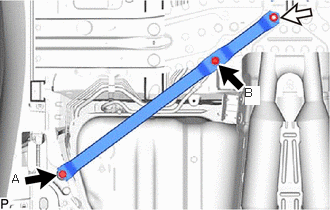

      GTY947480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      for bolt A

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

      for bolt B

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      for nut

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

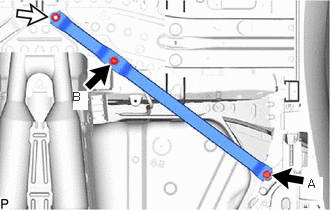

  10. INSTALL FRONT NO. 1 FLOOR CROSS BRACE LH
    1. Install the front No. 1 floor cross brace LH with the 2 bolts and nut.
      GTY947934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      for bolt A

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

      for bolt B

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      for nut

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

  11. INSTALL BODY SUPPORT BRACKET SUB-ASSEMBLY RH
    1. Install the body support bracket sub-assembly RH with the 2 bolts and nut.

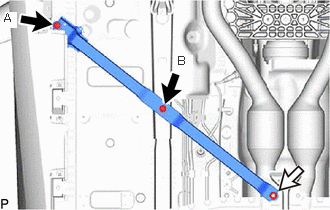

      GTY947322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      for bolt A

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

      for bolt B

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      for nut

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

    2. Attach the 2 claws and close the service hole cover of the body rocker panel moulding assembly RH.

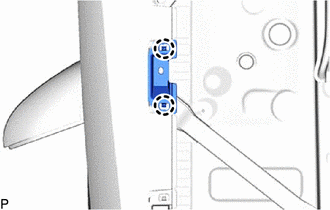

      GTY947533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the engine mounting member plate with the 2 bolts.

      Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

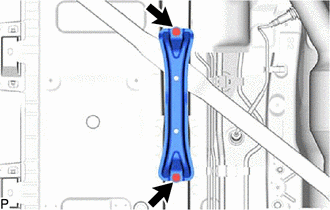

      GTY947311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL BODY SUPPORT BRACKET SUB-ASSEMBLY LH
    1. Install the body support bracket sub-assembly LH with the 2 bolts and nut.

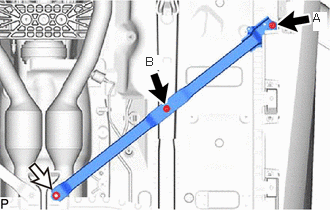

      GTY948205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      for bolt A

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

      for bolt B

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      for nut

      Torque: 71 N.m (724 kgf/cm, 52 ft.lbf)

    2. Attach the 2 claws and close the service hole cover of the body rocker panel moulding assembly LH.

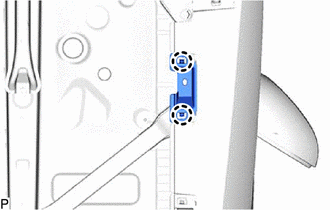

      GTY947310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the engine mounting member plate with the 2 bolts.

      Torque: 14 N.m (143 kgf/cm, 10 ft.lbf)

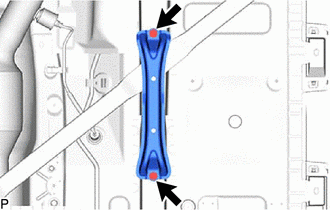

      GTY947528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 1

  14. INSTALL HEATED OXYGEN SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 2

  15. CONNECT HEATED OXYGEN SENSOR

    Refer to PROCEDURE - Step 3

  16. INSTALL FRONT SEAT ASSEMBLY

    Refer to INSTALLATION [07/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  17. INSTALL REAR FLOOR SIDE MEMBER COVER RH
    1. Install the rear floor side member cover RH with the screw, nut, 3 clips and plate washer.

      for nut

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

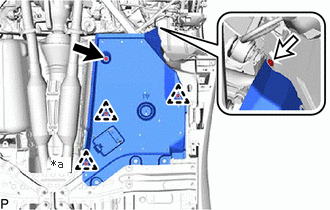

      GTY947623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Screw
      *a Clip and Plate Washer
  18. INSTALL REAR FLOOR SIDE MEMBER COVER LH
    1. Install the rear floor side member cover LH with the screw, nut, 3 clips and plate washer.

      for nut

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

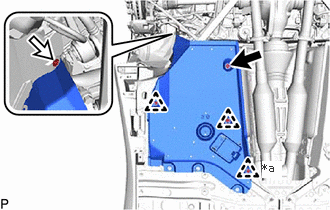

      GTY948302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Screw
      *a Clip and Plate Washer
  19. INSTALL FRONT FLOOR COVER RH
    1. Attach the 3 grommets and nut and temporarily install the front floor cover RH.

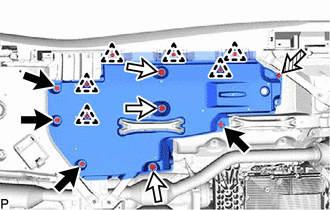

      GTY947648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Grommet
      Nut
    2. Install the front floor cover RH with the 6 clips and 4 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  20. INSTALL FRONT FLOOR COVER LH
    1. Attach the 3 grommets and nut and temporarily install the front floor cover LH.

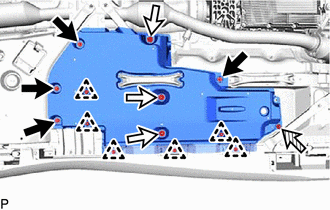

      GTY947505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Grommet
      Nut
    2. Install the front floor cover LH with the 6 clips and 4 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  21. INSTALL FRONT FENDER SEAL RH
    1. Attach the grommet and install the front fender seal RH with the 4 clips and 4 plate washers.

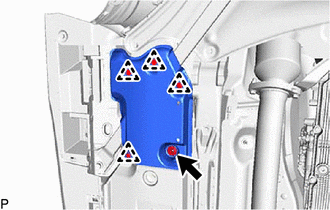

      GTY947920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Grommet
  22. INSTALL FRONT FENDER SEAL LH
    1. Attach the grommet and install the front fender seal LH with the 4 clips and 4 plate washers.

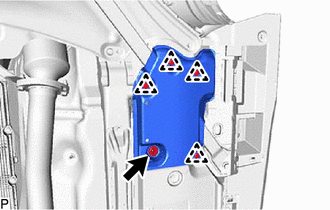

      GTY947539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Grommet
  23. INSPECT FOR EXHAUST GAS LEAK

    If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

    If an exhaust gas leak has been repaired, perform an inspection following the repair.

    Refer to INITIALIZATION [07/2020 - ]
