Reassembly [07/2020 - ]: Procedure

  1. INSTALL GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

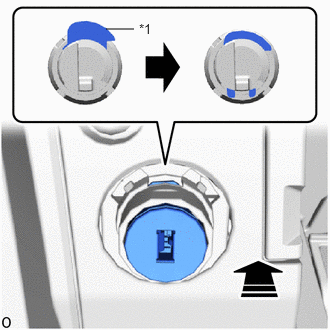

    1. GTY808861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Lock
      Install in this Direction

      With the cylinder lock pressed, insert the glove compartment door lock cylinder assembly into the glove compartment door assembly to install it as shown in the illustration.

  2. INSTALL GLOVE COMPARTMENT DOOR LOCK COVER
    1. Attach the claw to install a new glove compartment door lock cover.

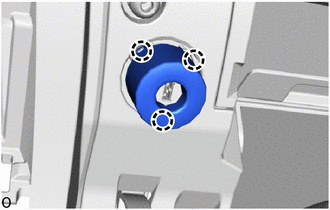

      GTY824449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH

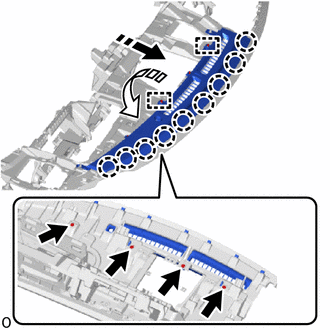

    1. GTY824784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

      Align the guide and attach the claw in the direction indicated by the arrow shown in the illustration.

    2. Install the No. 1 defroster nozzle garnish with the 4 screws.
  4. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Attach the claw.

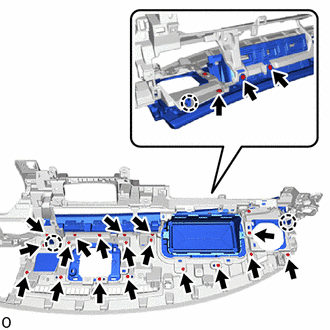

      GTY951398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the upper instrument panel finish panel sub-assembly with the 21 screws.
  5. INSTALL NO. 2 INSTRUMENT PANEL WIRE

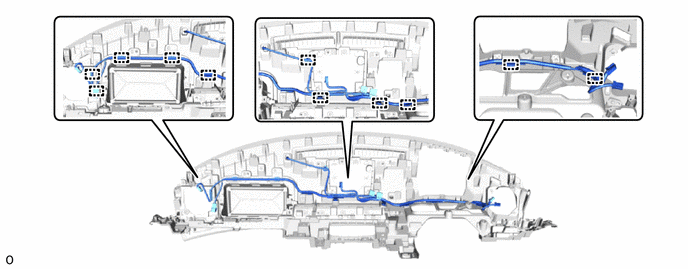

    1. Attach the clamp to install the No. 2 instrument panel wire.
      GTY838295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 INSTRUMENT PANEL PIN
    1. Insert the guide in direction indicated by the arrow shown in the illustration.

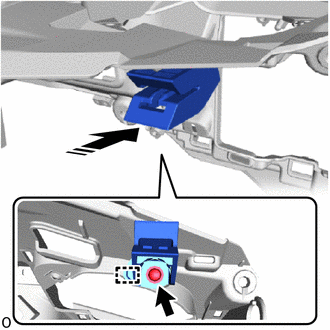

      GTY794603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 1 instrument panel pin with the screw.

      HINT:

      Use the same procedure to install the No. 1 instrument panel pin on the other side.

  7. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. Insert the guide.

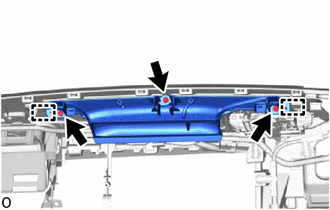

      GTY949479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>
    2. Install the defroster nozzle assembly with the 3 screws <E> or <G>.
  8. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY MAIN

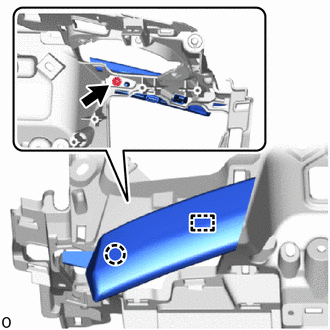

    1. Insert the guide and attach the claw to install the instrument panel sub-assembly main.
      GTY825290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  9. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

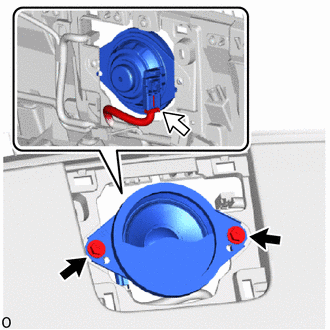

    1. Connect the connector.
      GTY829397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Install the front No. 2 speaker assembly with the 2 screws.
      NOTE:

      Do not touch the cone part of the front No. 2 speaker assembly.

  10. INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY
    1. Attach the claw to install the No. 1 speaker opening cover assembly.

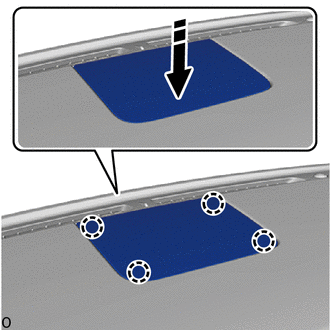

      GTY949380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Insert the guide to install the No. 1 instrument panel register assembly with the 4 screws <G>.

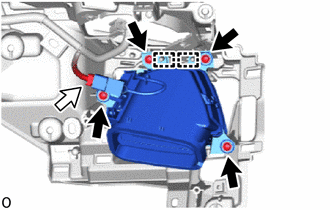

      GTY949471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <G>
      Connector
  12. INSTALL NO. 1 HEATER TO REGISTER DUCT

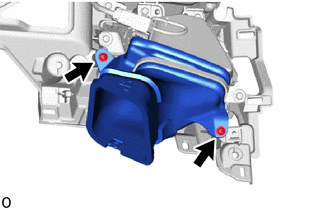

    1. Install the No. 1 heater to register duct with the 2 screws <E> or <G>.
      GTY949431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>
  13. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

    Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

  14. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  15. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

  16. INSTALL NO. 3 HEATER TO REGISTER DUCT
    1. Attach the guide to install the No. 3 heater to register duct with the 3 screws <E> or <G>.

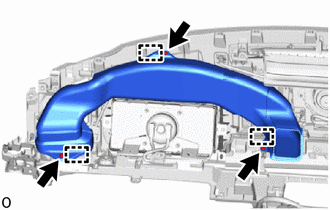

      GTY949413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <E> or <G>
  17. INSTALL ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
