Installation [05/2023 - ]: Procedure

  1. INSTALL NO. 3 INSTRUMENT PANEL WIRE

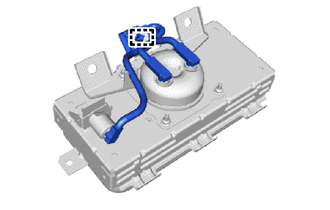

    1. Attach the wire harness clamp and install the No. 3 instrument panel wire.
      GTY953357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 airbag connectors.
      NOTE:
      • When connecting any airbag connector, take care not to damage the airbag wire harness.
      • Be sure to connect the connectors to each corresponding color.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector:

      Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [05/2023 - ]

  2. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    1. GTY813686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the hook.

    2. Push in the instrument panel passenger airbag assembly to attach the hook.
    3. Install the instrument panel passenger airbag assembly with the 2 screws.
      GTY835729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 16

  4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to INSTALLATION [05/2023 - ]

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [05/2023 - ]

  6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [05/2023 - ]

  7. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [07/2020 - ]

  8. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [07/2020 - ]
