Installation [05/2023 - ]: Procedure

INSTALL NAVIGATION ANTENNA ASSEMBLY

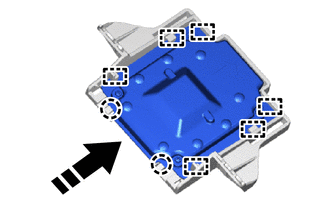

Attach the guide and claw to install the navigation antenna assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

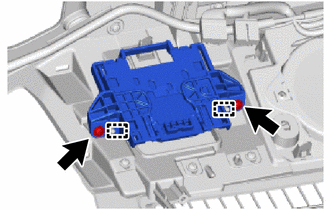

Attach the guide to temporarily install the navigation antenna assembly with bracket.

Connect the connector to attach the claw.

INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to INSTALLATION [05/2023 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [05/2023 - ]
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [05/2023 - ]
DTC CHECK
Refer to DTC CHECK / CLEAR [07/2020 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [07/2020 - ]
INSPECT AUTOMATIC LIGHT CONTROL SYSTEM
Refer to OPERATION CHECK [05/2023 - ]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to CUSTOMIZE PARAMETERS [07/2020 - ]
CHECK STEERING WHEEL CENTER POINT
