Removal [10/2017 - ]: Procedure

Refer to PROCEDURE - Step 16 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 16 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 16 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 16 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

Refer to PROCEDURE - Step 18 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 18 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 18 [10/2023 - ]

Refer to PROCEDURE - Step 37 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 37 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 40 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 40 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 39 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 39 [10/2023 - ]

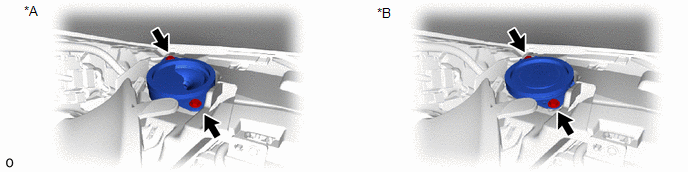

1. for LH Side:
   1. Remove the 2 screws.
   2. Disconnect the connector and remove the front No. 2 speaker assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A

      for 12 Speakers

      *B

      for 24 Speakers

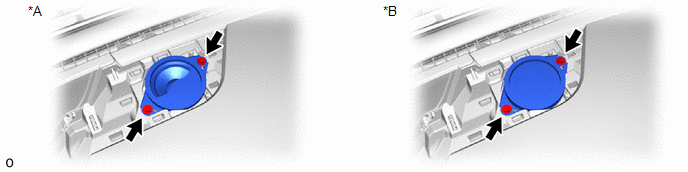

2. for RH Side:
   1. Remove the 2 screws.
   2. Disconnect the connector and remove the front No. 2 speaker assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A

      for 12 Speakers

      *B

      for 24 Speakers

Refer to PROCEDURE - Step 39 [10/2017 - 09/2018] , or refer to PROCEDURE - Step 39 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 42 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 42 [11/2021 - 10/2022] , or refer to PROCEDURE - Step 41 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 41 [10/2023 - ]

1. Remove the 2 screws.
2. Disconnect the connector and remove the front No. 3 speaker assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   for 12 Speakers

   *B

   for 24 Speakers
