Removal [10/2015 - ]: Procedure

Refer to PROCEDURE - Step 1 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 1 [09/2017 - ]

1. Disengage the clips to remove the front pillar to front side seal sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 15 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 15 [09/2017 - ]

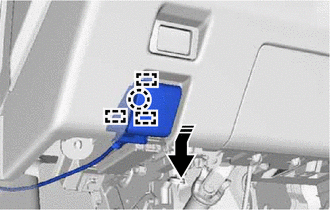

1. Disengage the guides and claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Remove the hood lock control lever sub-assembly from the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 3

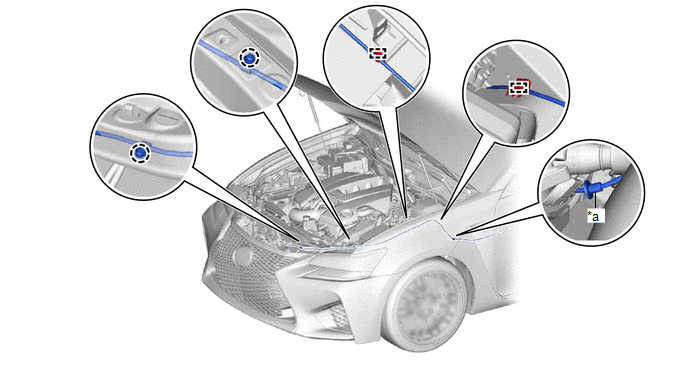

1. Tie the string to the end of the hood lock control cable assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   String

   HINT:

   Use a length of string long enough to pass through the engine compartment.

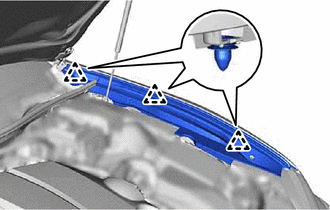

2. Disengage the clamps, claws and stopper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   -

   -

3. Pull out the hood lock control cable assembly from the vehicle body to remove it.
4. Remove the string from the hood lock control cable assembly.
