Home >> Lexus >> 2019 >> GS F >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim - Service Information >> Instrument Panel Safety Pad >> Removal [10/2015 - 09/2017] >> Procedure

Removal [10/2015 - 09/2017]: Procedure

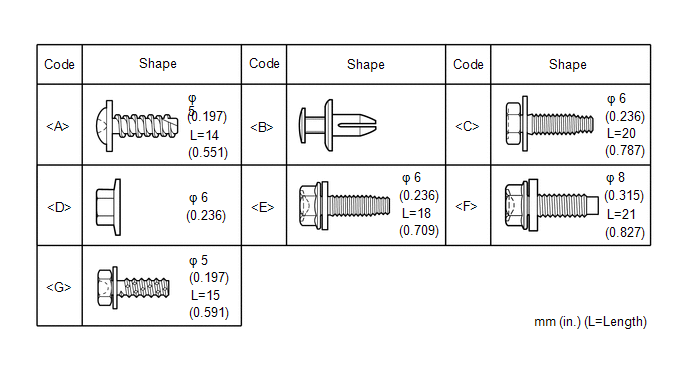

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts and screws relevant to installing and removing the instrument panel are shown along with their alphabetic code in the table below.

    GTY647877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  4. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS

    Refer to CUSTOMIZE PARAMETERS [10/2015 - ]

  5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [10/2015 - ]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017]

  6. REMOVE FRONT CONSOLE BOX

    Refer to REMOVAL [10/2015 - ]

  7. REMOVE FRONT DOOR SCUFF PLATE LH

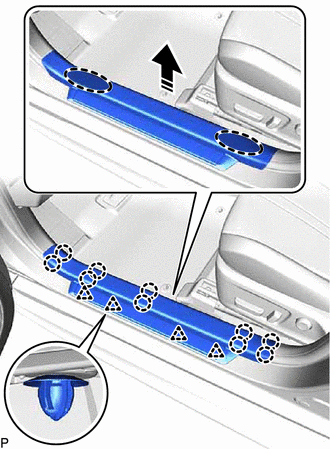

    1. Disengage the claws and clips to remove the front door scuff plate LH as shown in the illustration.
      GTY644017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction
  8. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FRONT DOOR OPENING TRIM COVER LH

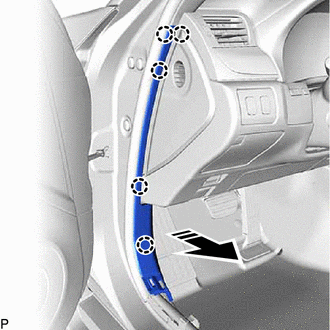

    1. Disengage the claws to remove the front door opening trim cover LH as shown in the illustration.
      GTY661203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE FRONT PILLAR GARNISH LH

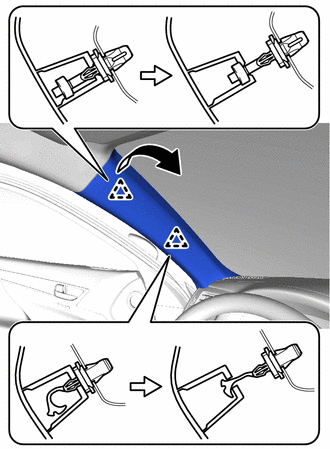

    1. Pull up the front pillar garnish to disengage the clips as shown in the illustration.
      GTY677446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull up

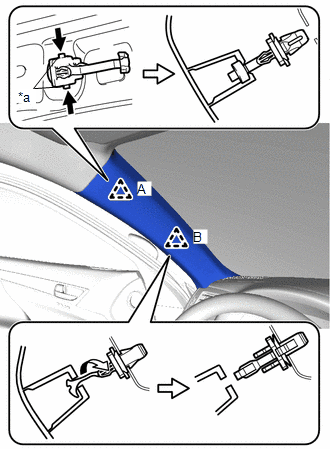

    2. Push the release lever and separate the front pillar garnish clip A from the vehicle body as shown in the illustration.
      GTY642924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Lever
      Push
      Turn
      NOTE:

      If the front pillar garnish clip has significant damage, replace it with a new one.

    3. Turn the front pillar garnish clip B clockwise 90° and separate it from the front pillar garnish LH as shown in the illustration.
      NOTE:

      If the front pillar garnish clip has significant damage, replace it with a new one.

    4. Disengage the guide to remove the front pillar garnish LH as shown in the illustration.
      GTY647958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

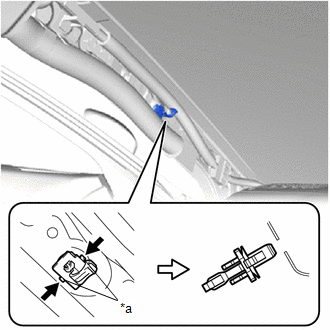

    5. Push the release lever to remove the front pillar garnish clip from the vehicle body as shown in the illustration.
      GTY665176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Lever
      Push

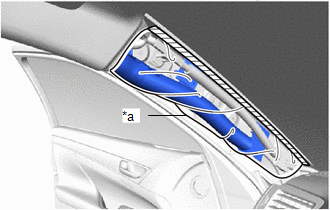

    6. Protect the curtain shield airbag assembly.
      GTY631098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Cover
      Adhesive Tape
      1. Completely cover the curtain shield airbag assembly with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish LH is removed.

  12. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE INSTRUMENT SIDE PANEL LH

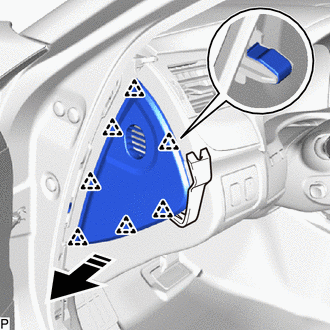

    1. Using a moulding remover B, disengage the clips to remove the instrument side panel LH as shown in the illustration.
      GTY625162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
    1. Using a moulding remover B, disengage the clips to remove the No. 1 instrument panel garnish sub-assembly as shown in the illustration.
      GTY661760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  15. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

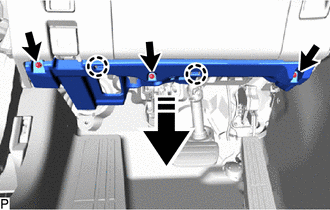

    1. Remove the 3 screws <A>.
      GTY613236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the No. 1 instrument panel under cover sub-assembly as shown in the illustration.
    3. Disconnect the connector.
  16. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

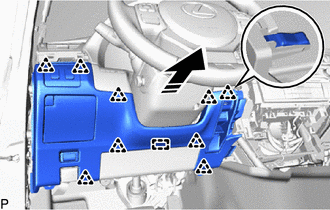

    1. Disengage the clips and guide to remove the No. 1 instrument panel safety pad sub-assembly as shown in the illustration.
      GTY675335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connectors.
  17. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 9

  18. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

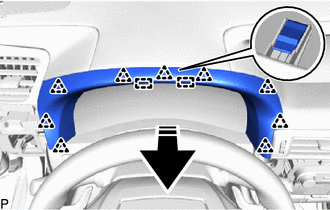

    1. Disengage the clips and guides to remove the instrument cluster finish panel assembly as shown in the illustration.
      GTY641361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

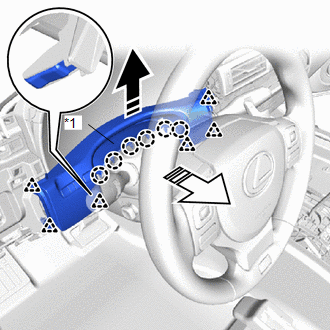

    1. Pull in the direction indicated by the arrow (1) in the illustration, disengage the claws to separate the meter hood spacer.
      GTY654394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Meter Hood Spacer
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull in the direction indicated by the arrow (2) in the illustration, disengage the clips to remove the instrument cluster finish panel sub-assembly.
    3. Disconnect the connectors.
  20. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017]

  21. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 7

  22. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

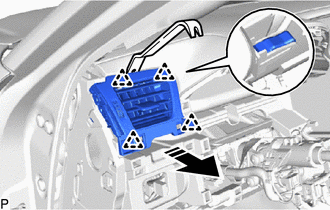

    1. Using a moulding remover B, disengage the clips to remove the No. 1 instrument panel register assembly as shown in the illustration.
      GTY629035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector.
  23. REMOVE INSTRUMENT SIDE PANEL RH

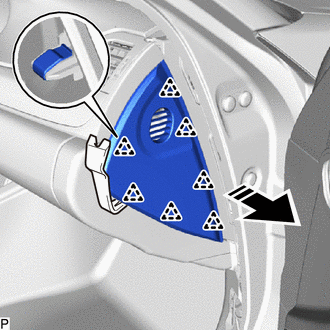

    1. Using a moulding remover B, disengage the clips to remove the instrument side panel RH as shown in the illustration.
      GTY645808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  24. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

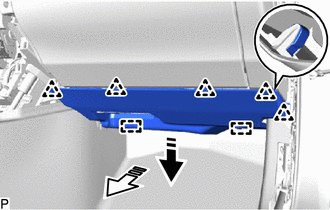

    1. Disengage the clips and guides to remove the No. 2 instrument panel under cover sub-assembly as shown in the illustration.
      GTY658397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disconnect the connector.
  25. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

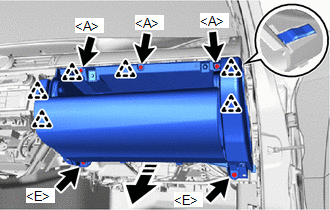

    1. Remove the 3 screws <A>.
      GTY670701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the 2 bolts <E>.
    3. Disengage the clips to remove the glove compartment door assembly as shown in the illustration.
    4. Disconnect the connectors.
  26. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 4

  27. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a moulding remover B, disengage the clips to remove the No. 2 instrument panel register assembly as shown in the illustration.
      GTY626634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connectors.
  28. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

    Refer to PROCEDURE - Step 10

  29. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

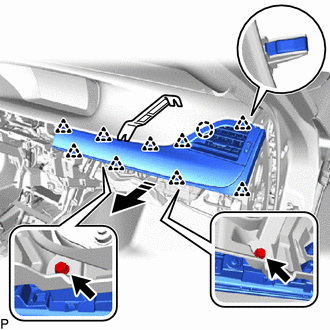

    1. Remove the 2 screws <G>.
      GTY662417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Using a moulding remover B, disengage the clips and claw to remove the No. 2 instrument panel garnish sub-assembly as shown in the illustration.
    3. Disconnect the connector.
  30. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the clips and guides to remove the No. 1 instrument panel speaker panel sub-assembly as shown in the illustration.
      GTY630518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
  31. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the clips and guides to remove the No. 2 instrument panel speaker panel sub-assembly as shown in the illustration.
      GTY642283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction (1)
      Remove in this Direction (2)
  32. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

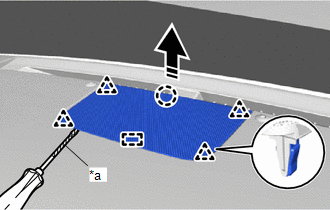

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the clips, claw and guide to remove the No. 1 speaker opening cover assembly as shown in the illustration.
      GTY655207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  33. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 5

  34. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 7

  35. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY

    Refer to PROCEDURE - Step 2

  36. REMOVE INSTRUMENT UPPER CLUSTER FINISH PANEL (for 8 Inch Display)
    1. Remove the 3 clips <B>.
      GTY633598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips and claws to remove the instrument upper cluster finish panel as shown in the illustration.
  37. REMOVE INSTRUMENT UPPER CLUSTER FINISH PANEL (for 12.3 Inch Display)

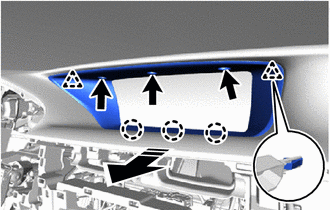

    1. Remove the 3 clips <B>.
      GTY671938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clips and claws to remove the instrument upper cluster finish panel as shown in the illustration.
  38. REMOVE MULTI-DISPLAY (for 8 Inch Display)

    Refer to PROCEDURE - Step 2

  39. REMOVE ACCESSORY METER ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 2

  40. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

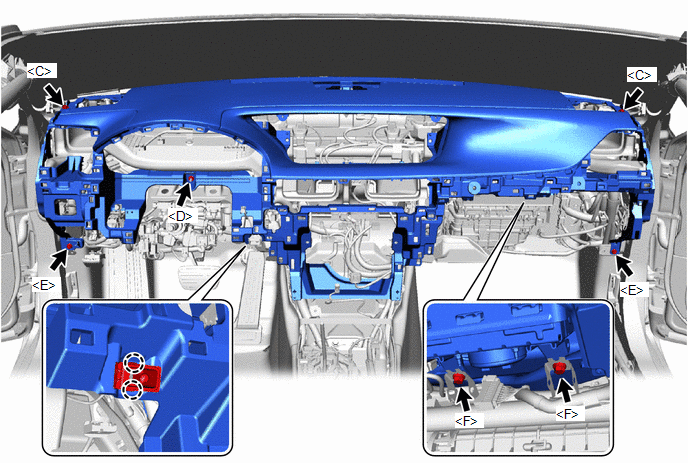

    1. Remove the nut <D>.
      GTY646106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts <C>.
    3. Remove the 2 bolts <E>.
    4. Remove the 2 bolts <F>.
    5. Disengage the claws to disconnect the room temperature sensor.
    6. Disconnect the connectors.
    7. Disengage the clamps.

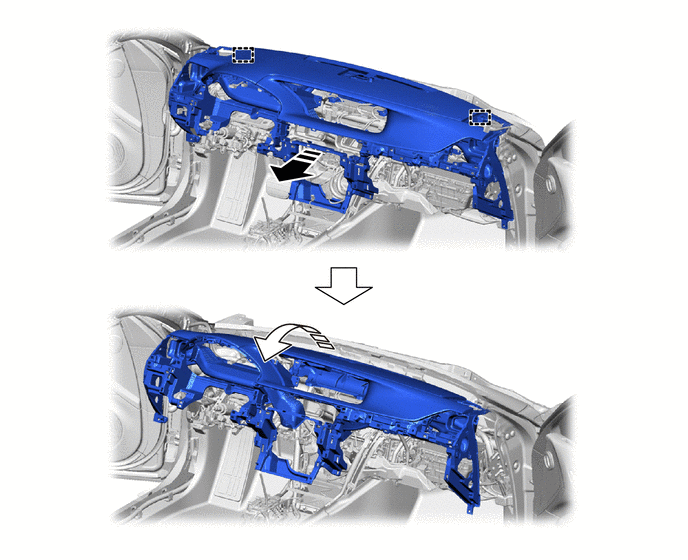

    8. Disengage the guides to remove the instrument panel safety pad sub-assembly as shown in the illustration.
      GTY616342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
