Removal [10/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 1 [09/2017 - ]

  2. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR
    1. Disconnect the connector.
      GTY655785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamps.
    3. Remove the 2 clips and hood lock release lever protector.
  3. REMOVE ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)
    1. Remove the 3 bolts to separate the engine hood courtesy switch (hood lock assembly).
      GTY403275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

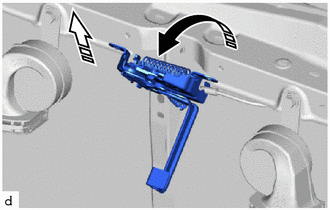

    2. Move the engine hood courtesy switch (hood lock assembly) as shown in the illustration.
      GTY632049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)

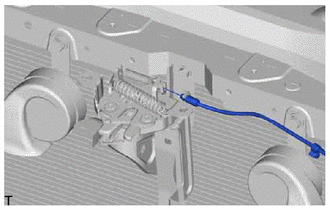

    3. Disconnect the hood lock control cable to remove the engine hood courtesy switch (hood lock assembly).
      GTY403273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
