Removal [08/2020 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 3

  4. REMOVE PIN HOLD CLIP

    HINT:

    Use the same procedure as for the RH side.

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT FENDER LINER RETAINER

    Refer to PROCEDURE - Step 34 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 33 [08/2021 - ]

  6. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  7. REMOVE HOOD LOCK ASSEMBLY
    1. except TMMK Made Gasoline Model:

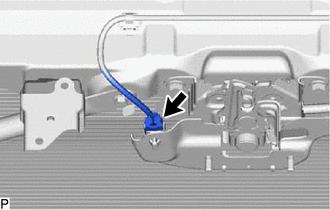

      1. Disconnect the connector.
        GTY802312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TMMK Made Gasoline Model:

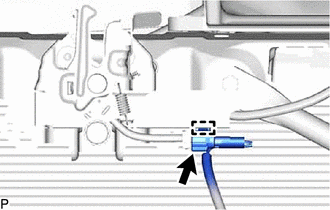

      1. Disengage the clamp.
        GTY796049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.

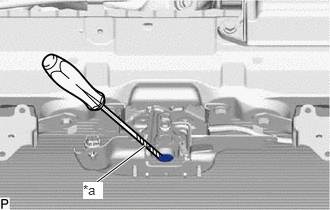

    3. Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.
      GTY837806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

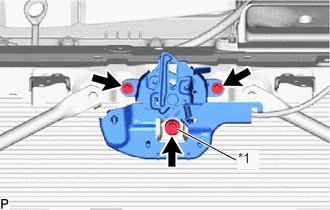

    4. Remove the 2 bolts and hood lock bolt.
      GTY807226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Bolt

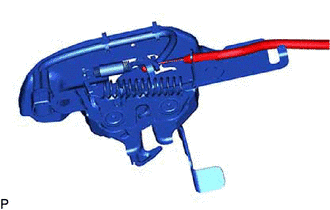

    5. Disconnect the hood lock control cable assembly to remove the hood lock assembly.
      GTY802313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  9. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  10. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  11. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 14 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 14 [09/2022 - ]

  12. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

  13. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [06/2018 - 08/2021] , or refer to 616 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 16 [09/2022 - ]

  14. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
      GTY802360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

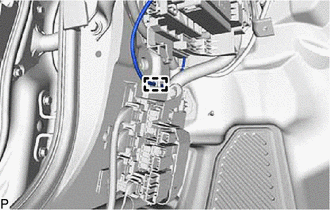

    1. Disengage the clamp.
      GTY802362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

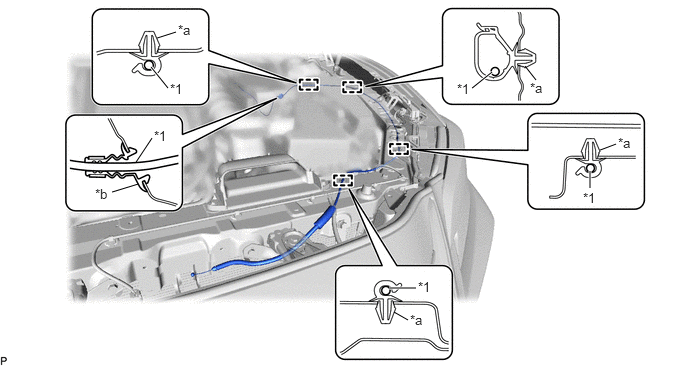

    2. Using a screwdriver, disengage each clamp and the grommet as shown in the illustration.
      GTY780344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly - -
      *a Clamp *b Grommet

      HINT:

      Tape the screwdriver tip before use.

    3. Pull the hood lock control cable assembly from the engine compartment to remove it.
