Removal [06/2018 - ]: Procedure

Refer to REMOVAL [06/2018 - ]

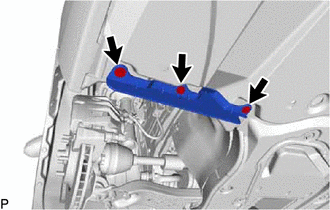

1. Remove the 3 screws and front wheel opening extension pad RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

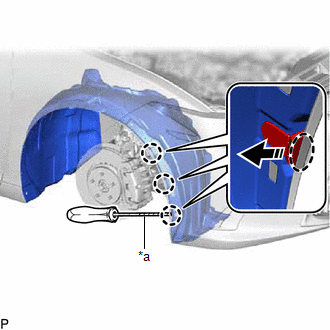

1. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Insert Screwdriver Here
   	Remove in this Direction

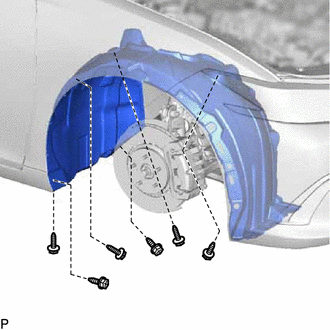

2. Remove the 6 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

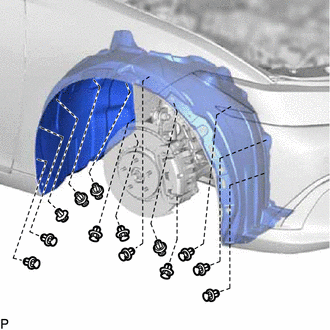

3. Remove the 13 clips and rear fender splash shield sub-assembly RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

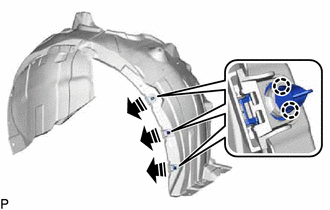

1. Disengage the 6 claws to remove the 3 pin hold clips as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

HINT:

Use the same procedure for the RH side and LH side.

Refer to PROCEDURE - Step 34 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 33 [08/2021 - ]

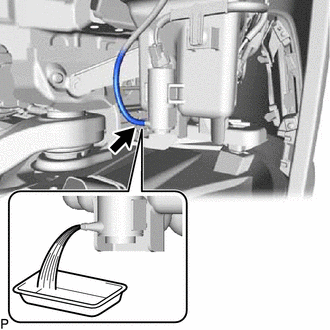

1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a container to collect the washer fluid.

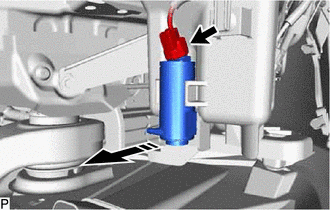

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

2. Remove the windshield washer motor and pump assembly as shown in the illustration.
