Disassembly [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Bar Type Radiator Grille)

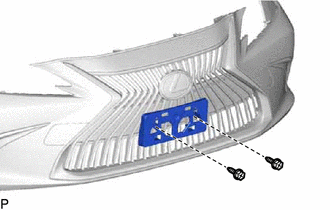

    1. Remove the 2 screws.
      GTY807395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

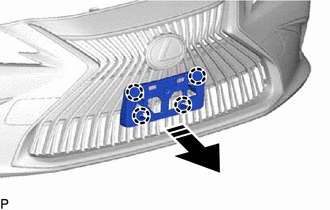

    2. Disengage the 4 claws to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY808337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Mesh Type Radiator Grille)

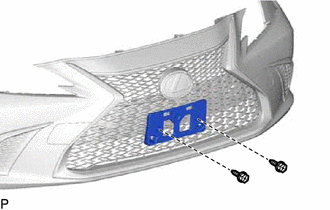

    1. Remove the 2 screws.
      GTY807578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

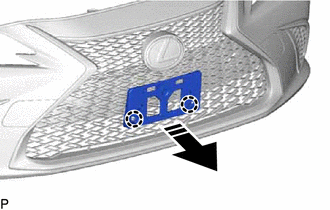

    2. Disengage the 2 claws to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY819759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE SMOG VENTILATION SENSOR

    Refer to PROCEDURE - Step 2

  4. REMOVE WIRING HARNESS CONNECTOR (w/o Parking Support Alert System)

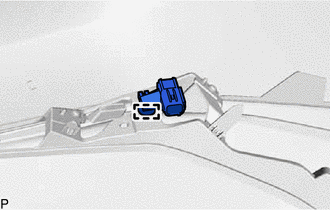

    1. Disengage the clamp to remove the wiring harness connector.
      GTY830814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 2

    HINT:

    Use the same procedure for the RH side and LH side.

  6. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 3

    HINT:

    Use the same procedure for the RH side and LH side.

  7. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 4

    HINT:

    Use the same procedure for the RH side and LH side.

  8. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Parking Support Alert System)

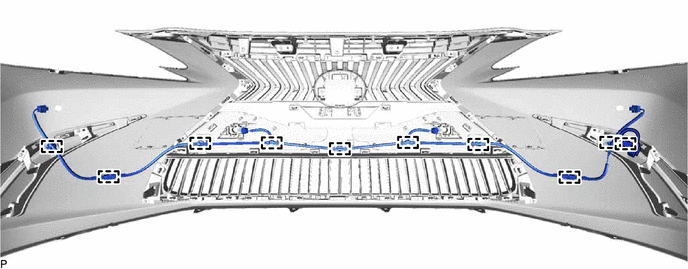

    1. Disengage the 10 clamps to remove the No. 4 engine room wire.
      GTY834243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ULTRASONIC SENSOR CLIP (w/ Parking Support Alert System)

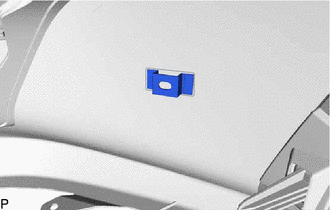

    1. Remove the ultrasonic sensor clip.
      GTY806949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  10. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  11. REMOVE WIRING HARNESS CONNECTOR (w/o Panoramic View Monitor System)

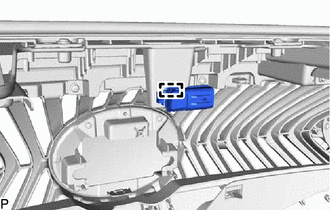

    1. Disengage the clamp to remove the wiring harness connector.
      GTY806937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 2

  13. REMOVE NO. 5 ENGINE ROOM WIRE (w/ Panoramic View Monitor System)

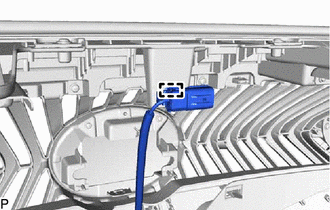

    1. Disengage the clamp to remove the No. 5 engine room wire.
      GTY806952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH (for Bar Type Radiator Grille)

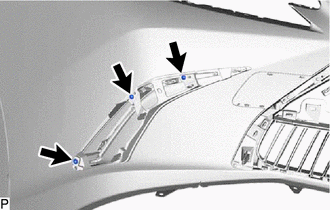

    1. Remove the 3 screws.
      GTY807174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

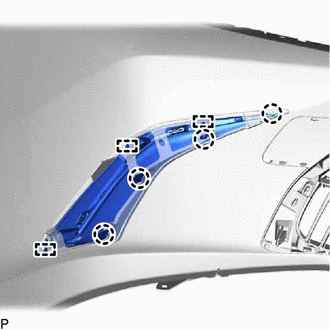

    2. Disengage the 4 claws and 3 guides to remove the radiator grille garnish sub-assembly LH.
      GTY807175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT BUMPER SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Disengage the 4 claws and 3 guides to remove the front bumper side moulding LH.
      GTY834292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH (for Mesh Type Radiator Grille)

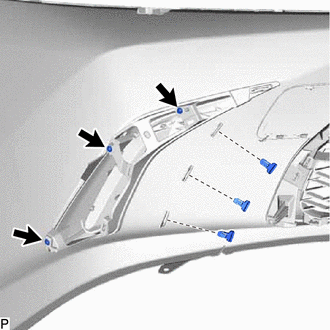

    1. Remove the 3 screws and 3 outside moulding retainers.
      GTY836207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

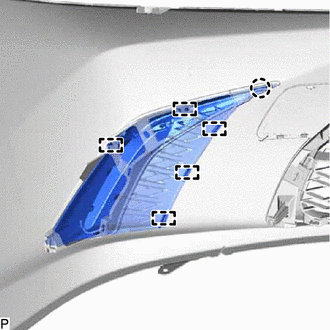

    2. Disengage the claw and 5 guides to remove the radiator grille garnish sub-assembly LH.
      GTY815799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE FRONT BUMPER HOLE COVER LH (for TMC Made)

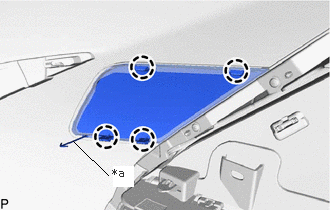

    1. Disengage the 4 claws.
      GTY779913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the front bumper hole cover LH.
  21. REMOVE FRONT BUMPER HOLE COVER RH (for TMC Made)

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE CENTER FRONT BUMPER SEAL

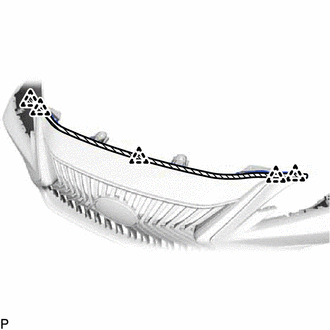

    1. Disengage the 5 clips.
      GTY838628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Separate the double-sided tape and remove the center front bumper seal.
  23. REMOVE UPPER RADIATOR GRILLE

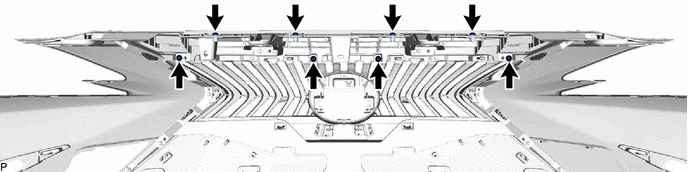

    1. Remove the 8 screws.
      GTY807193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

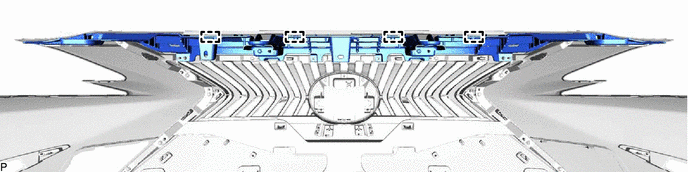

    2. Disengage the 4 guides and remove the upper radiator grille.
      GTY807191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE UPPER FRONT BUMPER RETAINER

    HINT:

    Use the same procedure for the RH side and LH side.

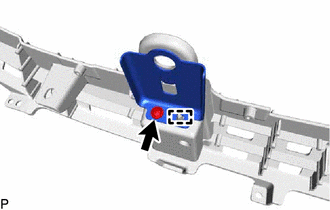

    1. Remove the screw.
      GTY834295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the upper front bumper retainer.
  25. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. Remove the 2 screws.
      GTY807189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

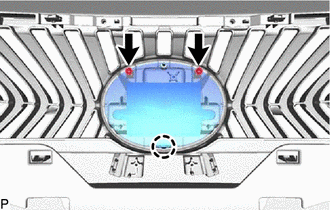

    2. Disengage the claw to remove the radiator grille (or front panel) emblem.
  26. REMOVE RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)

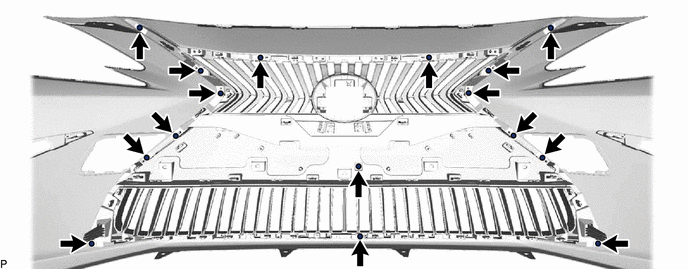

    1. Remove the 16 screws.
      GTY807190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

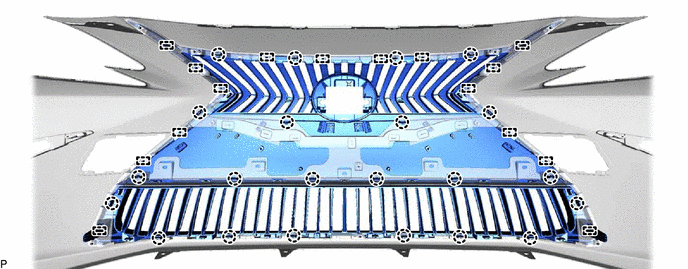

    2. Disengage the 22 claws and 16 guides to remove the outside radiator grille.
      GTY807187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)

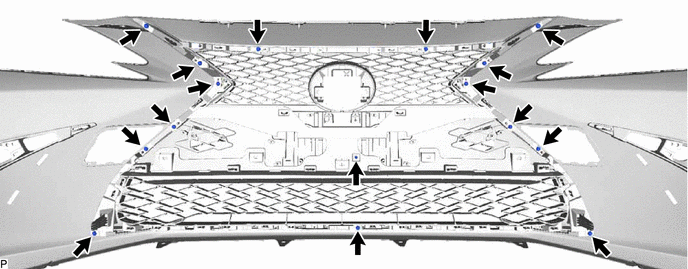

    1. Remove the 16 screws.
      GTY815798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

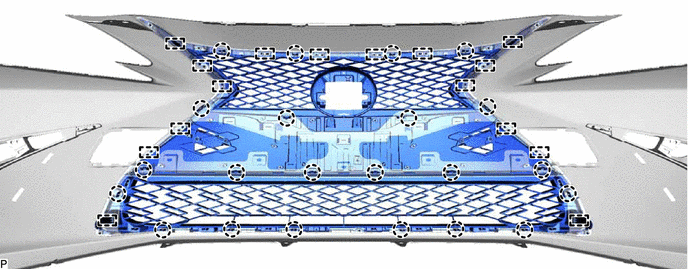

    2. Disengage the 22 claws and 16 guides to remove the outside radiator grille.
      GTY815797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

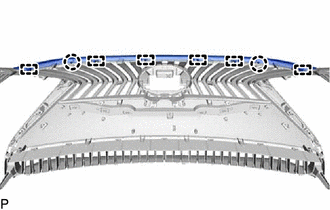

  28. REMOVE UPPER RADIATOR GRILLE MOULDING
    1. Disengage the 2 claws and 6 guides to remove the upper radiator grille moulding.
      GTY807184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE RADIATOR GRILLE SIDE MOULDING LH

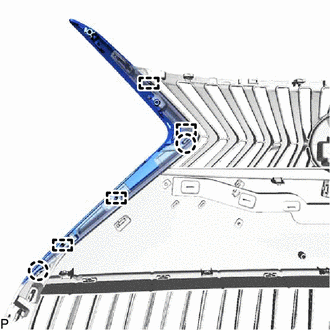

    1. Disengage the 2 claws and 4 guides to remove the radiator grille side moulding LH.
      GTY807185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE RADIATOR GRILLE SIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE LOWER RADIATOR GRILLE MOULDING

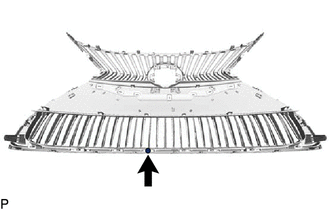

    1. Remove the screw.
      GTY807180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

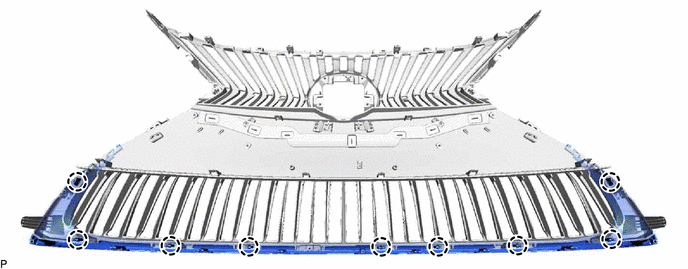

    2. Disengage the 9 claws to remove the lower radiator grille moulding.
      GTY807182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE INSIDE RADIATOR GRILLE (for TMC Made)
    1. for Bar Type Radiator Grille:

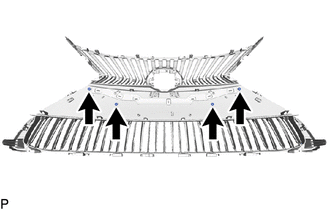

      1. Remove the 4 spring nuts.
        GTY807334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

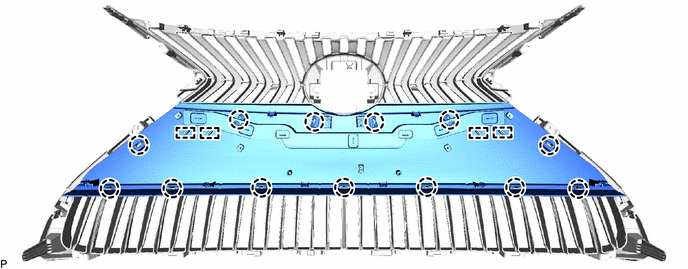

      2. Disengage the 13 claws and 4 guides to remove the inside radiator grille.
        GTY834326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Mesh Type Radiator Grille:

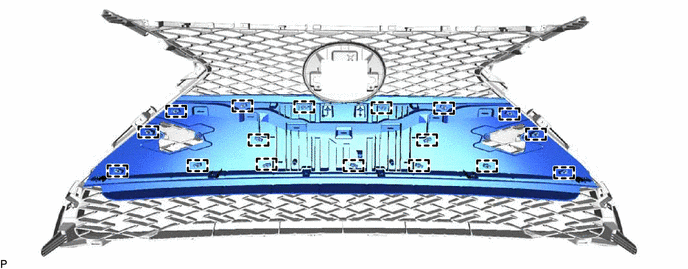

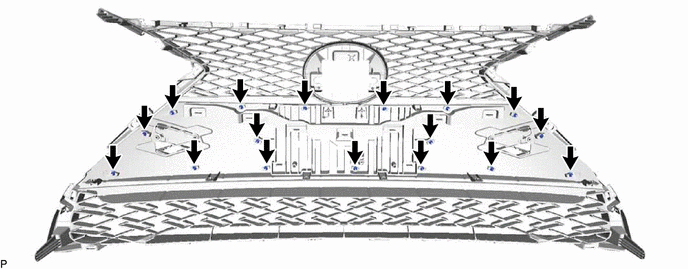

      1. Remove the 17 spring nuts.
        GTY815805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 17 guides to remove the inside radiator grille.
        GTY815804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE PIN HOLD CLIP

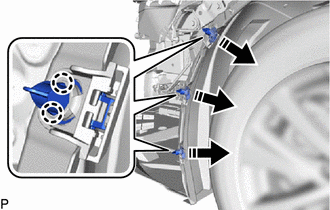

    1. Disengage the 6 claws to remove the 3 pin hold clips as shown in the illustration.
      GTY799234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  34. REMOVE FRONT FENDER LINER RETAINER

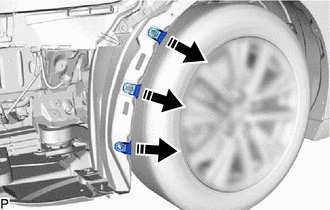

    1. Remove the 3 front fender liner retainers as shown in the illustration.
      GTY837059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  35. REMOVE FRONT BUMPER ENERGY ABSORBER

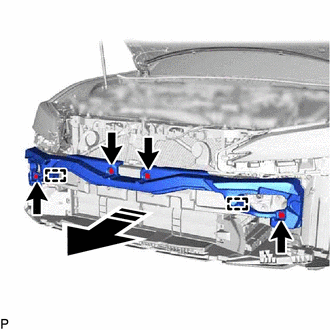

    1. Remove the 4 clips.
      GTY812687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 guides to remove the front bumper energy absorber as shown in the illustration.
  36. REMOVE NO. 2 FRONT BUMPER MOUNTING BRACKET
    1. Remove the 2 bolts.
      GTY775161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

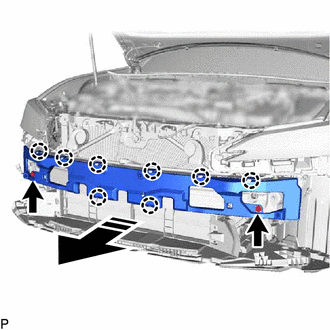

    2. Disengage the 8 claws to remove the No. 2 front bumper mounting bracket as shown in the illustration.
  37. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the headlight assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Remove the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

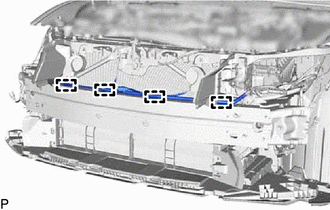

    3. Disengage the 4 clamps.
      GTY807202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

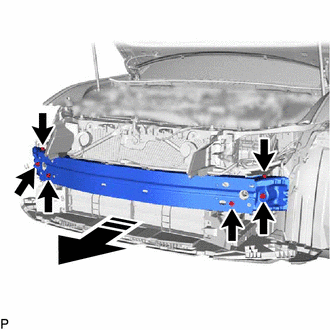

    4. Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.
      GTY809130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  38. REMOVE FRONT BUMPER SIDE SUPPORT LH

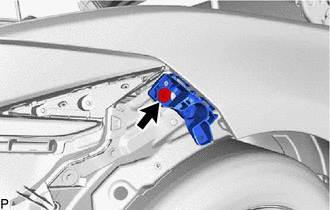

    1. Remove the bolt.
      GTY807200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

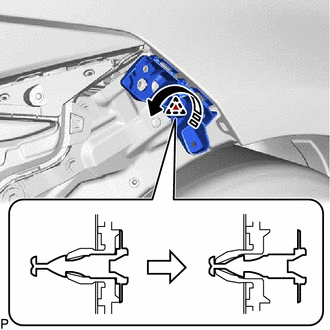

    2. Disengage the clip as shown in the illustration to remove the front bumper side support LH.
      GTY779377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  39. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.
