Disassembly [08/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Bar Type Radiator Grille)

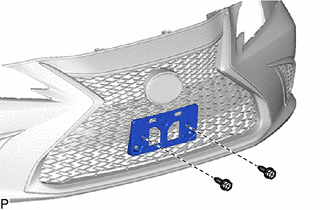

    1. Remove the 2 screws.
      GTY1085194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

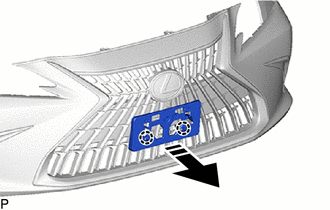

    2. Disengage the 2 claws to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY1085723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (for Mesh Type Radiator Grille)

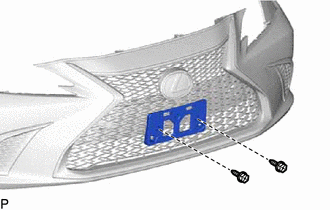

    1. Remove the 2 screws.
      GTY1085736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

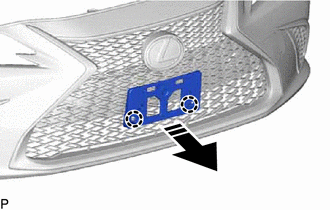

    2. Disengage the 2 claws to remove the front bumper extension mounting bracket as shown in the illustration.
      GTY1085472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE SMOG VENTILATION SENSOR

    Refer to PROCEDURE - Step 2

  4. REMOVE WIRING HARNESS CONNECTOR (w/o Parking Support Alert System)
    1. Disengage the clamp to remove the wiring harness connector.
      GTY830814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 2 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - ]

    HINT:

    Use the same procedure for the RH side and LH side.

  6. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 3 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - ]

    HINT:

    Use the same procedure for the RH side and LH side.

  7. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Alert System)

    Refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

    HINT:

    Use the same procedure for the RH side and LH side.

  8. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Parking Support Alert System)

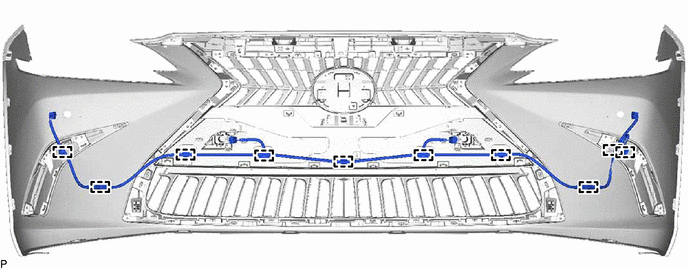

    1. Disengage the 10 clamps to remove the No. 4 engine room wire.
      GTY1085293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ULTRASONIC SENSOR CLIP (w/ Parking Support Alert System)
    1. Remove the ultrasonic sensor clip.
      GTY806949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  10. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  11. REMOVE WIRING HARNESS CONNECTOR (w/o Panoramic View Monitor System)

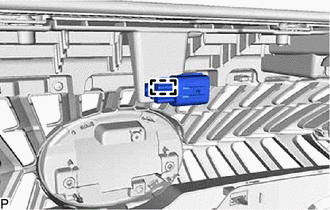

    1. Disengage the clamp to remove the wiring harness connector.
      GTY1085953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 2 [06/2018 - 09/2022] , or refer to PROCEDURE - Step 2 [09/2022 - ]

  13. REMOVE NO. 5 ENGINE ROOM WIRE (w/ Panoramic View Monitor System)

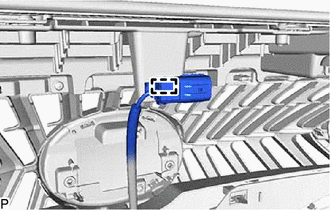

    1. Disengage the clamp to remove the No. 5 engine room wire.
      GTY1085171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH (for Bar Type Radiator Grille)

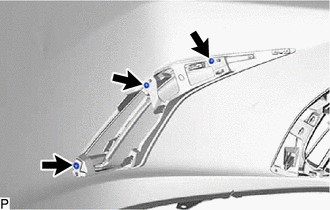

    1. Remove the 3 screws.
      GTY1085314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

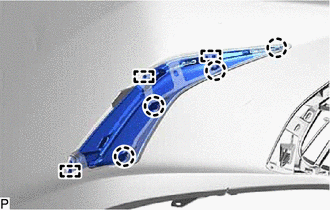

    2. Disengage the 4 claws and 3 guides to remove the radiator grille garnish sub-assembly LH.
      GTY1085313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT BUMPER SIDE MOULDING LH (for Bar Type Radiator Grille)
    1. Disengage the 4 claws and 3 guides to remove the front bumper side moulding LH.
      GTY834292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT BUMPER SIDE MOULDING RH (for Bar Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH (for Mesh Type Radiator Grille)
    1. Remove the 3 screws and 3 outside moulding retainers.
      GTY836207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and 5 guides to remove the radiator grille garnish sub-assembly LH.
      GTY815799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH (for Mesh Type Radiator Grille)

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE CENTER FRONT BUMPER SEAL

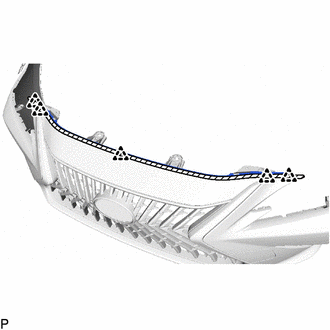

    1. Disengage the 5 clips.
      GTY1085717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
    2. Separate the double-sided tape and remove the center front bumper seal.
  21. REMOVE UPPER RADIATOR GRILLE

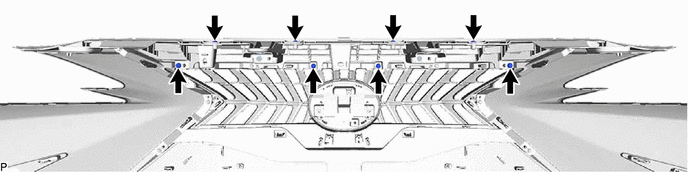

    1. Remove the 8 screws.
      GTY1085316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

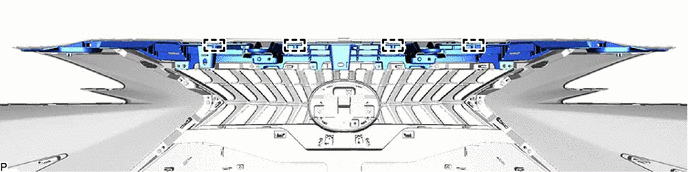

    2. Disengage the 4 guides and remove the upper radiator grille.
      GTY1085315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE UPPER FRONT BUMPER RETAINER

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Remove the screw.
      GTY834295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the upper front bumper retainer.
  23. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (for Bar Type Radiator Grille)

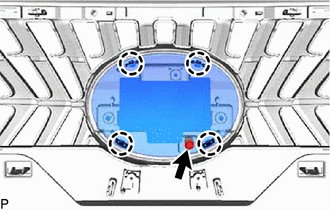

    1. Remove the screw.
      GTY1085169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the radiator grille (or front panel) emblem.
  24. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (for Mesh Type Radiator Grille)

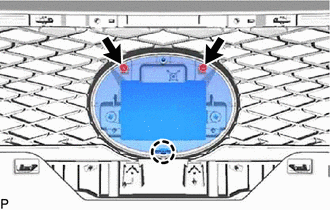

    1. Remove the 2 screws.
      GTY1085947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the radiator grille (or front panel) emblem.
  25. REMOVE RADIATOR GRILLE SUB-ASSEMBLY (for Bar Type Radiator Grille)

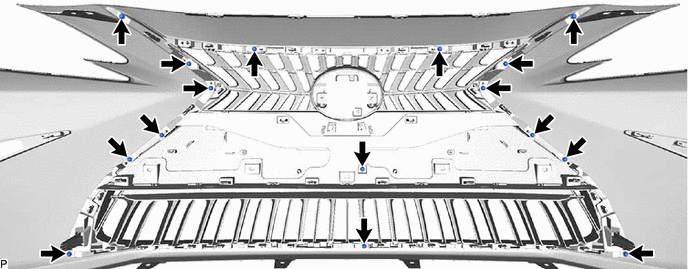

    1. Remove the 16 screws.
      GTY1085309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

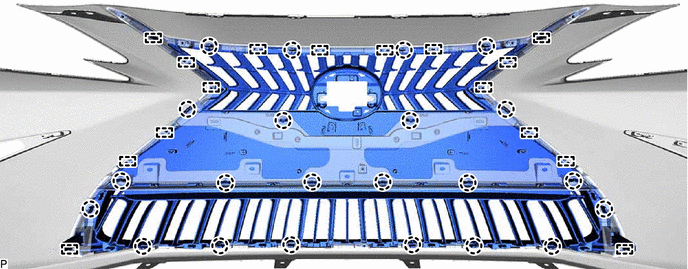

    2. Disengage the 22 claws and 16 guides to remove the outside radiator grille.
      GTY1085308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE RADIATOR GRILLE SUB-ASSEMBLY (for Mesh Type Radiator Grille)

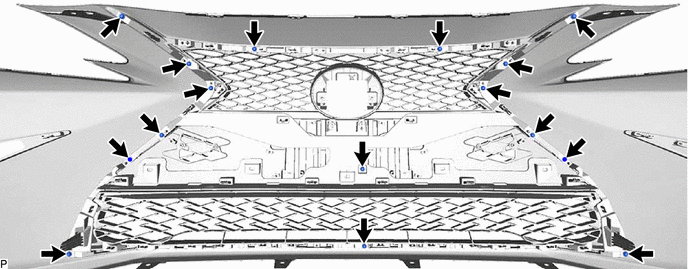

    1. Remove the 16 screws.
      GTY1085311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

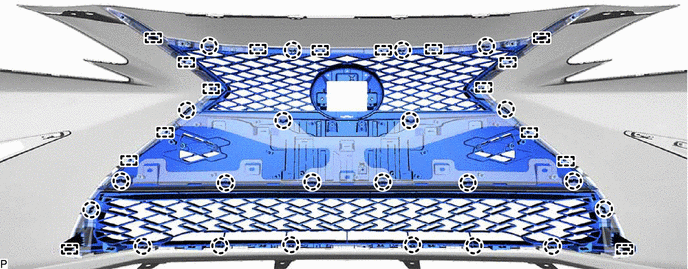

    2. Disengage the 22 claws and 16 guides to remove the outside radiator grille.
      GTY1085310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE UPPER RADIATOR GRILLE MOULDING

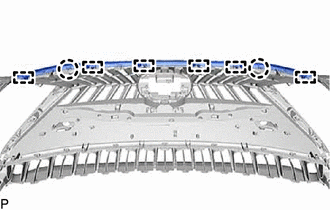

    1. Disengage the 2 claws and 6 guides to remove the upper radiator grille moulding.
      GTY1085948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE RADIATOR GRILLE SIDE MOULDING LH

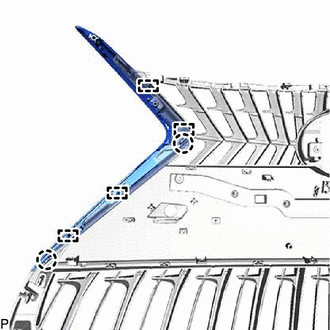

    1. Disengage the 2 claws and 4 guides to remove the radiator grille side moulding LH.
      GTY1085152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE RADIATOR GRILLE SIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  30. REMOVE LOWER RADIATOR GRILLE MOULDING (for Bar Type Radiator Grille)

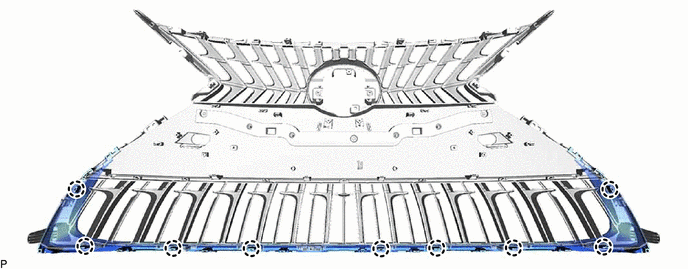

    1. Disengage the 9 claws to remove the lower radiator grille moulding.
      GTY1085153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE LOWER RADIATOR GRILLE MOULDING (for Mesh Type Radiator Grille)

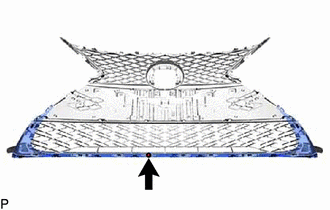

    1. Remove the screw.
      GTY1085633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

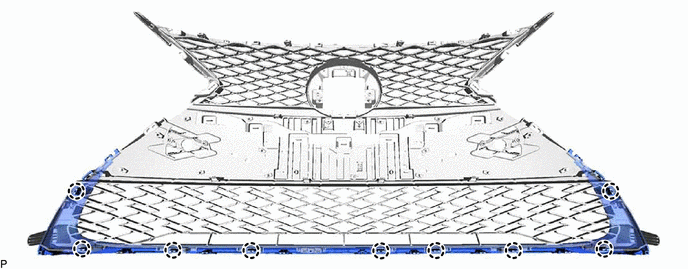

    2. Disengage the 9 claws to remove the lower radiator grille moulding.
      GTY1085632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE PIN HOLD CLIP
    1. Disengage the 6 claws to remove the 3 pin hold clips as shown in the illustration.
      GTY799234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  33. REMOVE FRONT FENDER LINER RETAINER
    1. Remove the 3 front fender liner retainers as shown in the illustration.
      GTY837059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  34. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Remove the 4 clips.
      GTY812687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 guides to remove the front bumper energy absorber as shown in the illustration.
  35. REMOVE NO. 2 FRONT BUMPER MOUNTING BRACKET
    1. Remove the 2 bolts.
      GTY775161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 8 claws to remove the No. 2 front bumper mounting bracket as shown in the illustration.
  36. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the headlight assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022] , or refer to REMOVAL [09/2022 - ]

    2. Remove the headlight assembly RH.

      HINT:

      Use the same procedure as for the LH side.

    3. Disengage the 4 clamps.
      GTY807202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.
      GTY809130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  37. REMOVE FRONT BUMPER SIDE SUPPORT LH
    1. Remove the bolt.
      GTY807200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip as shown in the illustration to remove the front bumper side support LH.
      GTY779377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  38. REMOVE FRONT BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.
