Removal [12/2017 - 08/2019]: Procedure

  1. REMOVE REMOTE TOUCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

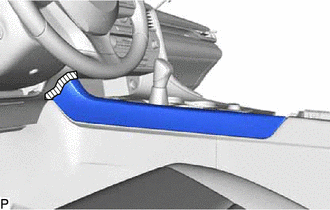

    1. Apply protective tape to the area shown in the illustration.
      GTY677789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

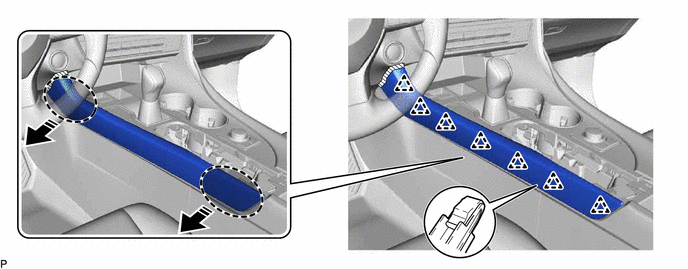

    2. Disengage the 7 clips to remove the lower No. 2 instrument panel finish panel as shown in the illustration.
      GTY680809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
    NOTE:

    Make sure to perform this procedure carefully, otherwise the lower No. 1 instrument panel finish panel may be damaged.

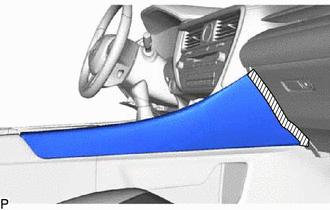

    1. Apply protective tape to the area shown in the illustration.
      GTY641286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

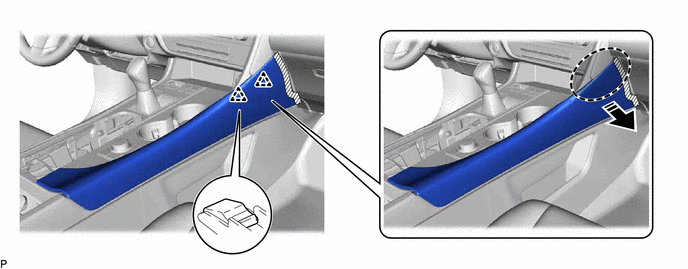

    2. Disengage the 2 clips as shown in the illustration.
      GTY822429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

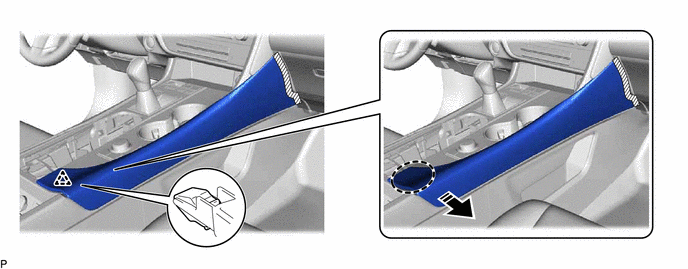

    3. Disengage the clip as shown in the illustration.
      GTY826132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

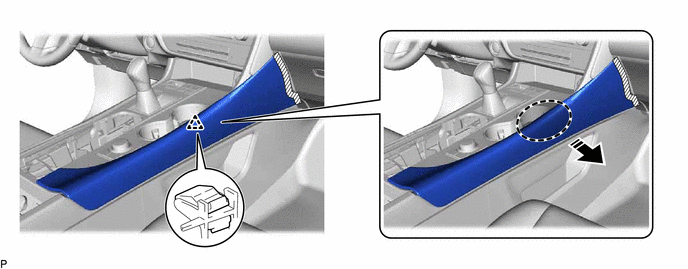

    4. Disengage the clip as shown in the illustration.
      GTY780788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

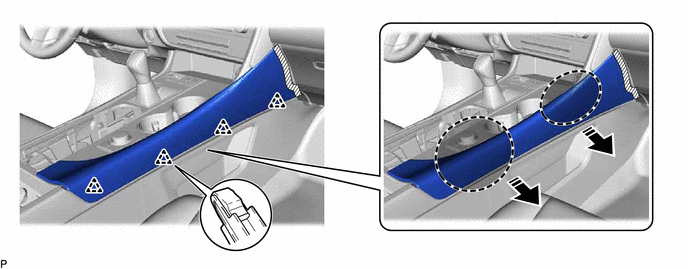

    5. Disengage the 4 clips to remove the lower No. 1 instrument panel finish panel as shown in the illustration.
      GTY805755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

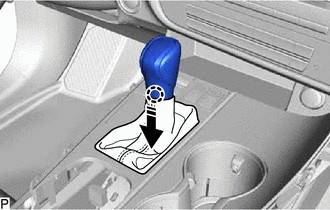

    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY622121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

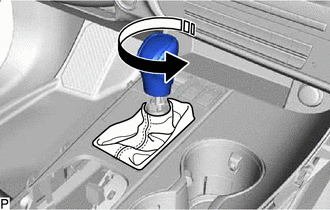

    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY651780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

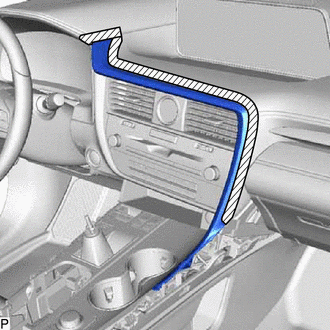

    1. Apply protective tape to the areas shown in the illustration.
      GTY658467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

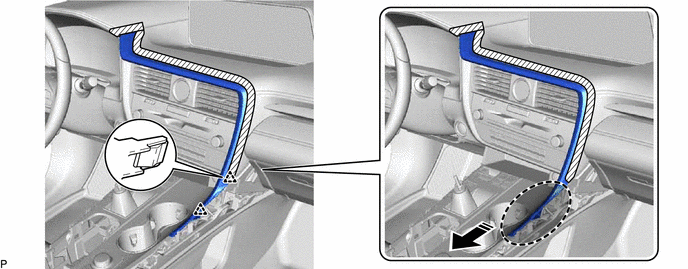

    2. Disengage the 2 clips as shown in the illustration.
      GTY626516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction

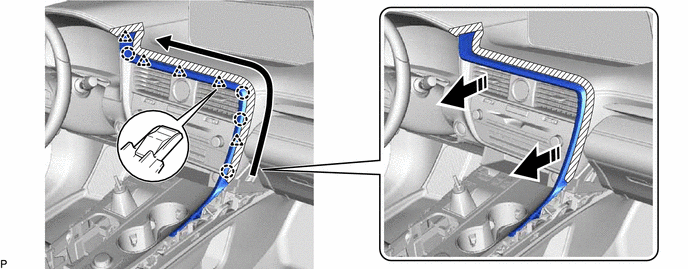

    3. Disengage the 4 claws and 5 clips to remove the instrument cluster finish panel ornament as shown in the illustration.
      GTY638599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Order of Removal
  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

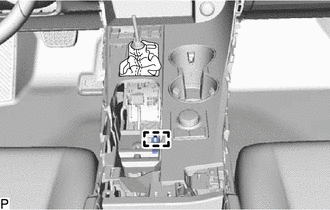

    1. Disengage the clamp.
      GTY643365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to N.

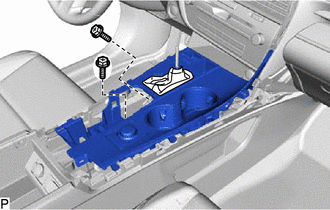

    3. Remove the 2 screws.
      GTY651959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

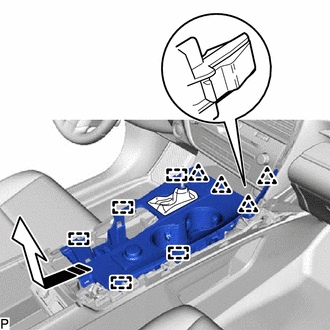

    4. Disengage the 4 clips and 5 guides as shown in the illustration.
      GTY618191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disconnect each connector to remove the console panel sub-assembly.
  7. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY

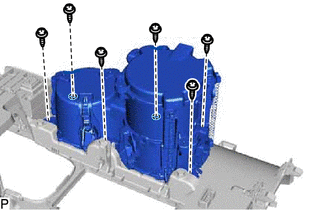

    1. Remove the 6 screws and instrument panel cup holder assembly.
      GTY660567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

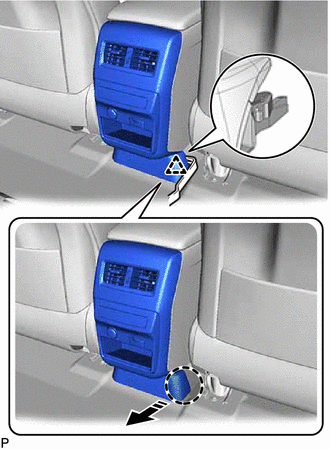

    1. Using a moulding remover B, disengage the clip as shown in the illustration.
      GTY615991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover B Here
      Remove in this Direction

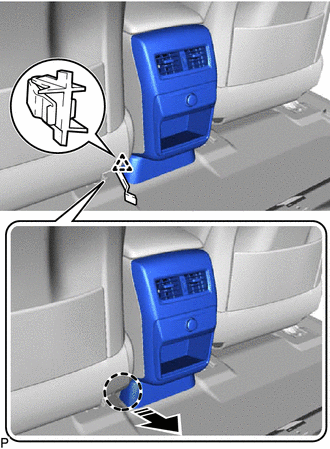

    2. Using a moulding remover B, disengage the clip as shown in the illustration.
      GTY683873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover B Here
      Remove in this Direction

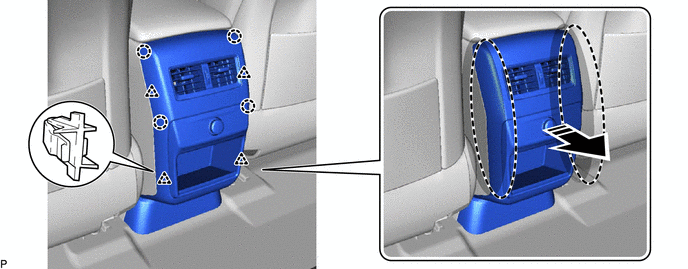

    3. Disengage the 4 clips and 4 claws as shown in the illustration.
      GTY635403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    4. Disconnect each connector.
    5. Disconnect each connector to remove the console rear end panel sub-assembly.
  9. REMOVE CONSOLE BOX ASSEMBLY

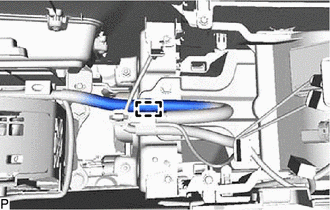

    1. Disengage the clamp.
      GTY660555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

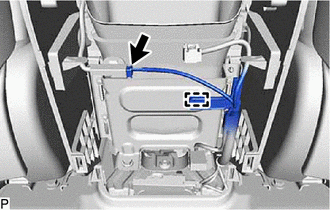

    2. Disengage the clamp.
      GTY660545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.

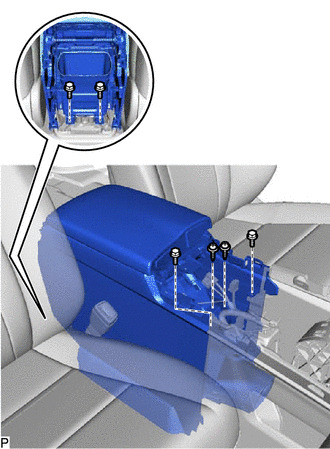

    4. Remove the 4 bolts and 2 screws.
      GTY660551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect each connector.

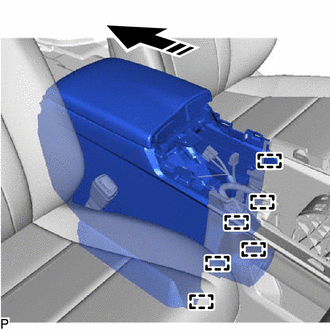

    6. Pull the console box assembly as shown in the illustration to disengage the 6 guides and remove the console box assembly.
      GTY674363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
