Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY WITH REGISTER

    Refer to PROCEDURE - Step 9 [08/2016 - 03/2018] Refer to PROCEDURE - Step 11 [03/2018 - 08/2019]

  2. REMOVE CLOCK ASSEMBLY

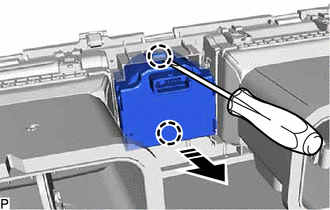

    1. Using a screwdriver, disengage the 2 claws and remove the clock assembly as shown in the illustration.
      GTY684876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
