Installation [09/2015 - ]: Procedure

  1. INSTALL STEERING INTERMEDIATE SHAFT
    1. Align the matchmarks on the power steering link and intermediate shaft.
      GTY677751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  2. INSTALL POWER STEERING LINK ASSEMBLY (for 2WD)

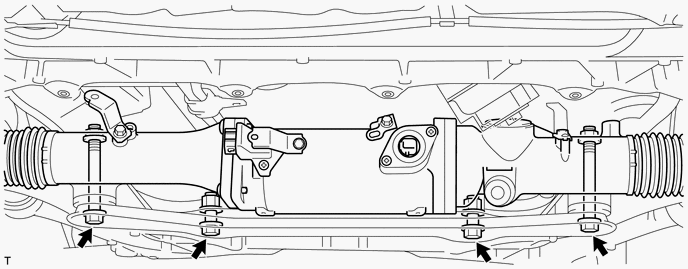

    1. Install the power steering link and rack housing bracket to the front frame with the 4 bolts and 4 nuts.

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

      GTY636324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

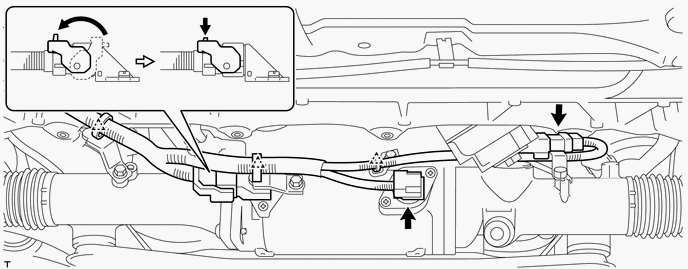

    2. Connect the 3 connectors and attach the 3 clips.
      GTY289102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL POWER STEERING LINK ASSEMBLY (for AWD)

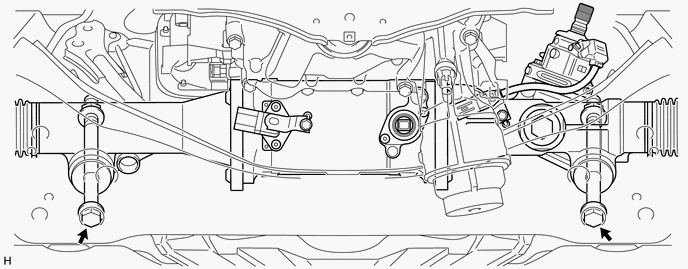

    1. Install the power steering link and 2 washers to the front frame with the 2 bolts and 2 nuts.

      Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

      GTY350247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

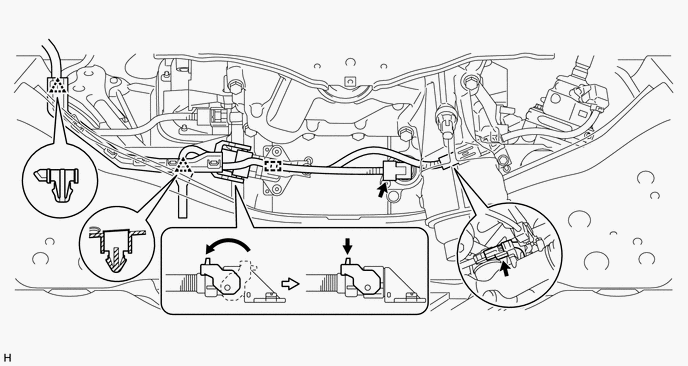

    2. Connect the 3connectors and attach the 2 clips and clamp.
      GTY350248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT TIE ROD ASSEMBLY LH
    1. Connect the tie rod LH to the steering knuckle with the nut.

      Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)

    2. Install a new clip.
  5. CONNECT TIE ROD ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  6. CONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 4

  7. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 2

  8. INSTALL FRONT NO. 1 STABILIZER BAR BUSH (for AWD)

    Refer to PROCEDURE - Step 1

  9. INSTALL FRONT STABILIZER BAR (for AWD)

    Refer to PROCEDURE - Step 2

  10. INSTALL FRONT NO. 1 STABILIZER BRACKET LH (for AWD)

    Refer to PROCEDURE - Step 3

  11. INSTALL FRONT NO. 1 STABILIZER BRACKET RH (for AWD)

    Refer to PROCEDURE - Step 4

  12. INSTALL NO. 2 FRONT STABILIZER BRACKET RH (for AWD)
    1. Install the bracket and bolt.
      GTY402471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)

    2. Connect the 2 clamps.
  13. INSTALL FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH (for AWD)
    1. Install the bracket with the 4 bolts.
      GTY404640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 59 N*m (603 kgf*cm, 44 ft.*lbf)

  14. INSTALL FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH (for AWD)
    1. Install the bracket with the 4 bolts.
      GTY404641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 59 N*m (603 kgf*cm, 44 ft.*lbf)

  15. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for 2WD)

    Refer to PROCEDURE - Step 100

  16. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for AWD)

    Refer to PROCEDURE - Step 111

  17. INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 101

  18. INSTALL NO. 1 ENGINE UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 13

  19. INSTALL NO. 2 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 115

  20. INSTALL NO. 1 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 13

  21. INSTALL FRONT WHEELS

    Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)

  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  23. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 15

  24. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  25. PERFORM INITIALIZATION
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  26. CHECK SUSPENSION CONTROL SYSTEM

    (Refer to ADJUSTMENT [09/2015 - ] )

  27. ADJUST HEADLIGHT AIMING

    (for HID Headlight: Refer to ADJUSTMENT [09/2015 - ] )

    (for LED Headlight: Refer to ADJUSTMENT [09/2015 - ] )

    (w/o Side Marker Light: Refer to ADJUSTMENT [09/2015 - ] )

  28. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    (Refer to ADJUSTMENT [09/2015 - 09/2016] Refer to ADJUSTMENT [09/2016 - ] ).

  29. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [09/2015 - ] )

  30. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

    (Refer to CALIBRATION [09/2015 - ] )
