Installation [09/2015 - ]: Procedure
- INSTALL FRONT NO. 1 STABILIZER BAR BUSH
- TEMPORARILY INSTALL FRONT STABILIZER BAR
- Temporarily install the front stabilizer bar and front No. 1 stabilizer bracket LH and RH with the 4 bolts in the direction shown in the illustration.
- INSTALL FRONT NO. 1 STABILIZER BRACKET LH

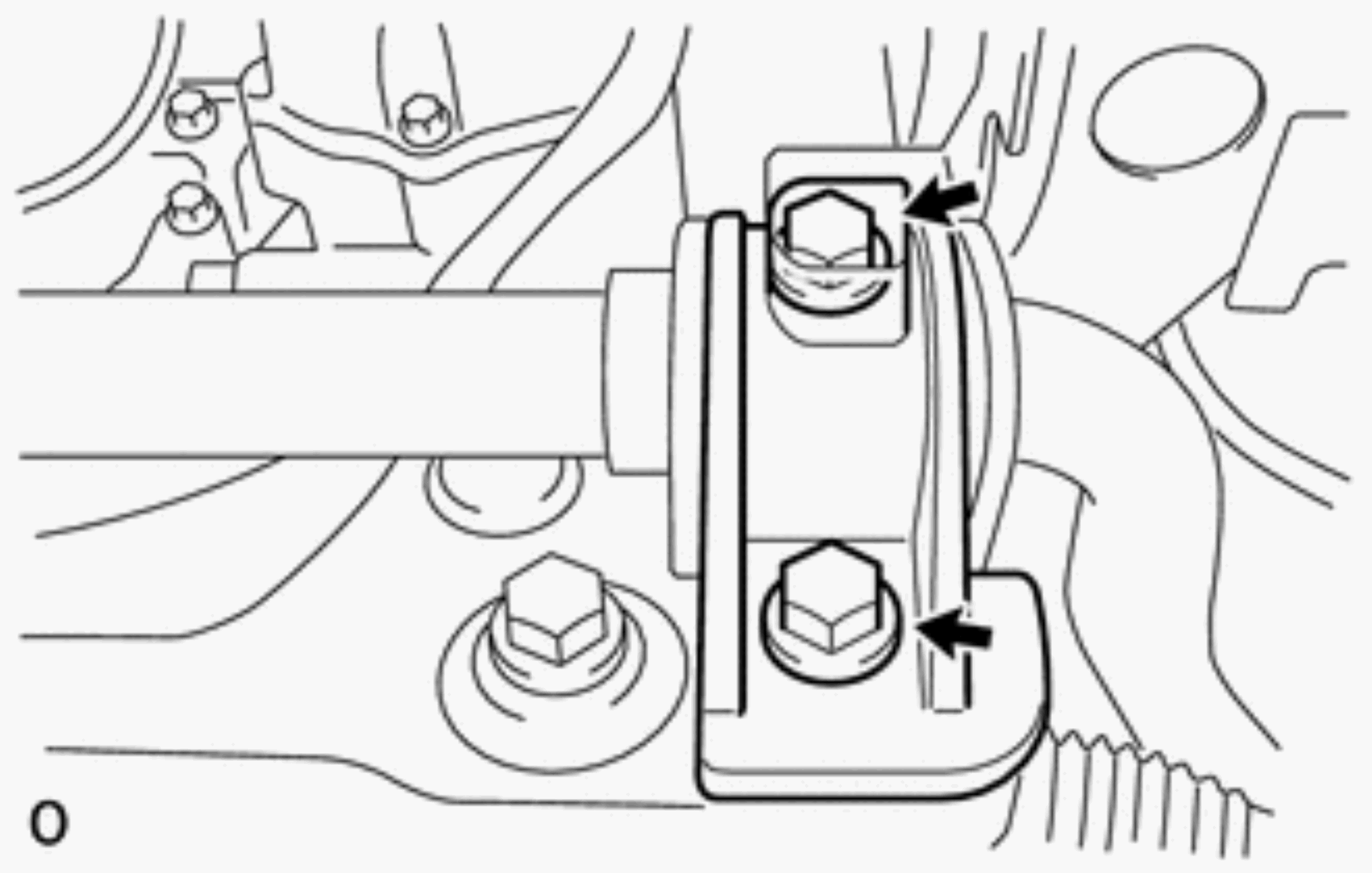

- Install the front No. 1 stabilizer bracket LH with the 2 bolts.
Torque: 115 N*m (1173 kgf*cm, 85 ft.*lbf)
- Install the wire harness bracket with the bolt.
Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)
- Install the front No. 1 stabilizer bracket LH with the 2 bolts.
- INSTALL FRONT NO. 1 STABILIZER BRACKET RH
- INSTALL FRONT STABILIZER LINK ASSEMBLY LH

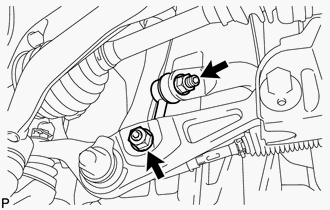

- Install the front stabilizer link with the 2 nuts.
Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.
- Install the front stabilizer link with the 2 nuts.
- INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:
Install the RH side following the same procedures as the LH side.
- INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR
Refer to PROCEDURE - Step 111
- INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 13
- INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 15
- INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 16
- INSTALL NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 115
- INSTALL FRONT CENTER FLOOR COVER
Refer to PROCEDURE - Step 116
