Installation [09/2015 - ]: Procedure

INSTALL POWER STEERING LINK ASSEMBLY (for AWD)

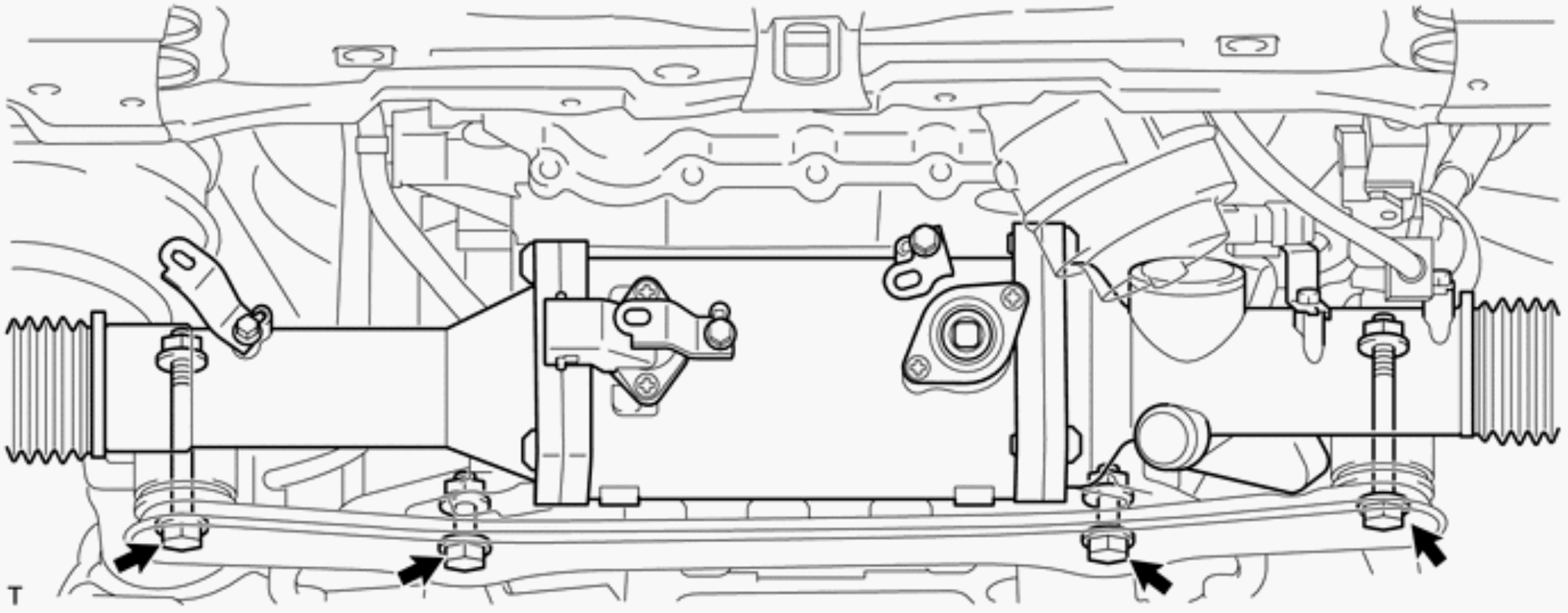

Install the power steering link and 2 washers to the front frame with the 2 bolts and 2 nuts.

Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

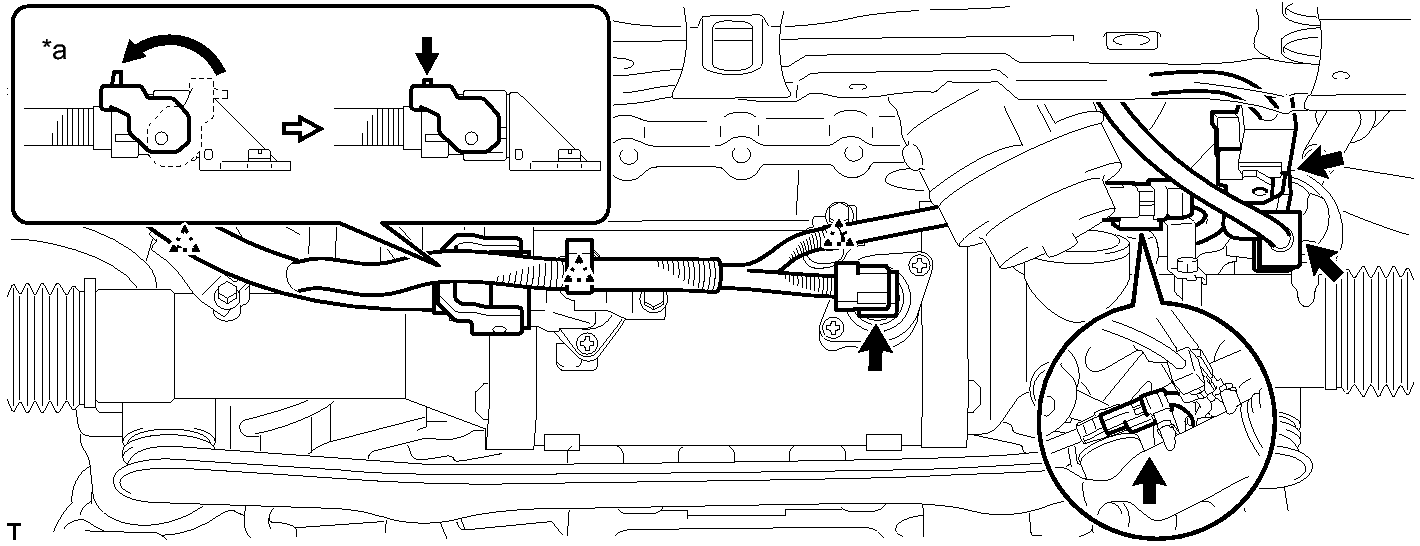

Connect the 5 connectors and attach the 2 clips and 3 clamps.

HINT:

Connect connector A as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Connector A

INSTALL POWER STEERING LINK ASSEMBLY (for 2WD)

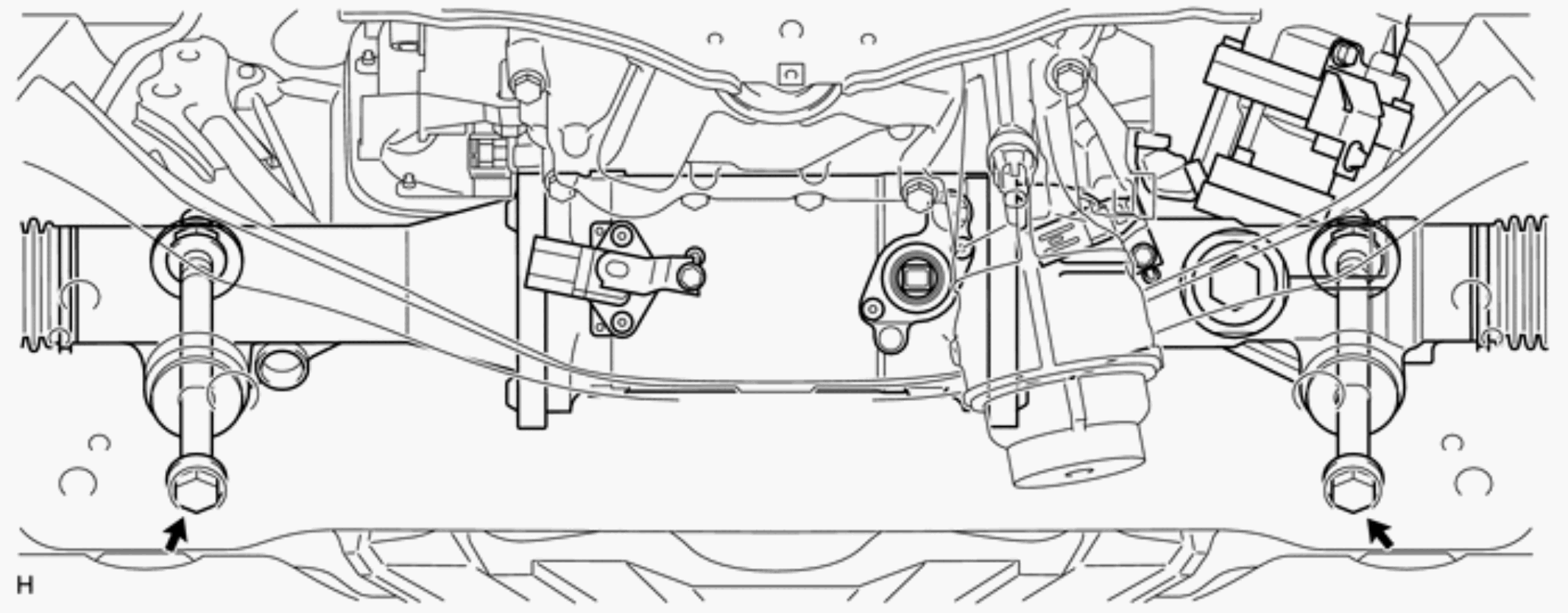

Install the power steering link and rack housing bracket to the front frame with the 4 bolts and 4 nuts.

Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

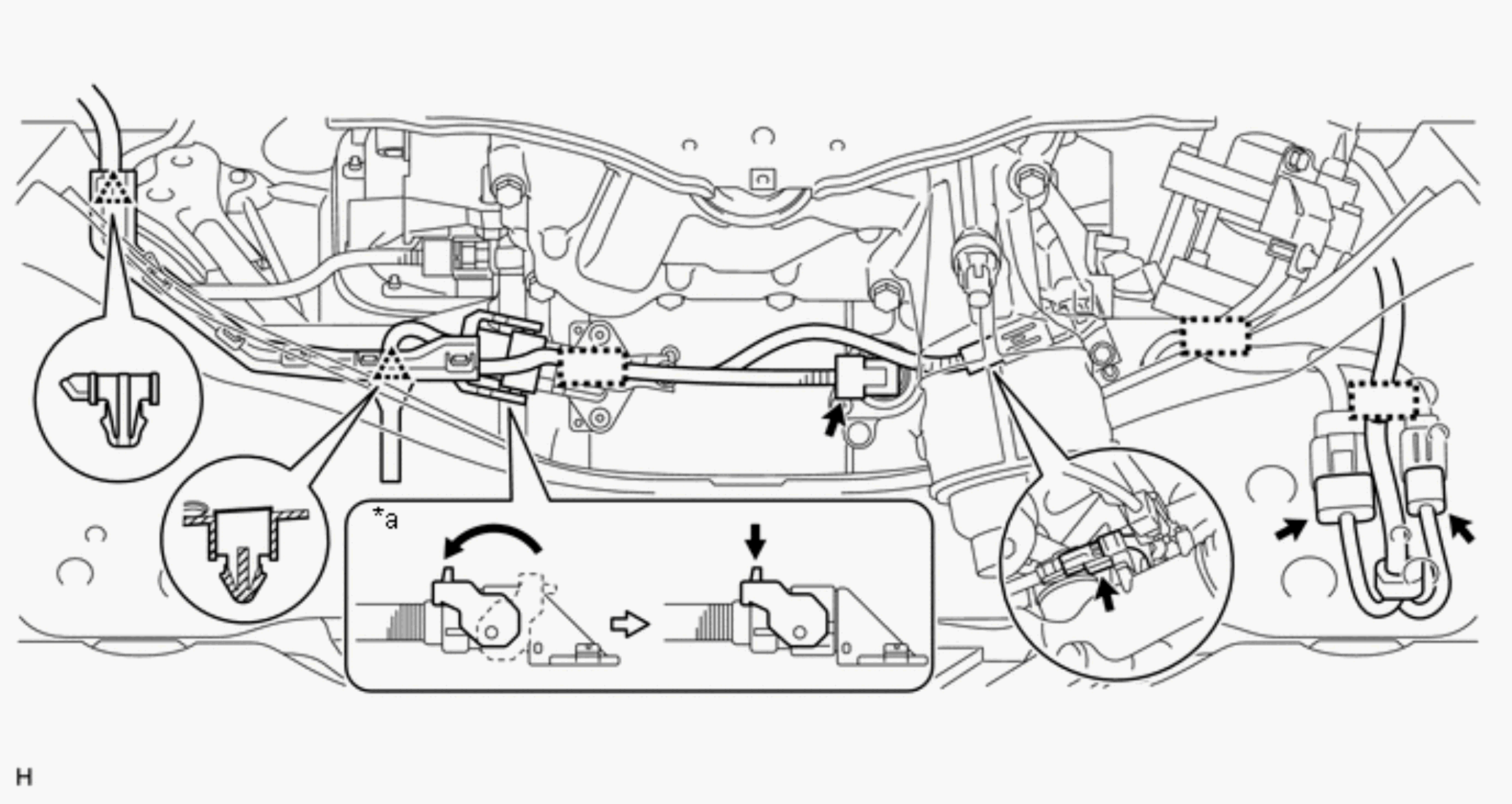

Connect the 5 connectors and attach the 3 clips.

HINT:

Connect connector A as shown in the illustration.

TEXT IN ILLUSTRATION

Connector A

CONNECT TIE ROD ASSEMBLY LH
1. Connect the tie rod LH to the steering knuckle with the nut.
  Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)
2. Install a new cotter pin.
CONNECT TIE ROD ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 2
CONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)
Refer to PROCEDURE - Step 4
INSTALL FRONT NO. 1 STABILIZER BAR BUSH (for AWD)
Refer to PROCEDURE - Step 1
INSTALL FRONT STABILIZER BAR (for AWD)
Refer to PROCEDURE - Step 2
INSTALL FRONT NO. 1 STABILIZER BRACKET LH (for AWD)
Refer to PROCEDURE - Step 3
INSTALL FRONT NO. 1 STABILIZER BRACKET RH (for AWD)
Refer to PROCEDURE - Step 4
INSTALL NO. 2 FRONT STABILIZER BRACKET RH (for AWD)

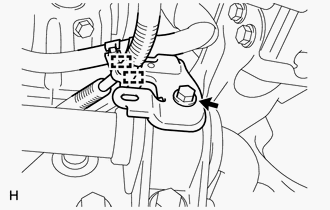

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the bracket and bolt.
  Torque: 22 N*m (224 kgf*cm, 16 ft.*lbf)
2. Connect the 2 clamps.
INSTALL FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH (for AWD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the bracket with the 4 bolts.
  Torque: 59 N*m (603 kgf*cm, 44 ft.*lbf)
INSTALL FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH (for AWD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the bracket with the 4 bolts.
  Torque: 59 N*m (603 kgf*cm, 44 ft.*lbf)
INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for AWD)
Refer to PROCEDURE - Step 111
INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (for 2WD)
Refer to PROCEDURE - Step 100
INSTALL NO. 2 ENGINE UNDER COVER (for AWD)
Refer to PROCEDURE - Step 115
INSTALL NO. 1 ENGINE UNDER COVER (for AWD)
Refer to PROCEDURE - Step 13
INSTALL NO. 2 ENGINE UNDER COVER (for 2WD)
Refer to PROCEDURE - Step 101
INSTALL NO. 1 ENGINE UNDER COVER (for 2WD)
Refer to PROCEDURE - Step 13
INSTALL FRONT WHEELS
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
CHECK SUSPENSION CONTROL SYSTEM
(Refer to ADJUSTMENT [09/2015 - ] ).
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
(Refer to ADJUSTMENT [09/2015 - 09/2016] Refer to ADJUSTMENT [09/2016 - ] ).
ADJUST HEADLIGHT AIMING
(for HID Headlight: Refer to ADJUSTMENT [09/2015 - ] )

(for LED Headlight: Refer to ADJUSTMENT [09/2015 - ] )

(w/o Side Marker Light: Refer to ADJUSTMENT [09/2015 - ] )
CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT
(Refer to CALIBRATION [09/2015 - ] ).
PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
(Refer to CALIBRATION [09/2015 - ] )
