Removal [09/2015 - ]: Procedure
- RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
See step 1
- REMOVE FRONT BUMPER COVER
(Refer to REMOVAL [09/2015 - ] )
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 6
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
Refer to PROCEDURE - Step 3
- DISCONNECT HOOD LOCK CONTROL CABLE COVER
Refer to PROCEDURE - Step 14
- DISCONNECT HOOD LOCK ASSEMBLY
Refer to PROCEDURE - Step 15
- REMOVE RADIATOR UPPER SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
- DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.NOTE:
- When loosening the bolt, do not allow any tools to contact the hose.
- When loosening the bolt, hold a part of the hose near the connector.
- Remove the O-ring from the discharge hose sub-assembly.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.
- DISCONNECT LIQUID TUBE SUB-ASSEMBLY A
- Remove the bolt and disconnect the liquid tube sub-assembly A from the cooler condenser.NOTE:
- When loosening the bolt, do not allow any tools to contact the tube.
- When loosening the bolt, hold a part of the tube near the connector.
- Remove the O-ring from the liquid tube sub-assembly A.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
- Remove the bolt and disconnect the liquid tube sub-assembly A from the cooler condenser.
- REMOVE COOLER CONDENSER ASSEMBLY

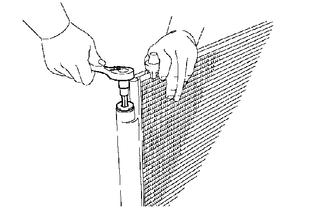

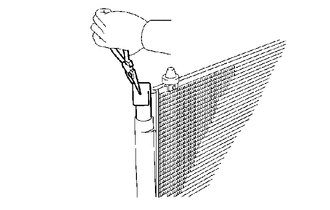

- REMOVE COOLER DRYER
