Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER REINFORCEMENT

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 1 ENGINE UNDER COVER

    See step  6

  5. DRAIN ENGINE COOLANT

    See step  7

  6. DRAIN AUTOMATIC TRANSMISSION FLUID

    Refer to PROCEDURE - Step 3

  7. REMOVE RADIATOR RESERVOIR ASSEMBLY

    See step  9

  8. REMOVE NO. 1 RADIATOR HOSE
    1. Remove the No. 1 radiator hose.
      GTY148375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 RADIATOR HOSE

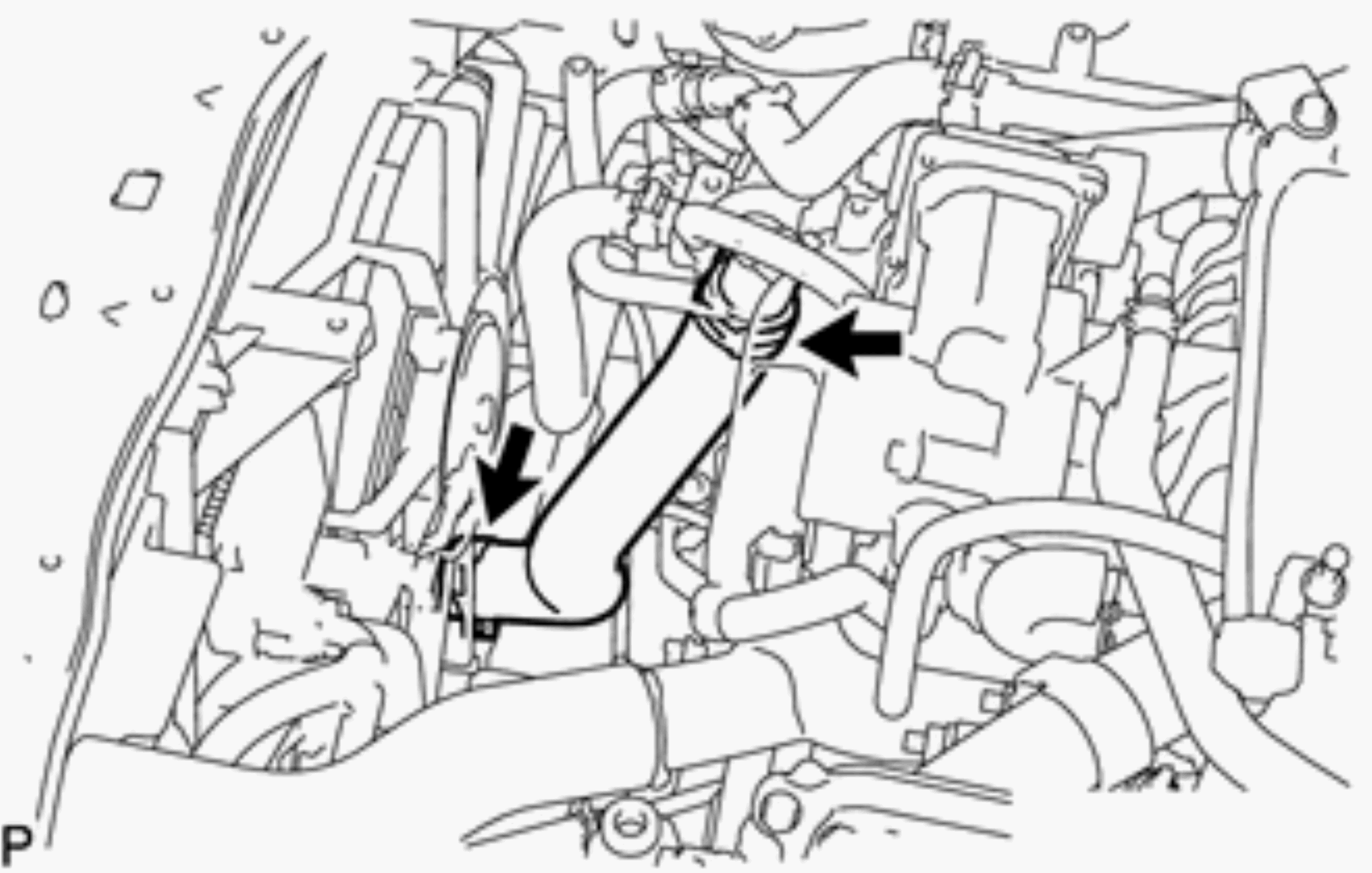

    1. Remove the No. 2 radiator hose.
      GTY616627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT NO. 1 OIL COOLER INLET HOSE

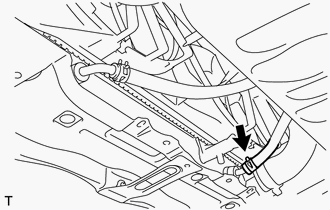

    1. Disconnect the No. 1 oil cooler inlet hose from the radiator.
      GTY269597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Place a container under the connection before disconnecting the oil cooler hose because oil in the hose may spill out.

  11. DISCONNECT NO. 1 OIL COOLER OUTLET HOSE

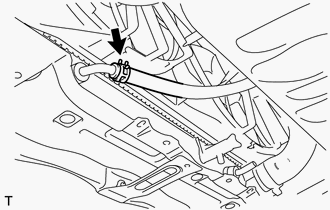

    1. Disconnect the No. 1 oil cooler outlet hose from the radiator.
      GTY269596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Place a container under the connection before disconnecting the oil cooler hose because oil in the hose may spill out.

  12. REMOVE ENGINE ROOM ECU OUTLET DUCT

    Refer to PROCEDURE - Step 28

  13. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 3

  14. DISCONNECT HOOD LOCK CONTROL CABLE COVER

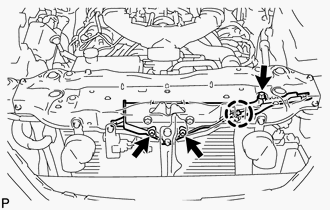

    1. Remove the 3 screws and detach the claw to disconnect the hood lock control cable cover.
      GTY419590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT HOOD LOCK ASSEMBLY

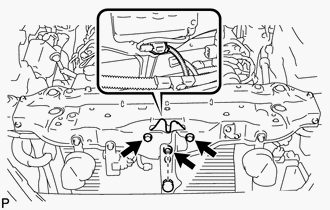

    1. Remove the lock nut cap and lock nut.
      GTY419601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove 2 bolts and disconnect the hood lock assembly.
    3. Disconnect the connector.
  16. DISCONNECT WIRE HARNESS

    See step  12

  17. REMOVE RADIATOR UPPER SUPPORT SUB-ASSEMBLY

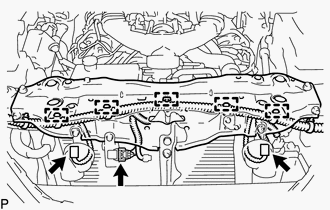

    1. Disconnect the 3 connectors and detach the 5 wire harness clamps to disconnect the wire harness.
      GTY419497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

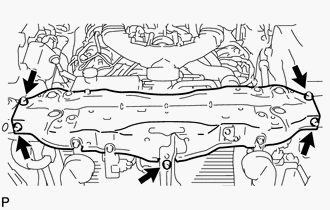

    2. Remove the 5 bolts and radiator upper support.
      GTY412776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE HOOD LOCK CONTROL CABLE COVER
    1. Disconnect the wire harness clamp.
    2. Disconnect the hood lock control cable and remove the hood lock control cable cover.
  19. REMOVE HOOD LOCK ASSEMBLY
    1. Remove the hood lock assembly from the hood lock control cable.
  20. REMOVE RADIATOR ASSEMBLY

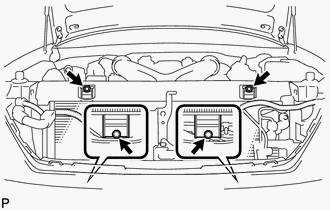

    1. Remove the 4 bolts and separate the cooler condenser from the radiator.
      GTY412727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator from the front crossmember together with the fan shroud with fan motor.
      NOTE:

      Do not allow the radiator to interfere with other parts.

  21. REMOVE FAN SHROUD WITH FAN AND MOTOR

    See step  13

  22. REMOVE RADIATOR SUPPORT CUSHION
    1. Remove the 2 radiator support cushions.
  23. REMOVE RADIATOR SUPPORT LOWER
    1. Remove the 2 radiator support lowers.
