Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 12

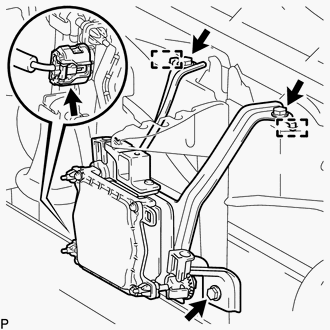

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    GTY414738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the 3 bolts.
    3. Detach the 2 guides and remove the millimeter wave radar sensor assembly.
