Home >> Lexus >> 2017 >> GS 200t Base >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Interior Panels / Trim (Service Information) >> Roof Headlining >> Removal [10/2015 - ] >> Procedure

Removal [10/2015 - ]: Procedure

  1. DISABLE AUTO TILT AWAY FUNCTION
    1. Disable the auto away/return function by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [09/2014 - ]

      WARNING:

      Record the current customize parameter setting (whether the auto away/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the auto away/return function to be disabled when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the engine switch off.
  2. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - ]

  4. REMOVE FRONT SEAT ASSEMBLY LH
    1. for Sports Seat Type:

      Refer to REMOVAL [09/2014 - ]

    2. for Luxury Seat Type:

      Refer to REMOVAL [09/2014 - ]

    3. for Standard Seat Type:

      Refer to REMOVAL [09/2014 - ]

  5. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

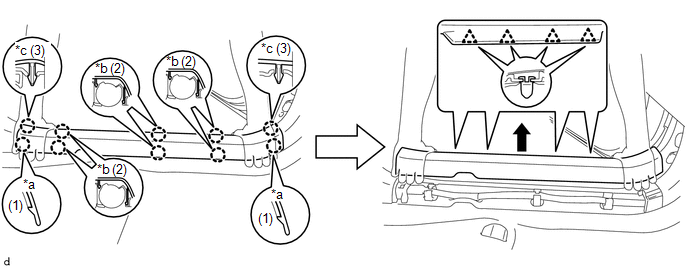

  7. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Place your hands on the inner portion of the front door scuff plate LH and detach the 2 claws labeled A, 6 claws labeled B and 2 claws labeled C in the order shown in the illustration.
    2. Raise the front door scuff plate LH to detach the 4 clips on the outer side and remove it.
      GTY528690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw A *b Claw B
      *c Claw C - -
  8. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE FRONT DOOR OPENING TRIM COVER LH

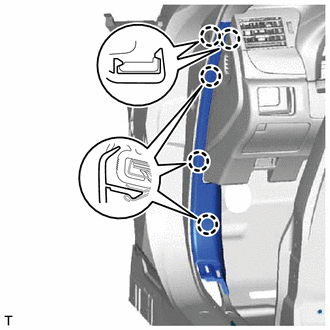

    GTY411338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 5 claws and remove the front door opening trim cover LH.
  10. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure described for the LH side.

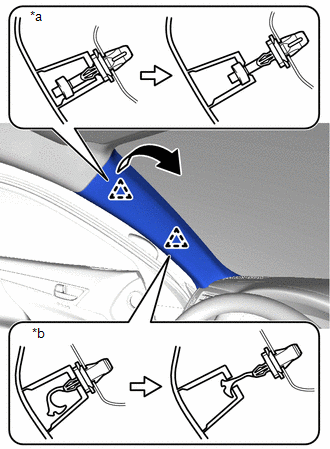

  11. REMOVE FRONT PILLAR GARNISH LH
    GTY533868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front Pillar Garnish Clip A
    *b Front Pillar Garnish Clip B
    1. Pull up the front pillar garnish LH to detach the front pillar garnish clip A and front pillar garnish clip B as shown in the illustration.

      HINT:

      Make the front pillar garnish assembly LH hang down from the front pillar garnish clip A and front pillar garnish clip B.

    2. Using your fingers, grasp the parts indicated by the arrows shown in the illustration and remove the front pillar garnish clip A.
      NOTE:

      If the front pillar garnish clip A is damaged, replace it with a new one.

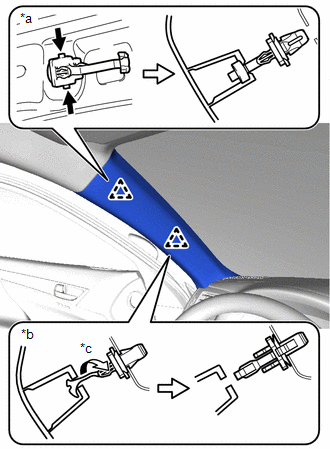

      GTY525584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Pillar Garnish Clip A
      *b Front Pillar Garnish Clip B
      *c 90°
    3. Turn the end of the front pillar garnish clip B 90° with needle-nose pliers and remove it from the front pillar garnish LH.
      NOTE:

      If the front pillar garnish clip B is damaged, replace it with a new one.

    4. When the front pillar garnish clip A cannot be removed by using your fingers:
      1. While pressing the part indicated by the arrow shown in the illustration with your finger, lift the front pillar garnish clip A in direction A.
        GTY527905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. While pulling in direction B, push the part indicated by the arrow shown in the illustration with the end of a screwdriver to remove the front pillar garnish clip A.
        NOTE:

        If the front pillar garnish clip A is damaged, replace it with a new one.

        GTY534681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

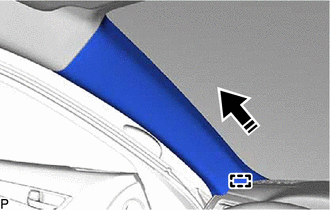

    5. Detach the guide and remove the front pillar garnish LH.
      GTY531849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

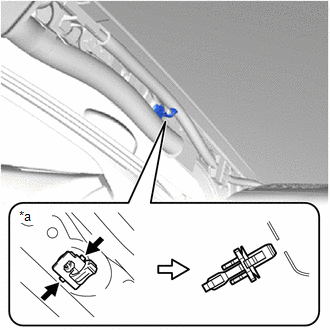

    6. Using your fingers, grasp the parts indicated by the arrows shown in the illustration and remove the front pillar garnish clip B.
      GTY525094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Pillar Garnish Clip B
    7. When the front pillar garnish clip B cannot be removed by using your fingers:
      1. While pressing the part indicated by the arrow shown in the illustration with your finger, lift the front pillar garnish clip B in direction B.
        GTY532519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. While pulling in direction B, push the part indicated by the arrow shown in the illustration with the end of a screwdriver to remove the front pillar garnish clip B.
        NOTE:

        If the front pillar garnish clip B is damaged, replace it with a new one.

        GTY529605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

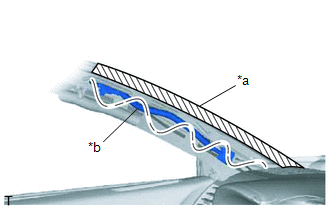

    8. GTY524693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Adhesive Tape
      *b Protective Cover

      Protect the curtain shield airbag assembly.

      1. Completely cover the airbag with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

  12. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  13. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  14. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

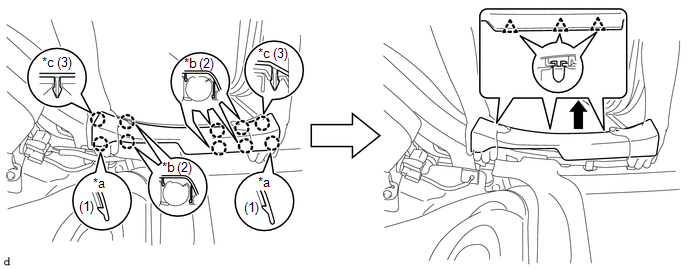

  15. REMOVE REAR DOOR SCUFF PLATE LH
    1. Place your hands on the inner portion of the rear door scuff plate LH and detach the 2 claws labeled A, 6 claws labeled B and 2 claws labeled C in the order shown in the illustration.
    2. Raise the rear door scuff plate LH to detach the 4 clips on the outer side and remove it.
      GTY527636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw A *b Claw B
      *c Claw C - -
  16. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

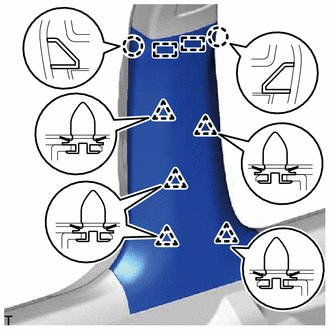

  17. REMOVE LOWER CENTER PILLAR GARNISH LH
    GTY411336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Pull both sides of the lower center pillar garnish LH outward to detach the 2 claws.
    2. Detach the 5 clips and 2 guides and remove the lower center pillar garnish LH.
  18. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

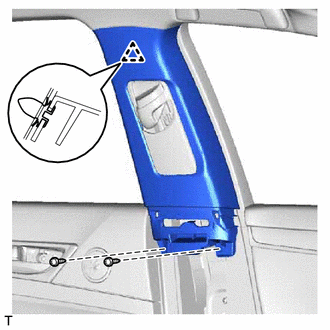

  19. REMOVE UPPER CENTER PILLAR GARNISH LH
    GTY411333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws.
    2. Detach the clip.
    3. Pass the front seat outer belt floor anchor through the center pillar garnish, and remove the center pillar garnish LH.
  20. REMOVE UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

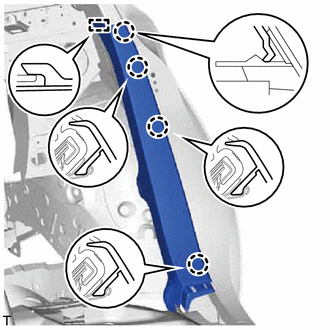

  21. REMOVE REAR SEAT SIDE GARNISH LH
    GTY411332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and guide and remove the rear seat side garnish LH.
  22. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE INNER ROOF SIDE GARNISH LH

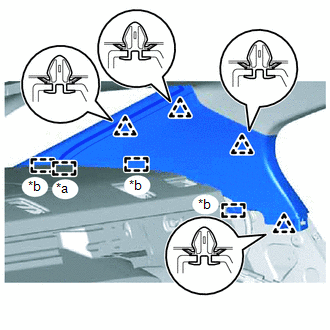

    1. w/ Rear Sunshade:
      1. Detach the 4 clips.
        GTY529788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a End Of The Rear Window Shade Assembly
        *b Guide
      2. Detach the 3 guides and the end of the rear window shade assembly, and then remove the inner roof side garnish LH.

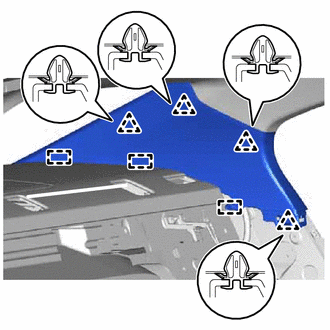

    2. w/o Rear Sunshade:
      1. Detach the 4 clips and 3 guides and remove the inner roof side garnish LH.
        GTY411327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INNER ROOF SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  25. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  26. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  27. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  28. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)

    Refer to PROCEDURE - Step 1

  29. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  30. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  31. REMOVE VISOR BRACKET COVER

    HINT:

    Use the same procedure for both visor bracket covers.

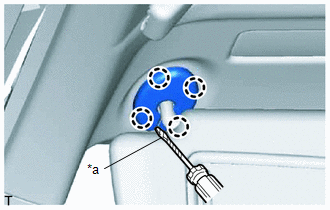

    1. Using a screwdriver, detach the 4 claws and remove the visor bracket cover.
      GTY523508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

  32. REMOVE VISOR ASSEMBLY LH

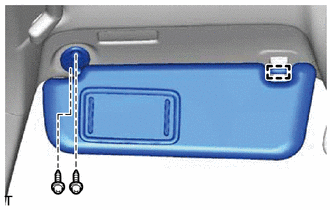

    GTY411326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the guide.
    2. Remove the 2 screws and visor assembly LH.
  33. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  34. REMOVE VISOR HOLDER

    HINT:

    Use the same procedure for both visor holders.

    1. Turn the visor holder clockwise approximately 45° and pull it out as shown in the illustration.
      GTY403820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the visor holder.

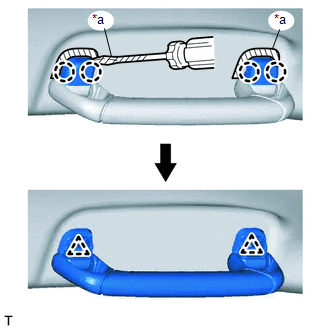

  35. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure for both assist grip sub-assemblies.

    1. Put protective tape around the assist grip covers.
      GTY531429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    2. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    3. Detach the 2 clips and remove the assist grip sub-assembly.
    4. Remove the 2 clips from the vehicle body.

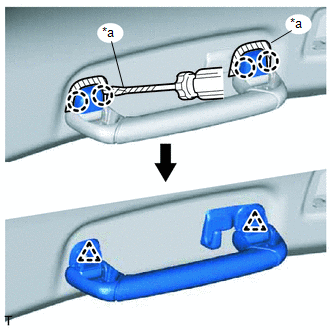

  36. REMOVE REAR ASSIST GRIP ASSEMBLY LH
    GTY537739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Protective Tape
    1. Put protective tape around the assist grip covers.
    2. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    3. Detach the 2 clips and remove the rear assist grip assembly LH.
    4. Remove the 2 clips from the vehicle body.
  37. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  38. REMOVE ROOF HEADLINING ASSEMBLY

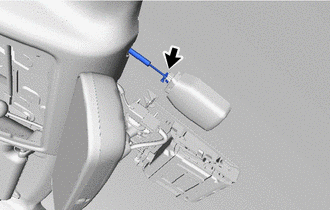

    1. w/ Rain Sensor:
      1. Disconnect the connector.
        GTY523155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

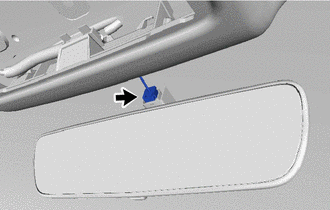

    2. w/o Pre-collision System:
      1. Disconnect the connector.
        GTY522275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

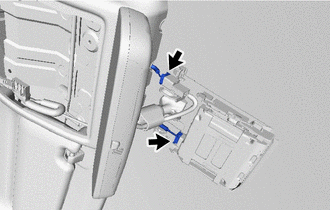

    3. w/ Pre-collision System:
      1. Disconnect the connectors.
        GTY522256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

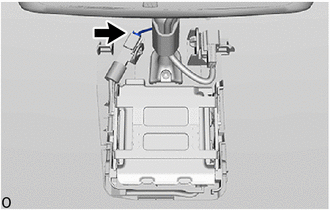

    4. w/ Camera Heater:
      1. Disconnect the connector.
        GTY799748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

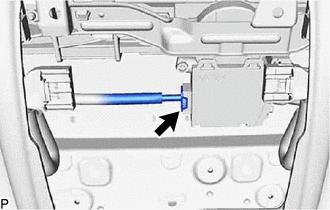

    5. w/ Sliding Roof:
      1. Disconnect the connector.
        GTY537655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

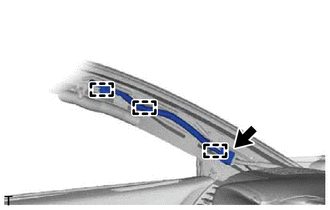

    6. GTY411330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector and detach the 3 clamps from the front pillar LH.

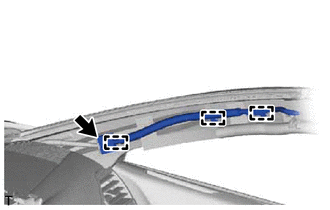

    7. GTY411328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector and detach the 3 clamps from the front pillar RH.

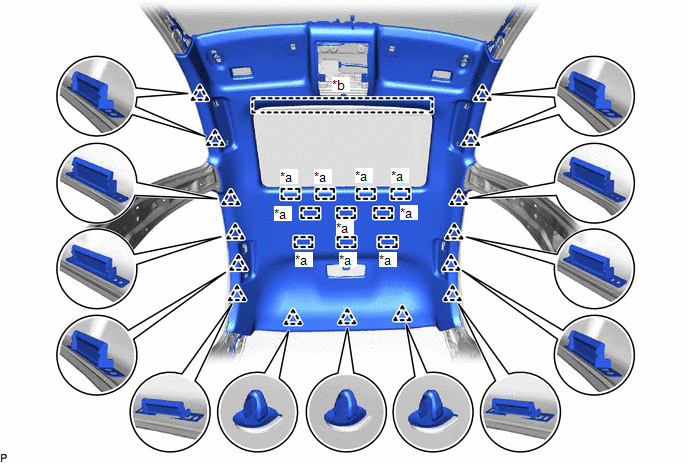

    8. w/ Sliding Roof:
      1. Detach the 10 fasteners and 15 clips.
      2. Detach the guide.
        GTY531089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fastener *b Guide

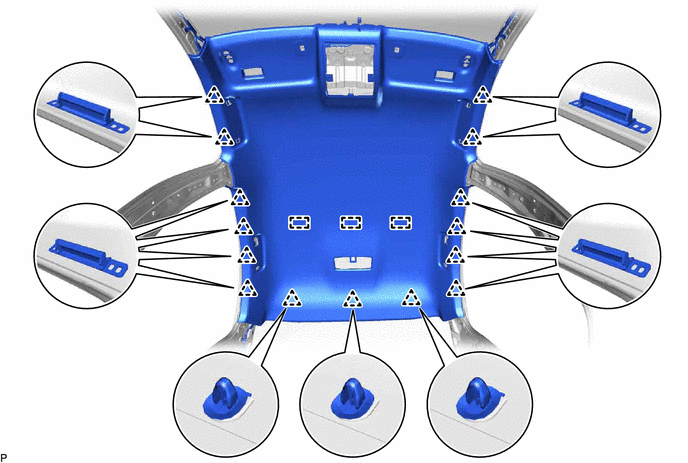

    9. w/o Sliding Roof:
      1. Detach the 3 fasteners and 15 clips.
        GTY537653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

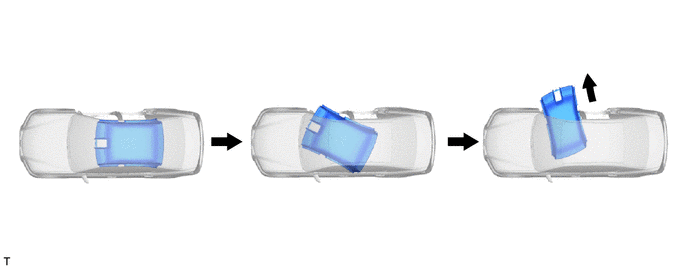

    10. Move the roof headlining assembly as shown in the illustration and remove it from the right front door.
      NOTE:
      • Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.
      • Do not damage the roof headlining assembly or vehicle interior.
      GTY411317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

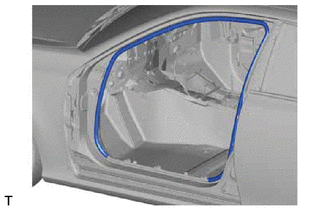

  39. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    GTY411329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the front door opening trim weatherstrip LH.

      HINT:

      Remove any remaining sealer from the vehicle body.

  40. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

  41. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

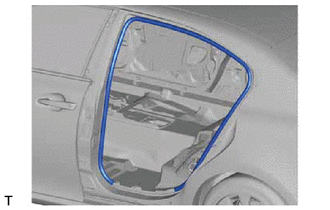

    GTY411325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear door opening trim weatherstrip LH.

      HINT:

      Remove any remaining sealer from the vehicle body.

  42. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure described for the LH side.

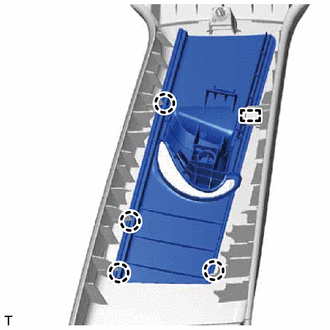

  43. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    GTY411324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and guide and remove the front shoulder belt anchor plate sub-assembly LH.
  44. REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.
