Removal [09/2014 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

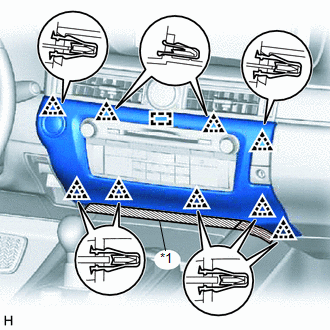

    GTY648525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the center instrument cluster finish panel.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 9 clips and guide.
    3. Disconnect the connector and remove the center instrument cluster finish panel.
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

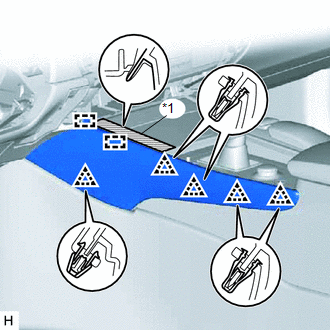

    GTY655229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument panel finish panel end LH.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 5 clips and 2 guides and remove the instrument panel finish panel end LH.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

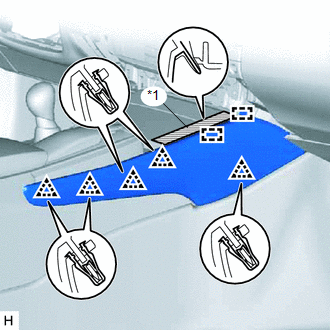

    GTY664627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Put protective tape around the instrument panel finish panel end RH.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Detach the 5 clips and 2 guides and remove the instrument panel finish panel end RH.
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Detach the claw and slide the shifting hole cover downwards.
    2. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.

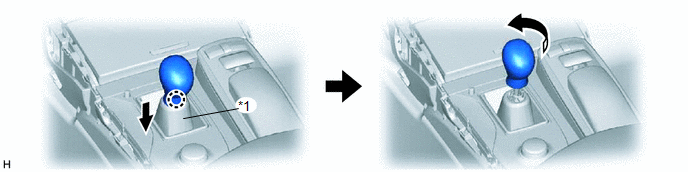

      GTY530634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Shifting Hole Cover - -
  5. REMOVE UPPER CONSOLE PANEL

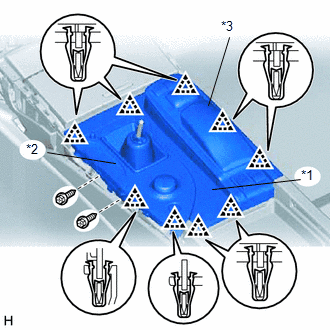

    GTY530199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws.
    2. Detach the 9 clips.
    3. Disconnect the connectors, detach the clamps, and remove the upper console panel together with the upper rear console panel sub-assembly and remote touch assembly.
      TEXT IN ILLUSTRATION

      *1 Upper Console Panel
      *2 Upper Rear Console Panel Sub-assembly
      *3 Remote Touch Assembly
  6. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY

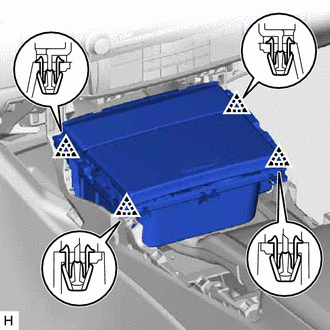

    GTY415303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips.
    2. Disconnect the connector and remove the instrument panel cup holder assembly.
  7. REMOVE REAR CONSOLE END PANEL

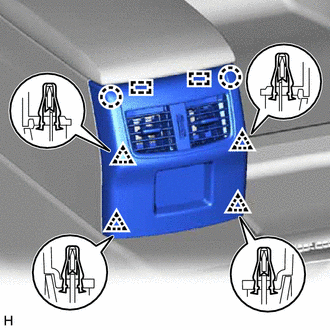

    GTY420135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips, 2 claws and 2 guides.
    2. Disconnect the connector and remove the rear console end panel.
  8. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect the connectors and detach the clamp.
    2. Remove the 2 screws, 5 bolts and console box assembly.

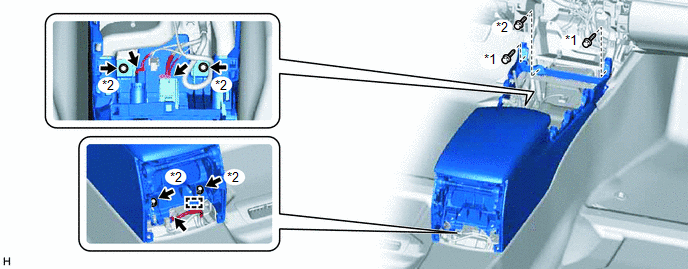

      GTY531100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Screw *2 Bolt
