Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 1

  2. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 26

  4. REMOVE CLOCK ASSEMBLY

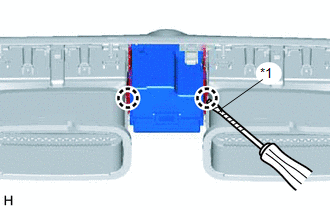

    GTY530811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 2 claws and remove the clock assembly.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
