Removal [04/2013 - 10/2017]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - 09/2020]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to REMOVAL [04/2013 - 10/2016] , or refer to REMOVAL [10/2016 - 09/2020]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 3 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 10/2017]

  4. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 20 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 20 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 19 [10/2016 - 10/2017]

  5. REMOVE ENGINE UNDER COVER
  6. DRAIN ENGINE COOLANT

    See step  4[04/2013 - 08/2015], or see step  4[08/2015 - 10/2017]

  7. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 6 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2019]

  8. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

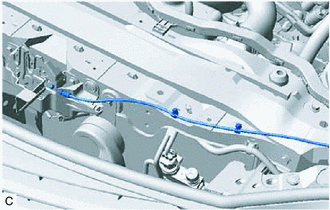

    1. Disengage the 2 clamps and disconnect the hood lock control cable assembly from the upper radiator support sub-assembly.
      GTY457980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 6 [10/2016 - 09/2019]

  10. REMOVE RADIATOR RESERVE TANK ASSEMBLY

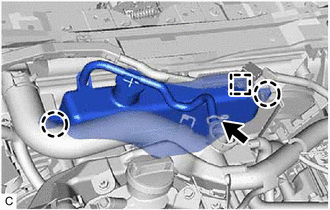

    1. Slide the clip and disconnect the radiator reserve tank hose from the water inlet.
      GTY466700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the clamp and wire harness from the radiator reserve tank assembly.
    3. Disengage the 2 claws and remove the radiator reserve tank assembly from the fan shroud assembly.
  11. REMOVE NO. 1 RADIATOR HOSE

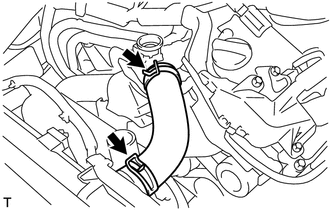

    1. Slide the 2 clips and remove the No. 1 radiator hose from the radiator assembly and water inlet.
      GTY403736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT NO. 2 RADIATOR HOSE

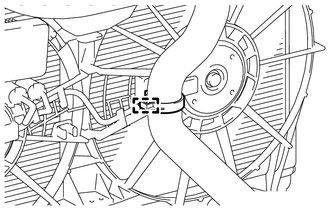

    1. Disengage the clamp and disconnect the No. 2 radiator hose from the radiator hose clamp.
      GTY463603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.

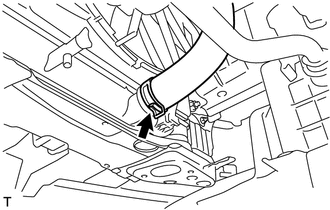

    3. Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.
      GTY403737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. DISCONNECT ENGINE ROOM MAIN WIRE

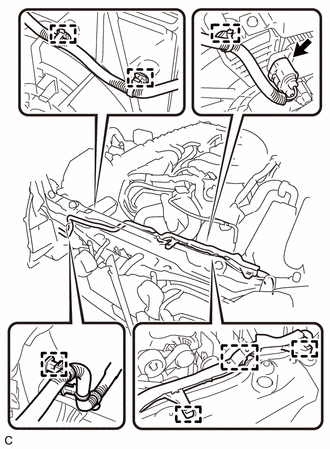

    1. Disconnect the cooling fan ECU connector.
      GTY466698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 clamps and disconnect the engine room main wire from the upper radiator support sub-assembly.
  14. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    GTY466697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

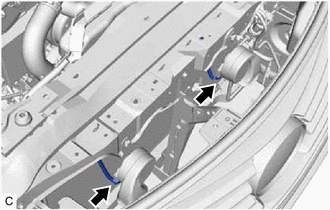

    1. Disconnect the 2 horn connectors.

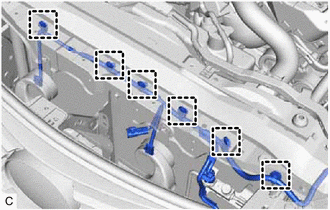

    2. Disengage the 6 clamps and disconnect the wire harness from the upper radiator support sub-assembly.
      GTY470829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

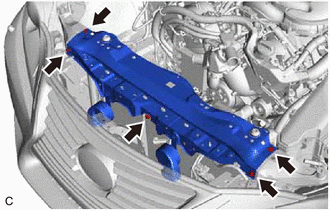

    3. Remove the 5 bolts and upper radiator support sub-assembly.
      GTY466699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. SEPARATE COOLER CONDENSER ASSEMBLY

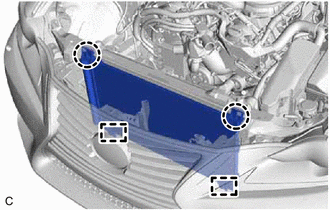

    1. Disengage the 2 claws.
      GTY466712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and separate the cooler condenser assembly from the radiator assembly.
      NOTE:

      Do not damage the cooler condenser assembly or radiator assembly when removing the cooler condenser assembly.

  16. REMOVE ENGINE ROOM ECU OUTLET DUCT
    GTY469814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

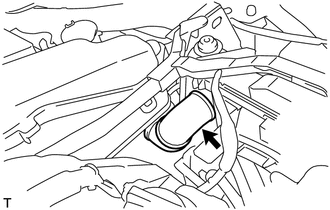

    1. Remove the engine room ECU outlet duct from the fan shroud assembly.
  17. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly with the fan shroud assembly from the vehicle.
      NOTE:

      Do not apply excessive force to the condenser assembly or pipe when removing the radiator assembly.

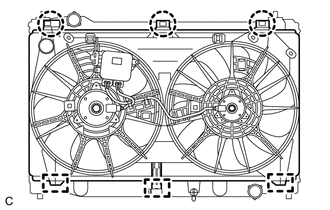

    2. Disengage the 3 claws.
      GTY463747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides and remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  18. REMOVE RADIATOR SUPPORT CUSHION
    1. Remove the 2 radiator support cushions from the radiator assembly.
  19. REMOVE LOWER RADIATOR SUPPORT
    1. Remove the 2 lower radiator supports from the radiator assembly.
