Removal [10/2016 - 09/2019]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 9 [10/2017 - 09/2020]

  3. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 10 [10/2017 - 09/2020]

  4. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. for Type A:
      1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
        GTY810464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        When changing the hood lock control lever sub-assembly from type A to type B, the hood lock control cable assembly must also be changed to type B.

    2. for Type B:
      1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
        GTY810465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        When changing the hood lock control lever sub-assembly from type B to type A, the hood lock control cable assembly must also be changed to type A.

  5. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

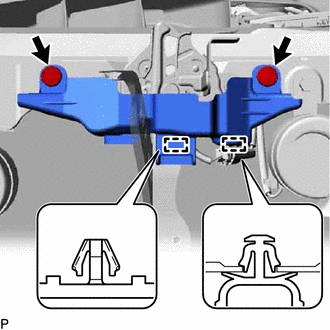

    1. Disengage the 2 clips.
      GTY465430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to remove the hood lock release lever protector.
  6. REMOVE HOOD LOCK ASSEMBLY

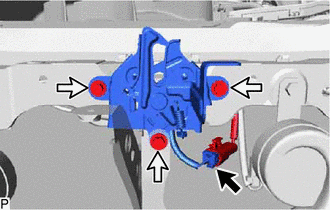

    1. Disconnect the connector.
      GTY465444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts.

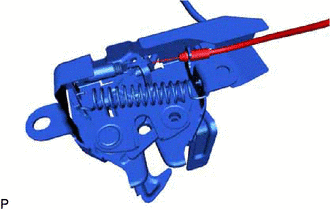

    3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.
      GTY462506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER FRONT FENDER PROTECTOR

    Refer to PROCEDURE - Step 2

  8. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie a string to the end of the hood lock control cable assembly.
      GTY366429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a length of string long enough to pass through the engine compartment.

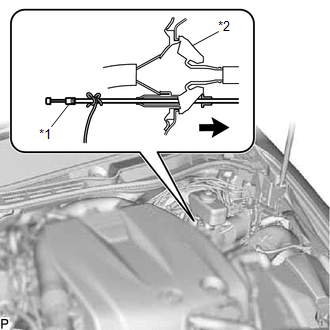

    2. Pull out the hood lock control cable assembly from the grommet as shown in the illustration.

      HINT:

      Leave the string inside the grommet.

      GTY463979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Grommet
    3. Disconnect the string from the hood lock control cable assembly.

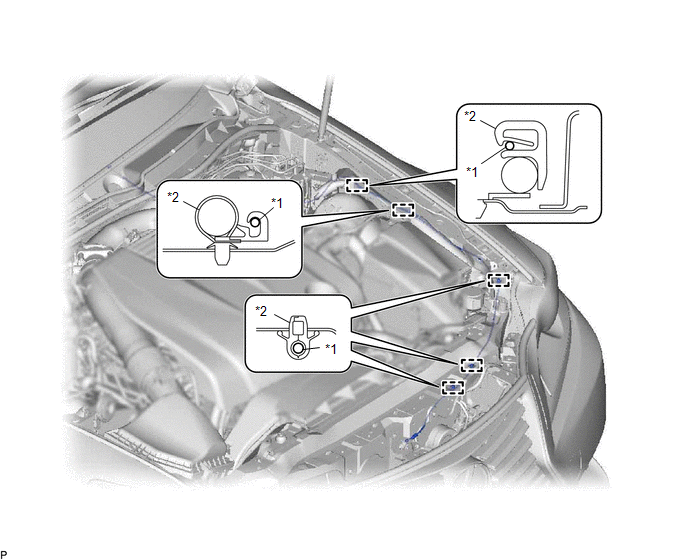

    4. Using a screwdriver, disengage the 5 clamps.
      GTY460302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly *2 Clamp

      HINT:

      Tape the screwdriver tip before use.

    5. Pull the hood lock control cable assembly from the engine compartment to remove it.

      HINT:

      • When changing the hood lock control cable assembly from type A to type B, the hood lock control lever sub-assembly must also be changed to type B.
      • When changing the hood lock control cable assembly from type B to type A, the hood lock control lever sub-assembly must also be changed to type A.
      GTY779828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
