REMOVAL (To 8/2009): Removal

PRECAUTION
WARNING:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and setting. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal (w/ Navigation System for HDD).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL - Step 3
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH . Refer to REMOVAL - Step 4
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 21
REMOVE INSTRUMENT PANEL GARNISH LH . Refer to REMOVAL - Step 22
REMOVE NO. 1 SWITCH HOLE BASE . Refer to REMOVAL - Step 23
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 24
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to REMOVAL - Step 9
REMOVE NO. 4 AIR DUCT SUB-ASSEMBLY

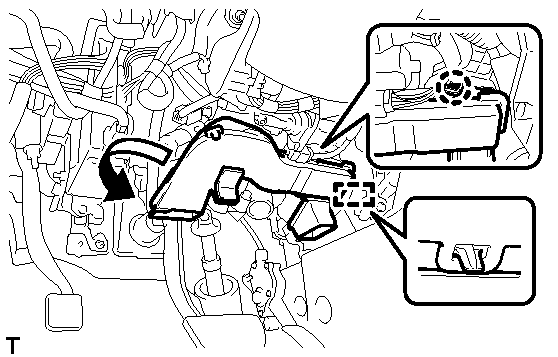

1. Disengage the claw and guide, and remove the No. 4 air duct sub-assembly.

  Fig 1: Disengage The Claw And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the claw or guide.
REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the brake pedal return spring from the push rod pin and instrument panel reinforcement.

  Fig 2: Remove the brake pedal return spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STOP LIGHT SWITCH ASSEMBLY . Refer to REMOVAL - Step 2
SEPARATE BRAKE MASTER CYLINDER PUSH ROD CLEVIS

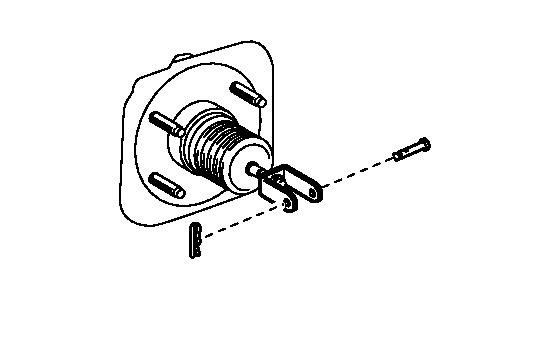

1. Remove the clip and push rod pin, and separate the brake master cylinder push rod clevis from the brake pedal sub-assembly.

  Fig 3: Remove The Clip And Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
1. Disconnect the brake pedal load sensing switch connector and disengage the clamp.

  Fig 4: Disconnect the brake pedal load sensing switch connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and separate the brake pedal support assembly from the instrument panel reinforcement.

  Fig 5: Remove the 2 bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 nuts and brake pedal support assembly from the body.

  Fig 6: Remove the 4 nuts and brake pedal support assembly
