REMOVAL (To 8/2009): Removal

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 21
  2. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.

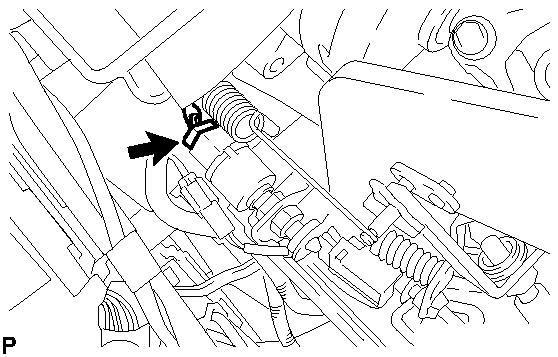

      Fig 1: Disconnect The Connector
      GTY260273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the stop light switch lock nut and remove the stop light switch assembly.

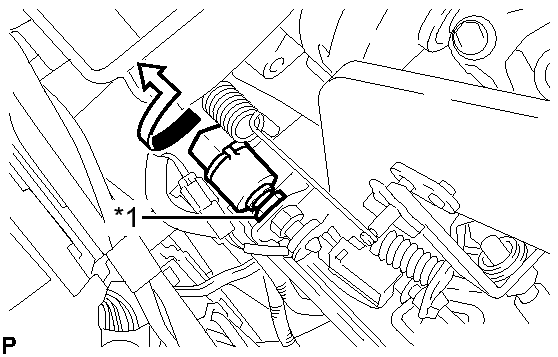

      Fig 2: Stop Light Switch Lock Nut
      GTY264129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Nut
