Problem Symptoms Table

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: PROBLEM SYMPTOMS TABLE

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: PROBLEM SYMPTOMS TABLE
HINT:
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

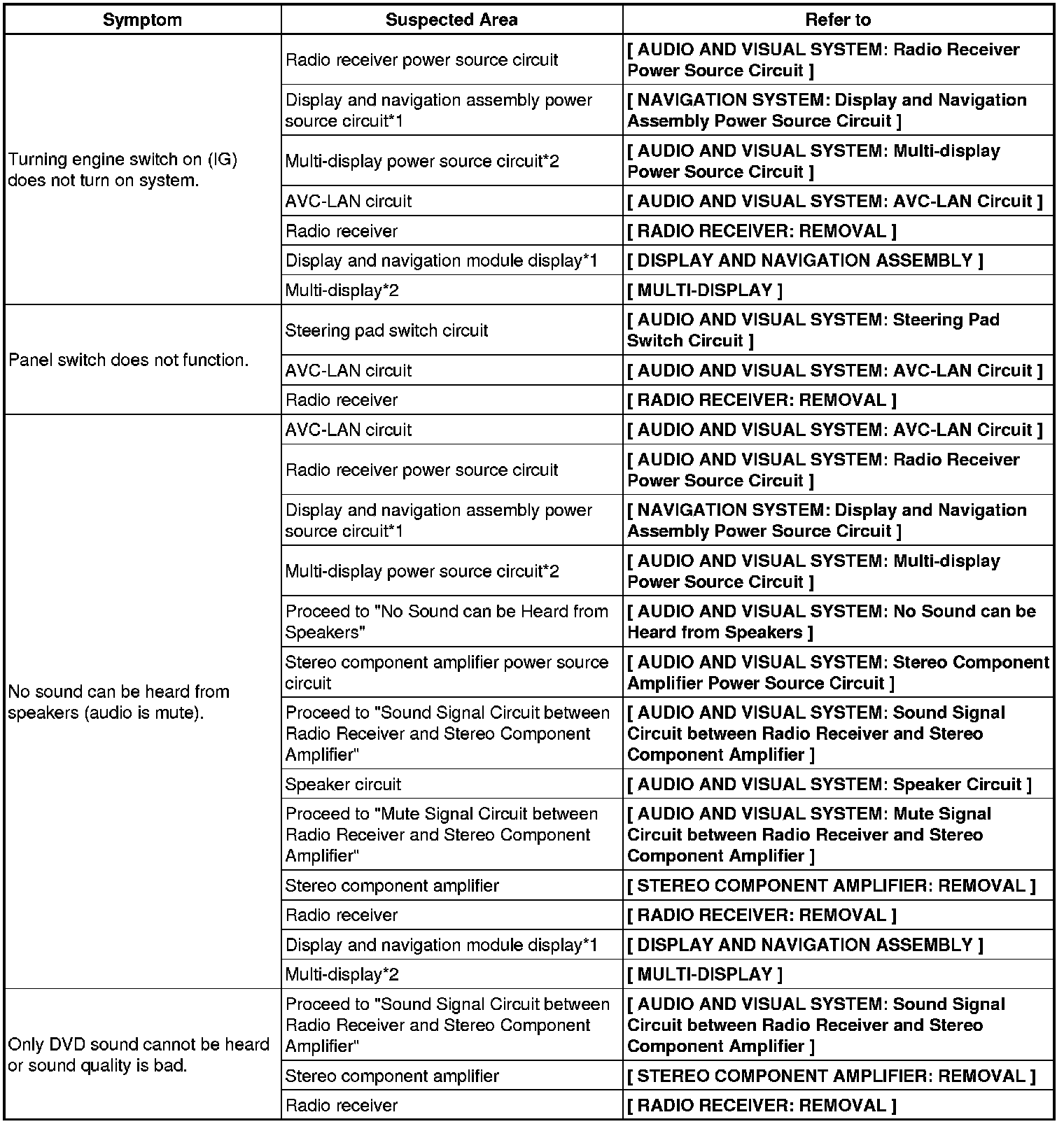

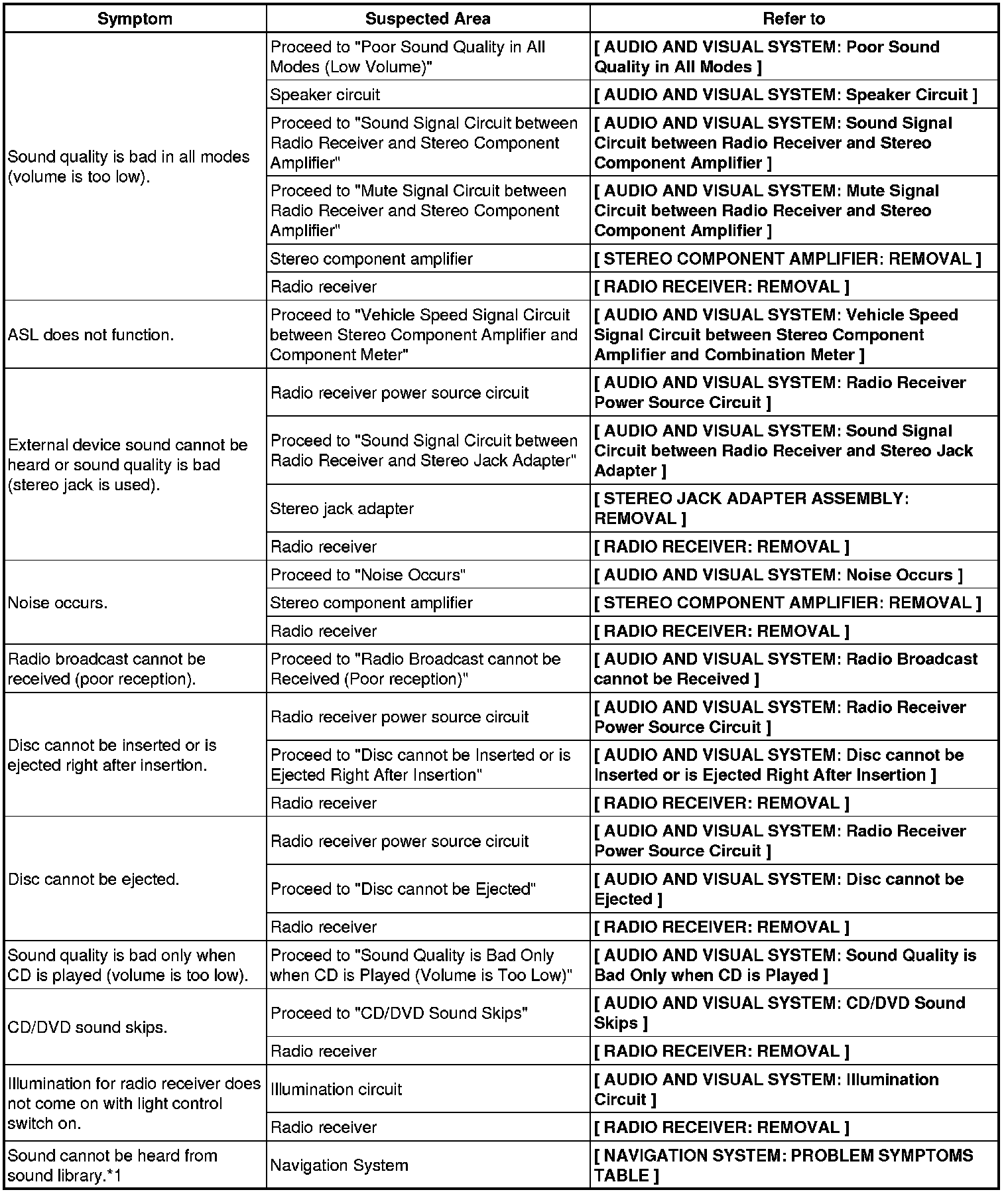

Audio Function

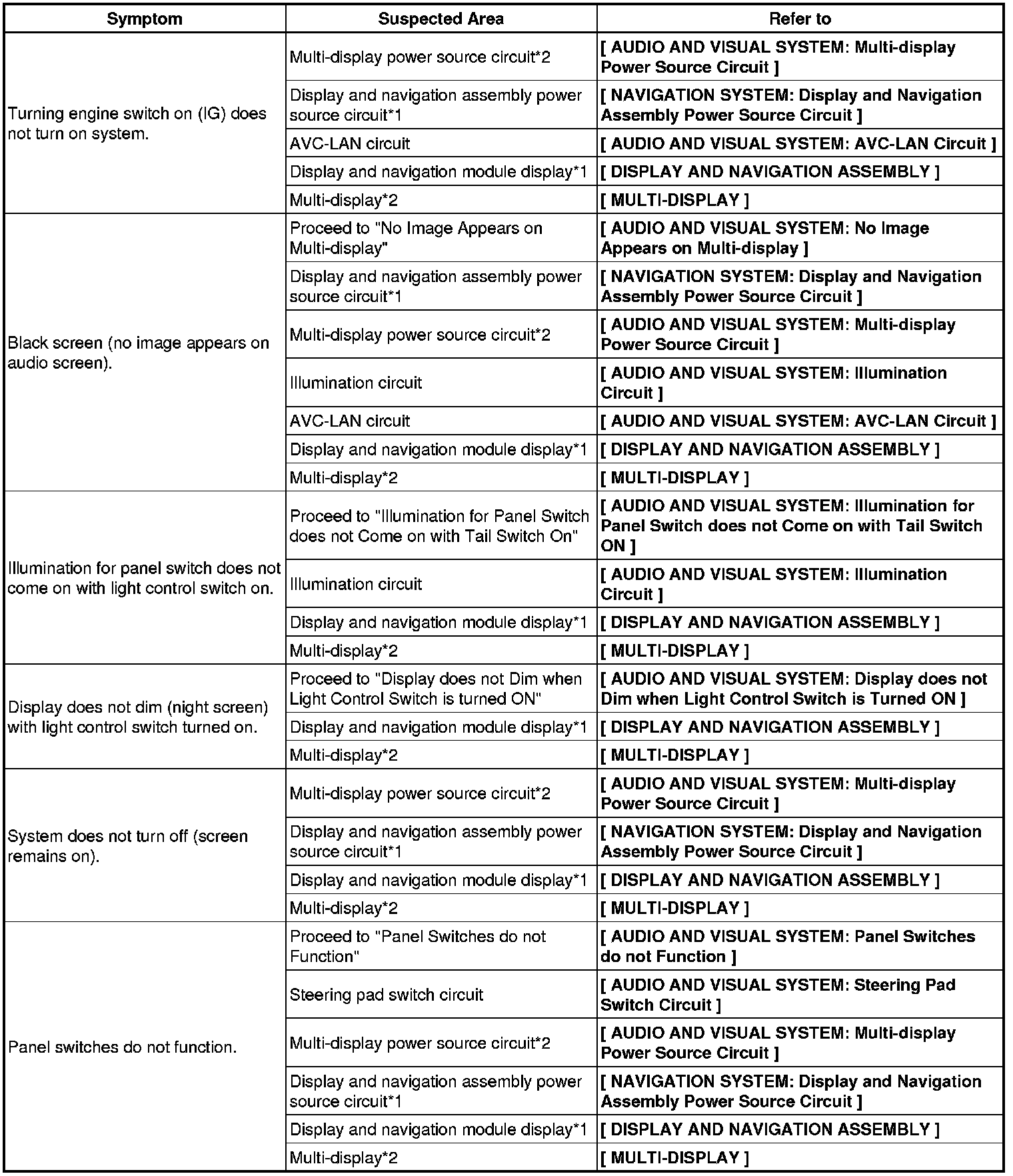

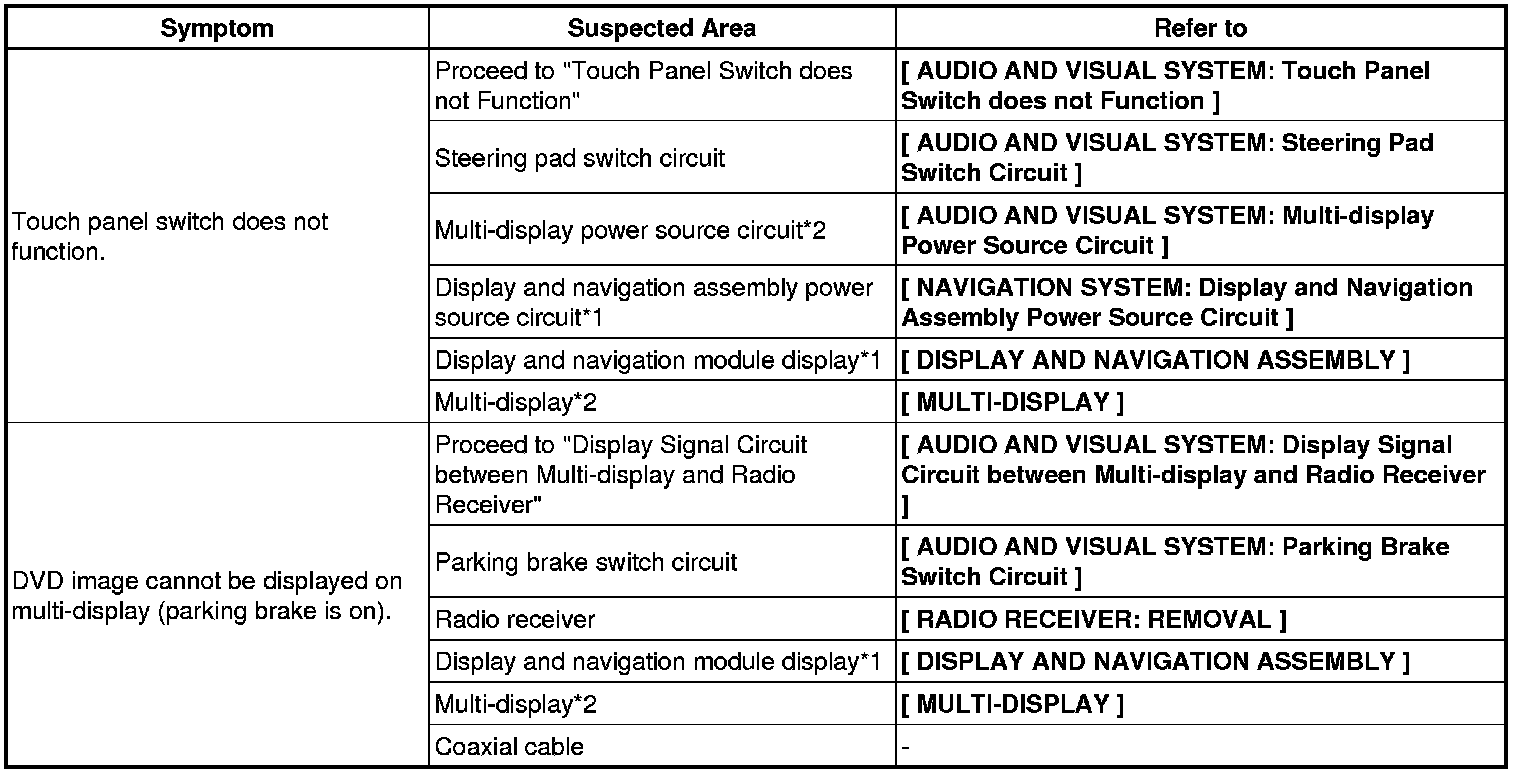

Display Function

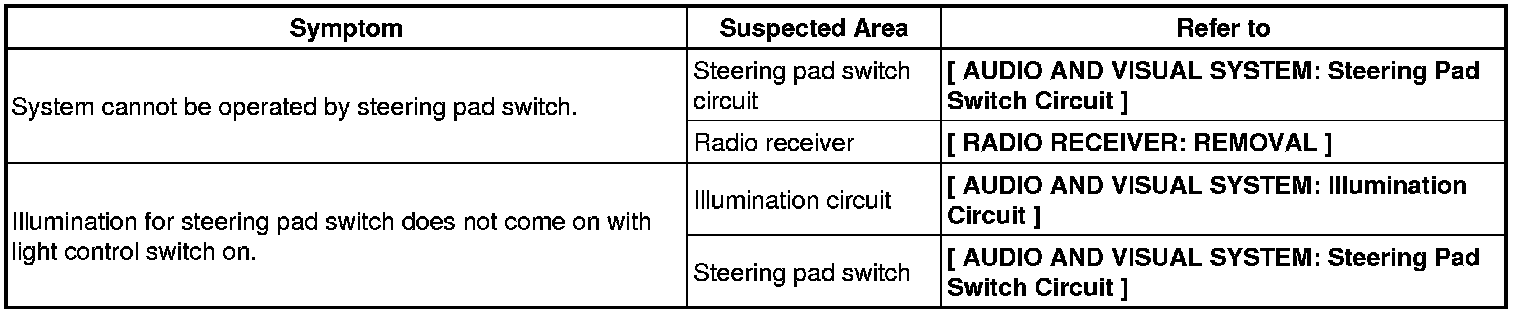

Steering Pad Switch Function

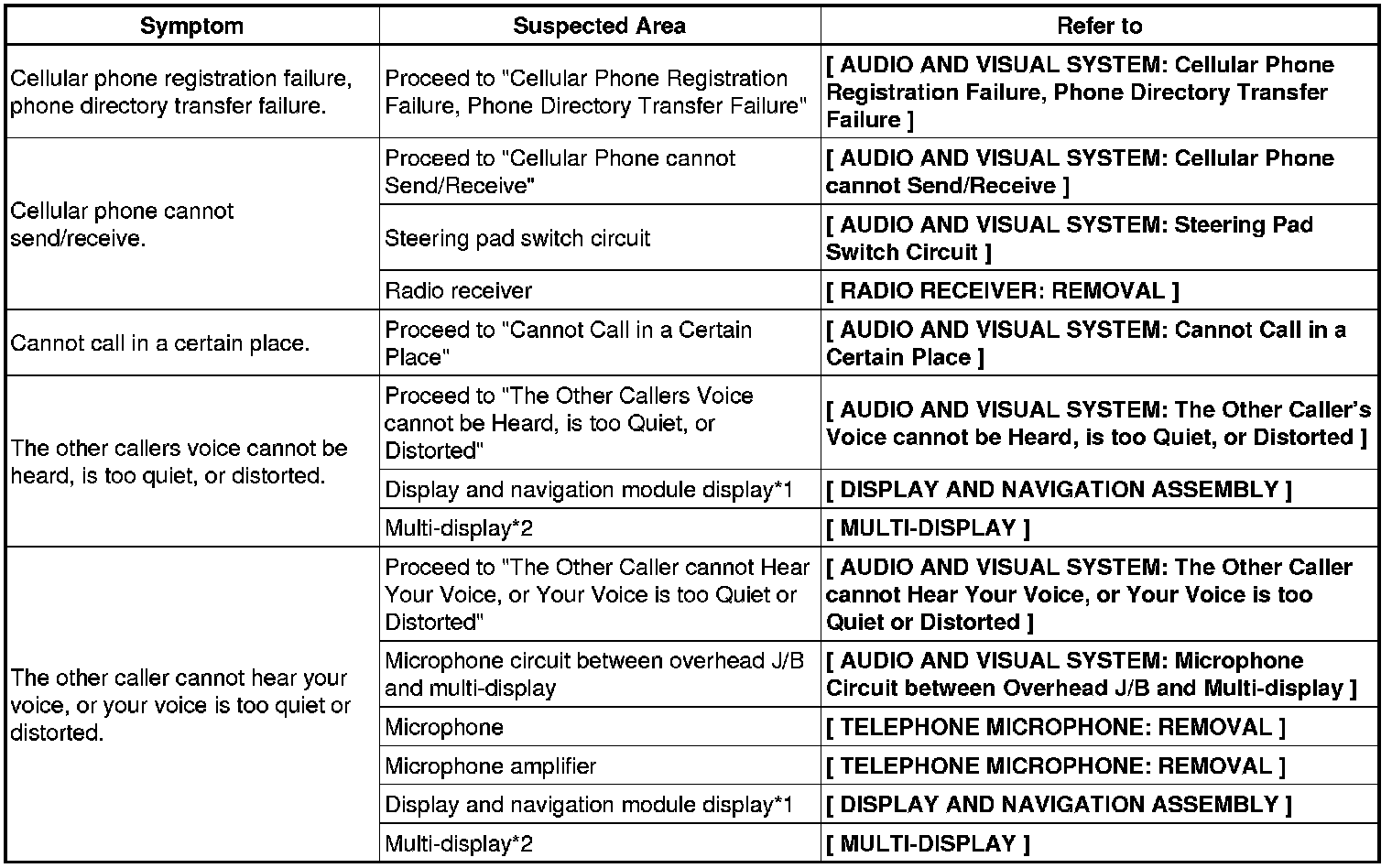

Bluetooth Function





- *1: w/ Navigation System
- *2: w/o Navigation System
