Hood Lock Control Cable Assembly: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  2. REMOVE ENGINE ROOM SIDE COVER  (See REMOVAL )
  3. REMOVE FRONT UPPER FENDER PROTECTOR  (See REMOVAL )
  4. REMOVE RADIATOR GRILLE PROTECTOR  (See REMOVAL )
  5. REMOVE FRONT BUMPER ASSEMBLY  (See REMOVAL )
  6. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)  (See REMOVAL )
  7. REMOVE LOW PITCHED HORN ASSEMBLY  (See REMOVAL )
  8. REMOVE HOOD LOCK CONTROL CABLE COVER
    1. Remove the 3 screws.
    2. Disengage the clamp and remove the hood lock control cable cover
      Fig 1: Identifying Hood Lock Control Cable Cover
      G05755960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HOOD LOCK NUT CAP
    1. Using a screwdriver, remove the hood lock nut cap as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use

      Fig 2: Removing Hood Lock Nut Cap
      G05755961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE HOOD LOCK ASSEMBLY
    1. Remove the 2 bolts and hood lock nut.
      Fig 3: Identifying Hood Lock Nut And Bolts
      G05755962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable assembly.
    3. Disconnect the connector and remove the hood lock assembly
    Fig 4: Identifying Hood Lock Control Cable Assembly
    G05755963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR SCUFF PLATE  (See REMOVAL )
  12. REMOVE FRONT DOOR OPENING TRIM COVER  (See REMOVAL )
  13. REMOVE SIDE INSTRUMENT PANEL  (See REMOVAL )
  14. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  15. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disengage the 3 claws.
    2. Disconnect the hood lock control cable and remove the hood lock control lever
      Fig 5: Identifying Hood Lock Control Lever Sub-Assembly
      G05755964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie a string to the end of the hood lock control cable assembly as shown in the illustration
      PART REFERENCE CHART

      Area Part Name
      A Hood lock control cable
      B Parking brake cable
      C Parking brake pedal
      NOTE: Use a length of string long enough to pass through the engine compartment.
      Fig 6: Identifying Hood Lock Control Cable Assembly
      G05755965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and remove the hood lock control cable assembly as shown in the illustration

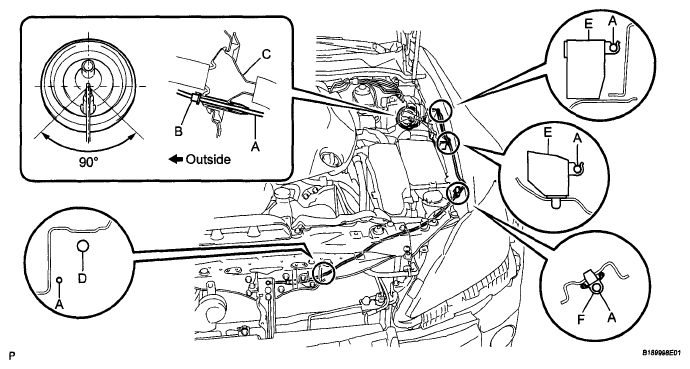

      Fig 7: Identifying Hood Lock Control Cable Assembly And Clamp
      G05755966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      PART REFERENCE CHART

      Area Part Name Area Part Name
      A Hood lock control cable D Wire harness
      B Stopper E Wire harness protector
      C Grommet F Clamp
