Washer Motor: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
    1. Install the windshield washer motor and pump assembly as shown in the illustration.
      Fig 1: Identifying Windshield Washer Motor And Pump Assembly Angle
      G05756330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY
    1. Install the windshield washer jar and pump assembly with the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 2: Identifying Windshield Washer Jar And Pump Assembly Bolts
      G05756327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the upper part of the windshield washer jar and pump assembly to the windshield washer jar and pump assembly.
    3. Install the bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    4. Connect each connector.
      Fig 3: Locating Upper Part Of Washer Jar And Pump
      G05756326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the washer hose to the windshield washer motor and pump assembly.
      Fig 4: Connecting Washer Hose To Windshield Washer Motor And Pump Assembly
      G05756333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY
    1. Install the screw.
    2. Install the No. 3 cool air intake duct sub-assembly with the 2 bolts

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

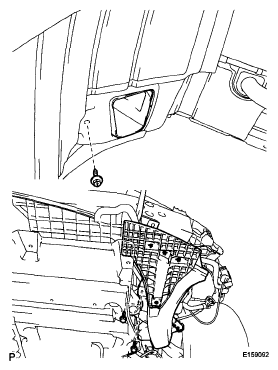

      Fig 5: Identifying Air Intake Duct Sub-Assembly Bolts And Screw
      G05756324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the engine under cover clip.
      Fig 6: Identifying Engine Under Cover Clip
      G05756323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 3 front fender liner LH screws.
    Fig 7: Locating Front Fender Liner LH Screws
    G05756322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL HEADLIGHT ASSEMBLY LH  (See INSTALLATION )
  5. INSTALL FRONT BUMPER ASSEMBLY  (See INSTALLATION )
  6. ADD WASHER FLUID  (See INSTALLATION  )
  7. INSTALL RADIATOR GRILLE PROTECTOR  (See INSTALLATION )
  8. INSTALL FRONT UPPER FENDER PROTECTOR LH  (See INSTALLATION  )
  9. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
  10. INSTALL COOL AIR INTAKE DUCT SEAL  (See INSTALLATION )
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  12. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT  (See ADJUSTMENT )
  13. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine)  (See ADJUSTMENT )
  14. PREPARATION FOR HEADLIGHT AIMING (Using a Screen)  (See ADJUSTMENT )
  15. INSPECT HEADLIGHT AIMING  (See ADJUSTMENT )
  16. ADJUST HEADLIGHT AIMING  (See ADJUSTMENT )
  17. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT  (See ADJUSTMENT )
  18. PREPARATION FOR FOG LIGHT AIMING  (See ADJUSTMENT )
  19. INSPECT FOG LIGHT AIMING  (See ADJUSTMENT )
  20. ADJUST FOG LIGHT AIMING  (See ADJUSTMENT )
