Headlight Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEADLIGHT ASSEMBLY
1. Engage the headlight bracket pin
2. Install the headlight assembly with the 3 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 1: Identifying Headlight Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

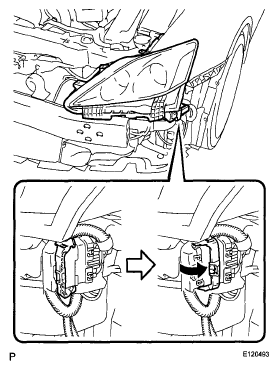

3. Connect the connector as shown in the illustration
Fig 2: Connecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT UPPER FENDER PROTECTOR LH (for LH Side) (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (for LH Side) (See INSTALLATION )
INSTALL FRONT UPPER FENDER PROTECTOR RH (for RH Side) (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (for RH Side) (See INSTALLATION )
INSTALL FRONT BUMPER ASSEMBLY (See INSTALLATION )
INSTALL RADIATOR GRILLE PROTECTOR (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
ADD WASHER FLUID (w/ Headlight Cleaner System) (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) (See ADJUSTMENT )
PREPARATION FOR HEADLIGHT AIMING (Using a screen) (See ADJUSTMENT )
INSPECT HEADLIGHT AIMING (See ADJUSTMENT )
ADJUST HEADLIGHT AIMING (See ADJUSTMENT )
VEHICLE PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
PREPARATION FOR FOG LIGHT AIMING (See ADJUSTMENT )
INSPECT FOG LIGHT AIMING (See ADJUSTMENT )
ADJUST FOG LIGHT AIMING (See ADJUSTMENT )
