Front Passenger Airbag Assembly: Disposal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.
  1. PRECAUTION

    HINT

    When scrapping a vehicle equipped with an SRS or disposing of the front passenger airbag assembly, be sure to deploy the airbag first in accordance with the procedure described below If any abnormality occurs with the airbag deployment, contact the Service Dept of TOYOTA MOTOR SALES, U S.A, INC

    CAUTION:
    • An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
    • Never dispose of a front passenger airbag assembly with an undeployed airbag.
    • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
    • When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
    • When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the front passenger airbag assembly.
    • The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
    • Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
    • Always wash your hands with water after completing the operation.
  2. DISPOSE OF FRONT PASSENGER AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)

    HINT:

    Prepare a battery as the power source to deploy the airbag

    1. Check the function of SST (See DISPOSAL  )
    2. Refer to PRECAUTION
    3. Disconnect the cable from the negative (-) battery terminal
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      Fig 1: Identifying SST (SRS Airbag Deployment Tool)
      G05757186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the glove compartment door assembly (See REMOVAL ).
    5. Install SST
      1. Disconnect the connector
        NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.
        Fig 2: Locating Connector
        G05757187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the SST connector to the instrument panel wire assembly

        SST 09082-00700, 09082-00780

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
        Fig 3: Connecting SST Connector To Instrument Panel Wire Assembly
        G05757188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Move SST at least 10 m (33 ft.) away from the vehicle front side window
      4. Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle
        NOTE: Take care not to damage the SST wire harness.
        Fig 4: Identifying Distance Between SST And Vehicle
        G05757189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal
    6. Deploy the airbag
      1. Check that no one is inside the vehicle or within a 10 m (33 ft) radius of the vehicle
      2. Press the SST activation switch and deploy the airbag
        CAUTION:
        • When deploying the airbag, make sure that no one is near the vehicle.
        • The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        • Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
        • Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
        • Always wash your hands with water after completing the operation.

        HINT

        The airbag is deployed as the LED of the SST activation switch comes on

  3. DISPOSE OF FRONT PASSENGER AIRBAG ASSEMBLY (WHEN NOT INSTALLED IN VEHICLE)
    NOTE:
    • When disposing of the front passenger airbag assembly, never use the customer's vehicle to deploy the airbag.
    • Be sure to follow the procedure detailed below when deploying the airbag.

    HINT

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST (See DISPOSAL  ).
    2. Remove the front passenger airbag assembly (See REMOVAL  )
      CAUTION:
      • When removing the front passenger airbag assembly, work must be started at least 90 seconds after turning the engine switch off and disconnecting the cable from the negative (-) battery terminal.
      • When storing the front passenger airbag assembly, keep the airbag deployment side facing upward.
        Fig 5: Identifying SST (SRS Airbag Deployment Tool)
        G05757190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install SST
      1. After connecting the following SST to each other, connect them to the front passenger airbag assembly.

        SST 09082-00802 (09082-10801, 09082-30801)

        Fig 6: Connecting SST To Front Passenger Airbag Assembly
        G05757191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using braided wire, tie down the front passenger airbag assembly to an unneeded tire

      Wire:

      Stripped wire section

      1.25 mm 2  (0.0019 in. 2  ) or more

      CAUTION: If the wire is too thin or an alternative object is used to tie down the front passenger airbag assembly, it may be snapped by the shock when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm2 (0.0019 in.2 ).
      Fig 7: Identifying Stripped Wire Section
      G05757192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT

      To calculate the area of the stripped wire section.

      Area = 3 14 x (Diameter)2 divided by 4

      1. Position the front passenger airbag assembly inside the tire with the airbag deployment side facing inside

        Minimum tire size:

        Must exceed the following dimensions

        Width:

        185 mm (7.28 in.)

        Inner diameter:

        360 mm (14.2 in.)

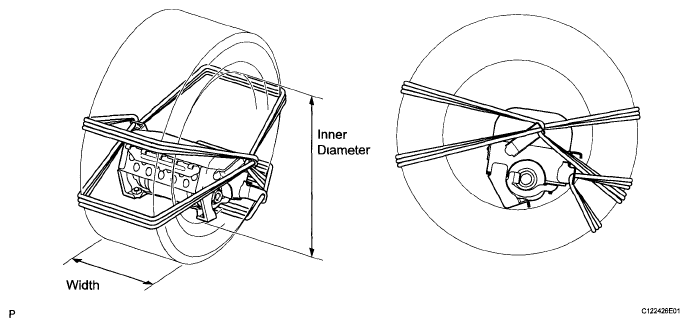

        Fig 8: Positioning Front Passenger Airbag Assembly Inside Tire
        G05757193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        CAUTION:
        • Make sure that the wires are tight. If there is slack in the wires, the front passenger airbag assembly may break loose due to the shock when the airbag is deployed.
        • Always tie down the front passenger airbag assembly with the airbag deployment side facing inside the tire as shown in the illustration.
        NOTE: The tire will be marked by the airbag deployment, so use an unneeded tire.
    5. Place the tires.
      1. Place at least 2 tires under the tire tied to the front passenger airbag assembly.
      2. Place at least 2 tires onto the tire tied to the front passenger airbag assembly. The top tire should have a wheel installed.
        NOTE: Do not place the SST connector under the tire because it could be damaged.
        Fig 9: Placing Tires
        G05757194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Tie the tires together with the 2 wires.
        CAUTION: Make sure that the wires are tight. Looseness in the wires results in the tires breaking loose due to the shock when the airbag is deployed.
        Fig 10: Tying Tires Together With Wires
        G05757195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install SST.
      1. Connect the SST connector.

        SST 09082-00700

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the tire.
      2. Move SST at least 10 m (33 ft) away from the airbag tied down to the tire.
        Fig 11: Identifying Distance Between SST And Airbag
        G05757196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Deploy the airbag.
      1. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
      2. Check that no one is within a 10 m (33 ft.) radius of the tire which the front passenger airbag assembly is tied to.
      3. Press the SST activation switch and deploy the airbag.
        CAUTION: When deploying the airbag, make sure that no one is near the tire.

        HINT

        The airbag is deployed as the LED of the SST activation switch comes on.

    8. Dispose of the front passenger airbag assembly.
      CAUTION:
      • The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
      • Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
      • Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
      • Always wash your hands with water after completing the operation.
        Fig 12: Placing Front Passenger Airbag Assembly In Plastic Bag
        G05757197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the front passenger airbag assembly from the tire.
      2. Place the front passenger airbag assembly in a plastic bag, tie it tightly, and dispose of it according to local regulations
