Steering Pad: Disposal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.
  1. PRECAUTION

    HINT

    When scrapping a vehicle equipped with an SRS or disposing of the steering pad, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the Service Dept. of TOYOTA MOTOR SALES, U.S.A., INC.

    CAUTION:
    • An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
    • Never dispose of a steering pad with an undeployed airbag.
    • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
    • When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
    • When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the steering pad.
    • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
    • Do not apply water, etc. to a steering pad with a deployed airbag.
    • Always wash your hands with water after completing the operation.
  2. DISPOSE OF STEERING PAD (WHEN INSTALLED IN VEHICLE)

    HINT

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST

      SST 09082-00700

      CAUTION: When deploying the airbag, always use the specified SST:
      SRS Airbag Deployment Tool
      Fig 1: Identifying SST (SRS Airbag Deployment Tool)
      G05757146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect SST to the battery.

        Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal

        Fig 2: Connecting SST To Battery
        G05757147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the function of SST.

        Press the SST activation switch and check that the LED of the SST activation switch comes on.

        CAUTION:
        • Do not connect the SST connector (yellow colored one) to the airbag.
        • If the LED comes on when the activation switch is not being pressed, an SST malfunction is possible, so replace SST with a new one.
      3. Disconnect SST from the battery.
        Fig 3: Locating SST Activation Switch
        G05757148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Refer to PRECAUTION
    3. Remove the steering column cover (lower).
      1. While turning the steering wheel assembly to the right and left, remove the 3 screws and steering column cover (lower).
    4. Disconnect the cable from the negative (-) battery terminal.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      Fig 4: Turning Steering Wheel Assembly
      G05757149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install SST.
      CAUTION: Check that there is no looseness in the steering wheel assembly and steering pad.
      1. Disconnect the airbag connector (yellow colored one) from the spiral cable
        NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.
      2. Connect the SST connector to the airbag connector of the spiral cable.

        SST 09082-00700, 09082-00780

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
        Fig 5: Connecting SST Connector To Airbag Connector
        G05757150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Move SST at least 10 m (33 ft.) away from the vehicle front side window.
      4. Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle
        NOTE: Take care not to damage the SST wire harness.
        Fig 6: Identifying Distance Between SST And Vehicle
        G05757151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
    6. Deploy the airbag.
      1. Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.
      2. Press the SST activation switch and deploy the airbag.
        CAUTION:
        • When deploying the airbag, make sure that no one is near the vehicle.
        • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
        • Do not apply water, etc. to a steering pad with a deployed airbag.
        • Always wash your hands with water after completing the operation.

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

  3. DISPOSE OF STEERING PAD (WHEN NOT INSTALLED IN VEHICLE)
    NOTE:
    • When disposing of the steering pad, never use the customer's vehicle to deploy the airbag.
    • Be sure to follow the procedure detailed below when deploying the airbag.

    HINT:

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST.

      SST 09082-00700

      CAUTION: When deploying the airbag, always use the specified SST:
      SRS Airbag Deployment Tool
      Fig 7: Identifying SST (SRS Airbag Deployment Tool)
      G05757152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect SST to the battery.

        Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

        Fig 8: Connecting SST To Battery
        G05757153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the function of SST.

        Press the SST activation switch and check that the LED of the SST activation switch comes on.

        CAUTION:
        • Do not connect the SST connector (yellow colored one) to the airbag.
        • If the LED comes on when the activation switch is not being pressed, an SST malfunction is possible, so replace SST with a new one.
      3. Disconnect SST from the battery.
        Fig 9: Locating SST Activation Switch
        G05757154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the steering pad (See REMOVAL  ).
      CAUTION:
      • When removing the steering pad, work must be started at least 90 seconds after turning the engine switch off and disconnecting the cable from the negative (-) battery terminal.
      • When storing the steering pad, keep the airbag deployment side facing upward.
    3. Using braided wire, tie down the steering pad to an unneeded wheel.

      Wire:

      Stripped wire section

      1.25 mm 2  (0.0019 in. 2  ) or more

      Fig 10: Identifying Stripped Wire Section
      G05757155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: If the wire is too thin or an alternative object is used to tie down the steering pad, it may be snapped by the shock when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm2 (0.0019 in.2 ).

      HINT:

      To calculate the area of the stripped wire section:

      Area = 3.14 x (Diameter)2 divided by 4

      1. Install the 2 bolts with washers into the 2 bolt holes on the steering pad

        Bolt:

        L:

        35.0 mm (1.38 in.)

        M:

        6.0 mm (0.236 in.)

        Pitch:

        1.0 mm (0.0394 in.)

        Fig 11: Identifying Bolts With Washers
        G05757156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Tighten the bolts by hand until they become difficult to turn.
        • Do not tighten the bolts excessively.
      2. After connecting the following SST to each other, connect them to the steering pad

        SST 09082-00802 (09082-10801, 09082-30801)

        Fig 12: Connecting SST To Steering Pad
        G05757157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Wind 3 wires at least 2 times each around each of the bolts installed on the left and right sides of the steering pad.
        CAUTION:
        • Tightly wind the wires around the bolts without any slack.
        • Make sure that the wires are tight. If there is slack in the wires, the steering pad may break loose due to the shock when the airbag is deployed.

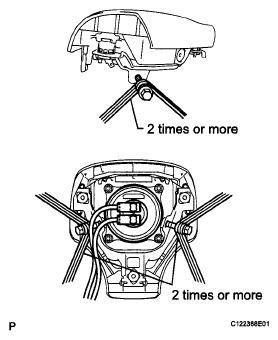

          Fig 13: Winding Wires Around Each Of Bolts
          G05757158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Face the airbag deployment side of the steering pad upward on top of an unneeded tire and wheel set. Separately tie the left and right sides of the steering pad to the wheel through the hub nut holes. Position the SST connector so that it hangs downward through the hub hole of the wheel.
        Fig 14: Identifying Face Airbag Deployment Side Of Steering Pad Upward
        G05757159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        CAUTION:
        • Make sure that the wires are tight. If there is slack in the wires, the steering pad may break loose due to the shock when the airbag is deployed.
        • Always tie down the steering pad with the airbag deployment side facing upward.
        NOTE: The wheel will be damaged by the airbag deployment, so use an unneeded wheel.
    4. Install SST.
      CAUTION: Place the wheel on level ground.
      1. Connect the SST connector

        SST 09082-00700

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the disc wheel.
        Fig 15: Connecting SST Connector
        G05757160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move SST at least 10 m (33 ft.) away from the airbag tied down to the wheel.
        Fig 16: Identifying Distance Between SST And Airbag
        G05757161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Cover the steering pad (using a cardboard box)
      1. Cover the steering pad with the cardboard box.
      2. Place weights on the cardboard box in 4 places totalling at least 190 N (19 kg, 42 7 lb)

        Minimum cardboard box size:

        Must exceed the following dimensions

        X:

        460 mm (18.1 in.)

        Y:

        650 mm (25.6 in.)

        Fig 17: Identifying Covered Steering Pad With Cardboard Box
        G05757162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • When dimension Y of the cardboard box exceeds the diameter of the wheel and tire which the steering pad is tied to, X should be the following size.

          X = 460 mm (18.1 in.) + width of tire

        • If a cardboard box smaller than the specified size is used, it may be broken by the shock from the airbag deployment.
    6. Cover the steering pad (using tires)
      1. Place at least 3 tires without wheels onto the wheel and tire which the steering pad is tied to.
      2. Place the wheel and tire on top of them.

        Minimum tire size:

        Must exceed the following dimensions

        Width:

        185 mm (7.28 in.)

        Inner diameter:

        360 mm (14.2 in.)

        CAUTION: Do not use tires with wheels except for on the top and bottom.
        Fig 18: Identifying Covered Steering Pad Using Tires
        G05757163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • The tires may be damaged by the airbag deployment, so use unneeded tires.
        • Do not place the SST connector under the tire because it could be damaged.
      3. Tie the tires together with the 2 wires.
        CAUTION: Make sure that the wires are tight. Looseness in the wires results in the tires breaking loose due to the shock when the airbag is deployed.
        Fig 19: Tying Tires Together With Wires
        G05757164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Deploy the airbag
      1. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal
      2. Check that no one is within a 10 m (33 ft.) radius of the wheel which the steering pad is tied to.
      3. Press the SST activation switch and deploy the airbag
        CAUTION: When deploying the airbag, make sure that no one is near the tire.

        HINT

        The airbag is deployed as the LED of the SST activation switch comes on.

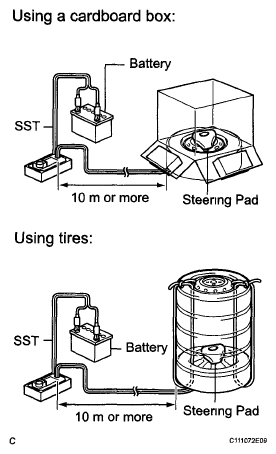

        Fig 20: Identifying Distance Between SST And Airbag
        G05757165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Dispose of the steering pad.
      CAUTION:
      • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
      • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
      • Do not apply water, etc. to a steering pad with a deployed airbag.
      • Always wash your hands with water after completing the operation.
        Fig 21: Placing Steering Pad In Plastic Bag
        G05757166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the steering pad from the wheel.
      2. Place the steering pad in a plastic bag, tie it tightly and dispose of it according to local regulations
