Parking Brake Cable: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY

    HINT

    Refer to the instructions for removal of the parking brake control pedal assembly (See REMOVAL ).

  2. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY
    1. Pull up the claw of the parking brake control pedal assembly
    2. Remove the No. 1 wire adjusting nut from the parking brake control pedal assembly
    3. Remove the clip and No. 1 parking brake cable assembly from the parking brake control pedal assembly
      4. Fig 1: Identifying No. 1 Wire Adjusting Nut And Claw
      G05752875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR WHEEL
  4. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY  (See PARKING BRAKE ASSEMBLY )
  5. REMOVE REAR DISC  (See REMOVAL )
  6. REMOVE NO. 2 PARKING BRAKE SHOE RETURN TENSION SPRING  (See PARKING BRAKE ASSEMBLY )
  7. REMOVE NO. 1 PARKING BRAKE SHOE RETURN TENSION SPRING  (See PARKING BRAKE ASSEMBLY )
  8. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET  (See PARKING BRAKE ASSEMBLY )
  9. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY  (See PARKING BRAKE ASSEMBLY )
  10. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY  (See PARKING BRAKE ASSEMBLY )
  11. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY  (See PARKING BRAKE ASSEMBLY )
  12. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR  (See REMOVAL )
  13. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Remove the 2 bolts, disengage the 2 clamps, and separate the No. 3 parking brake cable assembly form the body

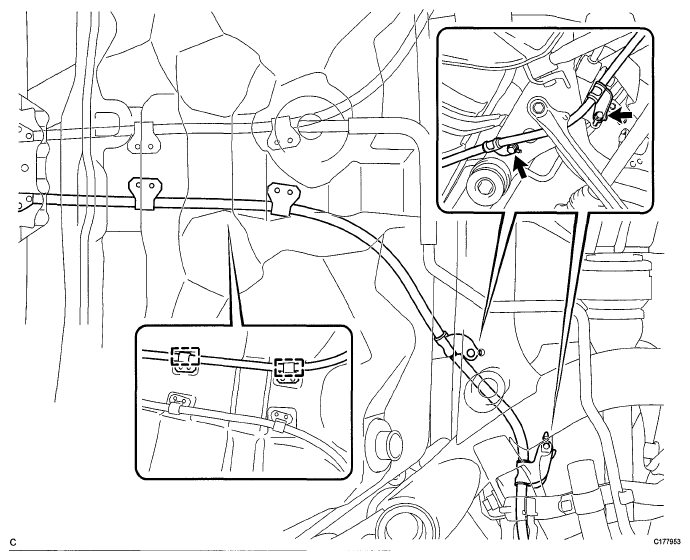

      Fig 2: Locating No. 3 Parking Brake Cable Assembly Bolts
      G05752876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and No. 3 parking brake cable assembly from the cable support bracket.
      Fig 3: Locating No. 3 Parking Brake Cable Assembly Nuts
      G05297377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 cable support brackets from the No. 3 parking brake cable assembly.
    Fig 4: Removing Cable Support Brackets
    G05752878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 DIFFERENTIAL SUPPORT PROTECTOR  (See REMOVAL )
  15. REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Use the same procedure for the No. 3 parking brake cable assembly.

  16. REMOVE CABLE SUPPORT BRACKET
    1. Remove the 2 nuts and cable support bracket
      Fig 5: Locating Cable Support Bracket Nuts
      G05752879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
