Navigation Antenna: Removal

  1. PRECAUTION

    (See PRECAUTION )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See REMOVAL )
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL )
  13. REMOVE CONSOLE BOX  (See REMOVAL )
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (See REMOVAL )
  17. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  18. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  19. REMOVE STEERING PAD  (See REMOVAL )
  20. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  21. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See REMOVAL )
  22. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See REMOVAL )
  23. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  24. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  25. REMOVE FRONT DOOR OPENING TRIM COVER LH  (See REMOVAL )
  26. REMOVE SIDE INSTRUMENT PANEL LH  (See REMOVAL )
  27. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  28. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  29. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  30. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  31. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  32. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  33. REMOVE FRONT DOOR OPENING TRIM COVER RH  (See REMOVAL )
  34. REMOVE SIDE INSTRUMENT PANEL RH  (See REMOVAL )
  35. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  36. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  37. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  38. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  39. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  40. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  41. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  42. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See REMOVAL )
  43. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY  (See REMOVAL )
  44. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)  (See REMOVAL )
  45. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)  (See REMOVAL )
  46. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)  (See REMOVAL )
  47. DISCONNECT PASSENGER AIRBAG CONNECTOR
  48. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See REMOVAL )
  49. REMOVE NO. 3 HEATER TO REGISTER DUCT  (See DISASSEMBLY )
  50. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT  (See DISASSEMBLY )
  51. REMOVE DEFROSTER NOZZLE ASSEMBLY  (See DISASSEMBLY )
  52. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the 2 clamps.
    2. Remove the 2 screws and navigation antenna.

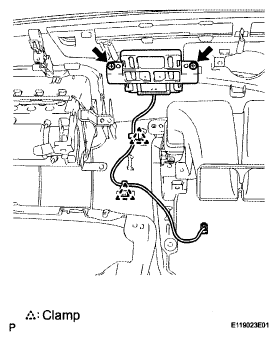

      Fig 1: Locating Navigation Antenna And Clamps
      G05832724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
