Roof Headlining: Removal

  1. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat)  (See REMOVAL )
  3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
  4. REMOVE REAR OUTER SEAT TRACK COVER LH (for Power Seat)  (See REMOVAL )
  5. REMOVE REAR INNER SEAT TRACK COVER LH (for Power Seat)
  6. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)  (See REMOVAL )
  7. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
  8. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
  9. REMOVE REAR OUTER SEAT TRACK COVER RH (for Power Seat)
  10. REMOVE REAR INNER SEAT TRACK COVER RH (for Power Seat)
  11. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
  12. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag from deploying (See PRECAUTION ).
  13. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  14. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat)  (See REMOVAL )
  15. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat)  (See REMOVAL )
  16. REMOVE REAR OUTER SEAT TRACK COVER LH (for Manual Seat)  (See REMOVAL )
  17. REMOVE REAR INNER SEAT TRACK COVER LH (for Manual Seat)  (See REMOVAL )
  18. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)  (See REMOVAL )
  19. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  20. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  21. REMOVE REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
  22. REMOVE REAR INNER SEAT TRACK COVER RH (for Manual Seat)
  23. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
  24. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  25. REMOVE REAR SEAT HEADREST ASSEMBLY
  26. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  27. REMOVE REAR SEAT BACK ASSEMBLY  (See REMOVAL )
  28. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  29. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  30. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  31. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  (See REMOVAL )
  32. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  (See REMOVAL )
  33. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  34. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  35. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  36. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See REMOVAL )
  37. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL )
  38. REMOVE CONSOLE BOX  (See REMOVAL )
  39. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  40. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See REMOVAL )
  41. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See REMOVAL )
  42. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See REMOVAL )
  43. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  44. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  45. REMOVE STEERING PAD  (See REMOVAL )
  46. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  47. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See REMOVAL )
  48. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See REMOVAL )
  49. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  50. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, disengage the 4 clips.
      Fig 1: Identifying Front Door Scuff Plate Clips
      G05833729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 claws and remove the front door scuff plate LH.
      4. Fig 2: Identifying Front Door Scuff Plate LH Claws
      G05755636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  52. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, disengage the 4 clips.
      Fig 3: Identifying Front Door Scuff Plate Clips
      G05833729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 claws and remove the front door scuff plate LH.
    4. Disconnect the connector.
      5. Fig 4: Identifying Front Door Scuff Plate LH Claws
      G05755636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  54. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 4 claws and remove the front door opening trim cover LH.
      2. Fig 5: Identifying Front Door Opening Trim Cover LH Claws
      G05833733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE FRONT DOOR OPENING TRIM COVER RH
  56. REMOVE FRONT PILLAR GARNISH LH
    1. Disengage the 2 clips from the vehicle body.
    2. Cut off the clip < A >.
    3. Disengage the claw and remove the front pillar garnish LH.
    4. Remove the clip < A > from the vehicle body.
      Fig 6: Identifying Front Pillar Garnish LH Claw And Clips
      G05833734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
        2. Fig 7: Identifying Curtain Shield Airbag Assembly
        G05755639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE FRONT PILLAR GARNISH RH
  58. REMOVE SIDE INSTRUMENT PANEL LH  (See REMOVAL )
  59. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  60. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  61. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  62. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  63. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  64. REMOVE SIDE INSTRUMENT PANEL RH  (See REMOVAL )
  65. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  66. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  67. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  68. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  69. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  70. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See REMOVAL )
  71. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See REMOVAL )
  72. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)  (See REMOVAL )
  73. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)  (See REMOVAL )
  74. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)  (See REMOVAL )
  75. DISCONNECT PASSENGER AIRBAG CONNECTOR  (See REMOVAL )
  76. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY  (See REMOVAL )
  77. REMOVE INSTRUMENT PANEL CLIP  (See REMOVAL )
  78. REMOVE INSTRUMENT PANEL STAY  (See REMOVAL )
  79. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE)  (See REMOVAL )
  80. REMOVE FRONT CENTER FLOOR BRACE (for 2GR-FSE)  (See REMOVAL )
  81. DISCONNECT OXYGEN SENSOR (for 2GR-FSE)  (See REMOVAL )
  82. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE)  (See REMOVAL )
  83. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE)  (See REMOVAL )
  84. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE)  (See REMOVAL )
  85. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE)  (See REMOVAL )
  86. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD)  (See REMOVAL )
  87. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD)  (See REMOVAL )
  88. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 2WD)  (See REMOVAL )
  89. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD)  (See REMOVAL )
  90. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD)  (See REMOVAL )
  91. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD)  (See REMOVAL )
  92. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD)  (See REMOVAL )
  93. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD)  (See REMOVAL )
  94. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD)  (See REMOVAL )
  95. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 4WD)  (See REMOVAL )
  96. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD)  (See REMOVAL )
  97. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD)  (See REMOVAL )
  98. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD)  (See REMOVAL )
  99. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD)  (See REMOVAL )
  100. REMOVE NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission)  (See REMOVAL )
  101. REMOVE SHIFT LEVER CAP (for Manual Transmission)  (See REMOVAL )
  102. REMOVE FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission)  (See REMOVAL )
  103. REMOVE REAR DOOR SCUFF PLATE LH
    1. Put protective tape around the rear door scuff plate.
    2. Using a molding remover, disengage the 2 clips.
      Fig 8: Identifying Rear Door Scuff Plate Clips
      G05833736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 claws and remove the rear door scuff plate LH.
      4. Fig 9: Identifying Rear Door Scuff Plate LH Claws
      G05755641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  104. REMOVE REAR DOOR SCUFF PLATE RH
  105. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws and remove the lap belt outer anchor cover.

      HINT:

      Use the same procedure to remove the cover on the other side.

      Fig 10: Identifying Lap Belt Outer Anchor Cover Claws
      G05833738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  106. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and separate the front seat outer belt assembly LH.
      2. Fig 11: Identifying Front Seat Outer Belt Assembly Bolt
      G05755643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  107. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH
  108. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 3 claws and 5 clips, and remove the lower center pillar garnish LH.
      2. Fig 12: Identifying Lower Center Pillar Garnish LH Claws And Clips
      G05833740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  109. REMOVE LOWER CENTER PILLAR GARNISH RH
  110. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Disengage the 2 claws and remove the center pillar garnish LH by pulling it down.
      3. Fig 13: Identifying Center Pillar Garnish LH Claws And Screws
      G05755645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  111. REMOVE CENTER PILLAR GARNISH RH
  112. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 5 claws and remove the rear seat side garnish LH.
    Fig 14: Identifying Rear Seat Side Garnish LH Claws
    G05755648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  113. REMOVE REAR SEAT SIDE GARNISH RH
  114. REMOVE ROOF SIDE INNER GARNISH LH
    1. Disengage the 4 clips and claw, and remove the roof side inner garnish LH.
    Fig 15: Identifying Roof Side Inner Garnish LH Clips And Claw
    G05755649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  115. REMOVE ROOF SIDE INNER GARNISH RH
  116. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER  (See REMOVAL )
  117. REMOVE RAIN SENSOR  (See REMOVAL )
  118. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Using a screwdriver, disengage the 3 claws and open the cover.

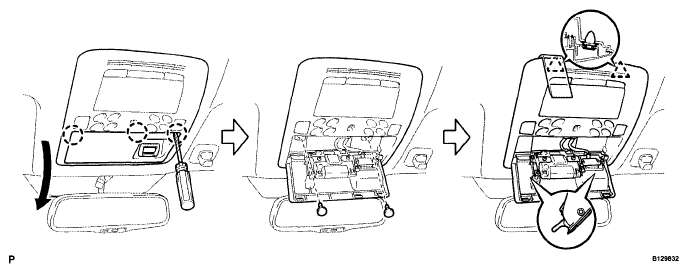

      Fig 16: Identifying Map Light Assembly Claws
      G05833744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a molding remover, disengage the 2 clips.
    4. Disconnect the connector. Remove the map light assembly.
  119. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Using a screwdriver, disengage the 3 claws and open the cover.

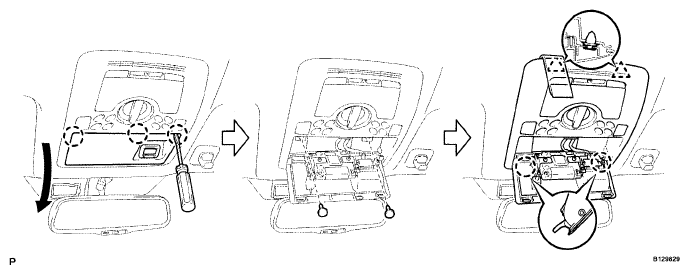

      Fig 17: Identifying Map Light Assembly Claws
      G05833745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a molding remover, disengage the 2 clips.
    4. Disconnect the connector. Remove the map light assembly.
  120. REMOVE SPOT LIGHT ASSEMBLY
    1. Using a molding remover, disengage the 2 clips.
    2. Disconnect the connector. Remove the spot light assembly.
      Fig 18: Identifying Spot Light Assembly Clips
      G05833746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  121. REMOVE COAT HOOK
    1. Remove the screw and coat hook.

      HINT:

      Use the same procedure to remove the hook on the other side.

      Fig 19: Identifying Coat Hook Screw
      G05755650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  122. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      Fig 20: Identifying Assist Grip Cover And Claws
      G05755651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

  123. REMOVE VISOR BRACKET COVER
    1. Using a molding remover, disengage the 4 claws and remove the visor bracket cover.

      HINT:

      Use the same procedure to remove the cover on the other side.

      Fig 21: Identifying Visor Bracket Cover Claws
      G04946718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  124. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.
      2. Fig 22: Identifying Visor Assembly Screws
      G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  125. REMOVE VISOR ASSEMBLY RH
  126. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.

      HINT:

      Use the same procedure to remove the holder on the other side.

      Fig 23: Removing Visor Holder
      G05244295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  127. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Disconnect the roof wire connector and disengage each clamp from the front pillar LH.
    2. Disconnect each connector from the map light assembly.
      Fig 24: Identifying Roof Wire Connector And Clamp
      G05833752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook, 10 claws and 2 clips.
      Fig 25: Identifying Hook, Claws And Clips
      G05755656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining assembly from the vehicle through the front right door.
      Fig 26: Identifying Roof Headlining Assembly
      G05755657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  128. REMOVE ROOF HEADLINING ASSEMBLY (w/Sliding Roof)
    1. Disconnect the roof wire connector and disengage each clamp from the front pillar LH.
    2. Disconnect each connector from the map light assembly.
      Fig 27: Identifying Roof Wire Connector And Clamp
      G05833752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook, 10 claws, 8 fasteners and 2 clips.

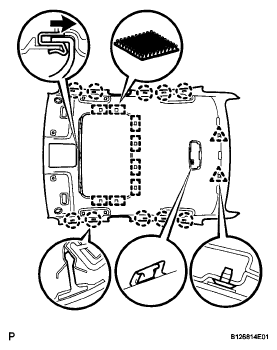

      Fig 28: Identifying Hook, Claws, Fasteners And Clips
      G05755659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining assembly from the vehicle through the front right door.
      Fig 29: Identifying Roof Headlining Assembly
      G05833757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  129. REMOVE ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the roof silencer pad.
      Fig 30: Identifying Roof Silencer Pad
      G05833758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  130. REMOVE REAR SIDE RAIL SPACER (w/o Sliding Roof)
    1. Remove the rear side rail spacer.
      Fig 31: Identifying Rear Side Rail Spacer
      G05833759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  131. REMOVE ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Remove the roof headlining pad.
      Fig 32: Identifying Roof Headlining Pad
      G05755680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  132. REMOVE REAR SIDE RAIL SPACER (w/ Sliding Roof)
    1. Remove the rear side rail spacer.
      Fig 33: Identifying Rear Side Rail Spacer
      G05833761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  133. REMOVE VANITY LIGHT ASSEMBLY
    1. Disengage the claw < A > and separate the bulb holder from the vanity light, as shown in the illustration.
    2. Disengage the claw < B > and remove the vanity light assembly.

      HINT:

      Use the same procedure to remove the light on the other side.

      Fig 34: Identifying Vanity Light Assembly And Claws
      G04982094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  134. REMOVE NO. 1 ROOF WIRE
    1. Remove the double-sided tape and roof wire.
  135. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  136. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  137. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  138. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
scientia non olet · About LEMON Manuals
