Instrument Panel Safety Pad: Removal

  1. PRECAUTION

    (See PRECAUTION  )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See PRECAUTION ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
      Fig 1: Removing Shift Lever Knob Sub-Assembly (For Automatic Transmission)
      G05832939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
      Fig 2: Removing Shift Lever Knob Sub-Assembly (For Manual Transmission)
      G05832940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Using a molding remover, disengage the claw.
      Fig 3: Disengaging Claw
      G05832941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

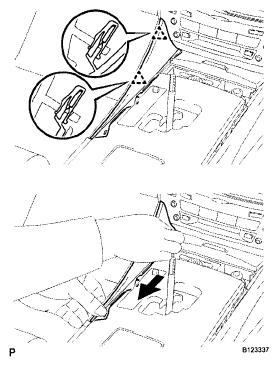

      Fig 4: Removing Upper No. 1 Console Panel Garnish (For Automatic Transmission)
      G05832942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Using a molding remover, disengage the claw.
      Fig 5: Disengaging Claw
      G05832943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.

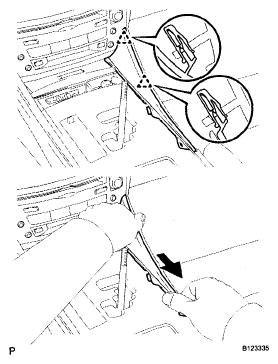

      Fig 6: Removing Upper No. 2 Console Panel Garnish (For Automatic Transmission)
      G05832944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
    1. Disengage the 8 clips.
    2. Disconnect the connectors and remove the console panel sub-assembly.
      Fig 7: Removing Console Panel Sub-Assembly (For Automatic Transmission)
      G05832945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Open the snap.
      Fig 8: Identifying Snap
      G05832946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.
      Fig 9: Removing Rear Console Panel Sub-Assembly (For Manual Transmission)
      G05832947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Open the snap.
      Fig 10: Identifying Snap
      G05832948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove it.

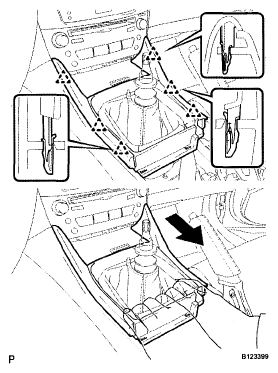

      Fig 11: Removing Front Console Panel Sub-Assembly (For Manual Transmission)
      G05832949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY
    1. Remove the 2 screws < F >.
      Fig 12: Identifying Front Ash Receptacle Sub-Assembly Screws
      G05832950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove it.
      Fig 13: Removing Front Ash Receptacle Sub-Assembly
      G05755520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Remove the rear ash receptacle assembly.
    2. Disengage the 2 claws and 4 clips, and then remove the console box register assembly.
      Fig 14: Removing Console Box Register Assembly
      G05755596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CONSOLE BOX
    1. Remove the 2 bolts < C >.
    2. Disconnect the 2 connectors.
    3. Disengage the 2 clamps.
      Fig 15: Locating Console Box Bolts, Connectors And Clamps
      G05832953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts < C >.
    5. Disconnect the connector.
      Fig 16: Locating Console Box Bolts And Connector
      G05832954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 bolts < C >.
      Fig 17: Locating Console Box Bolts
      G05755599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Disengage the 2 claws and 2 clips, and then remove the console box.
      Fig 18: Identifying Console Box Claws And Clips
      G05755600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws.

      HINT:

      Tape the screwdriver tip before use.

      Fig 19: Disengaging Claws
      G05832957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply protective tape to the areas shown in the illustration.
      Fig 20: Identifying Protective Tape On No. 3 Instrument Panel Register Assembly
      G05832958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a molding remover, disengage the 4 claws starting from the right of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
      NOTE: Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly.
    4. Disconnect the connectors.
      Fig 21: Removing No. 3 Instrument Panel Register Assembly
      G05832959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Disengage the 4 claws and remove the center lower instrument cluster finish panel.
    Fig 22: Identifying Center Lower Instrument Cluster Finish Panel Claws
    G05755524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See REMOVAL )
  17. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See REMOVAL )
  18. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  19. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  20. REMOVE STEERING PAD  (See REMOVAL )
  21. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  22. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See REMOVAL )
  23. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See REMOVAL )
  24. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  25. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)  (See REMOVAL )
  26. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)  (See REMOVAL )
  27. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 6 claws and remove the front door opening trim cover LH.
      Fig 23: Identifying Front Door Opening Trim Cover LH Claws
      G05832961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE SIDE INSTRUMENT PANEL LH
    1. Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.
      Fig 24: Removing Side Instrument Panel Installing LH
      G05832962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws < E >.
    2. Push the 2 claws in the direction indicated by the arrow to disengage them.
    3. Remove the No. 1 instrument panel under cover sub-assembly from the guide as shown in the illustration and pull the cover toward the rear of the vehicle.
    4. Disconnect the connectors and remove the No. 1 instrument panel under cover sub-assembly.
      Fig 25: Disengaging No. 1 Instrument Panel Under Cover Sub-Assembly Claws
      G05832963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Disengage the 7 clips.
    2. Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
      3. Fig 26: Identifying Lower Instrument Panel Finish Panel Sub-Assembly Clips
      G05832964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  32. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 screws < G > and 2 clips, and then remove the instrument cluster finish panel sub-assembly.
      Fig 27: Identifying Instrument Cluster Finish Panel Sub-Assembly Screws And Clips
      G05755581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE COMBINATION METER ASSEMBLY
    1. Using a screwdriver, disengage the 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connectors and remove the combination meter assembly.
      3. Fig 28: Removing Combination Meter Assembly
      G05832966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)

    HINT:

    Use the same procedures for the RH side and the LH side.

  35. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)

    HINT:

    Use the same procedures for the RH side and the LH side.

  36. REMOVE FRONT DOOR OPENING TRIM COVER RH
    1. Disengage the 6 claws and remove the front door opening trim cover RH.
      Fig 29: Identifying Front Door Opening Trim Cover RH Claws
      G05832967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE SIDE INSTRUMENT PANEL RH
    1. Using a molding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel RH.
      Fig 30: Removing Side Instrument Panel RH
      G05832968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Using a molding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.
      2. Fig 31: Removing No. 2 Instrument Panel Under Cover Sub-Assembly
      G05832969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  40. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 5 screws < E >.
    2. Disengage the 2 claws.
    3. Disconnect the connectors and remove the glove compartment door assembly.
    Fig 32: Identifying Glove Compartment Door Assembly Screws And Claws
    G05755532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  42. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  43. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Pull the No. 1 instrument panel register assembly in the direction indicated by the arrow to disengage the 7 claws and 2 clips, and then disconnect the connector and remove it.

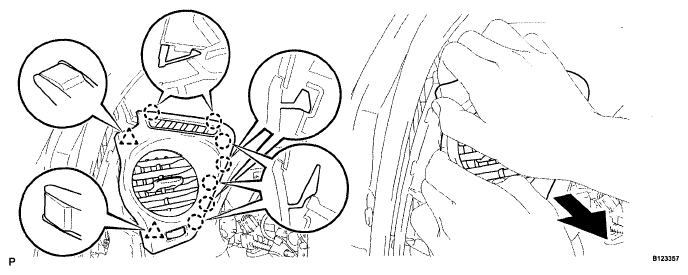

      Fig 33: Removing No. 1 Instrument Panel Register Assembly
      G05832971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

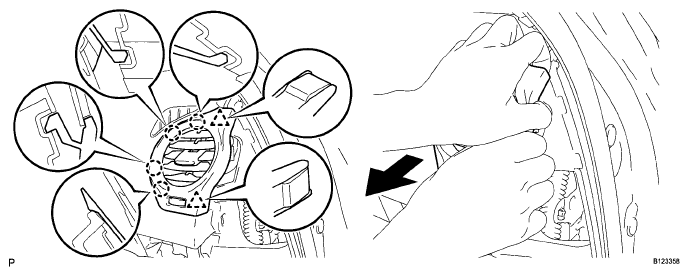

    1. Pull the No. 2 instrument panel register assembly in the direction indicated by the arrow to disengage the 4 claws and 2 clips, and then disconnect the connector and remove it.
      Fig 34: Removing No. 2 Instrument Panel Register Assembly
      G05755534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 7 claws and remove the No. 3 instrument panel speaker panel sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      Fig 35: Identifying No. 3 Instrument Panel Speaker Panel Sub-Assembly Claws
      G05832973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See REMOVAL )
  47. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Remove the 2 clips and No. 2 console box duct.
      Fig 36: Identifying No. 2 Console Box Duct Clips (For Automatic Transmission)
      G05755536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Remove the clip and No. 1 console box duct.
      Fig 37: Identifying No. 1 Console Box Duct Clip (For Automatic Transmission)
      G05755537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
    1. Remove the clip and No. 2 console box duct.
    Fig 38: Identifying No. 2 Console Box Duct Clip (For Manual Transmission)
    G05832976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. DISCONNECT PASSENGER AIRBAG CONNECTOR  (See REMOVAL )
  51. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Disengage the clamps.
    2. Disconnect the connectors.
    3. Disengage the 2 claws and separate the cooler thermistor.
      Fig 39: Locating Instrument Panel Safety Pad Assembly Clamps, Connectors And Claws
      G05832977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 6 bolts < D > and nut < H >.
    5. Remove the 2 passenger airbag bolts < A > or < B >.
    6. Disengage the 2 clamps.
    7. Disengage the 5 claws and remove the instrument panel safety pad assembly.

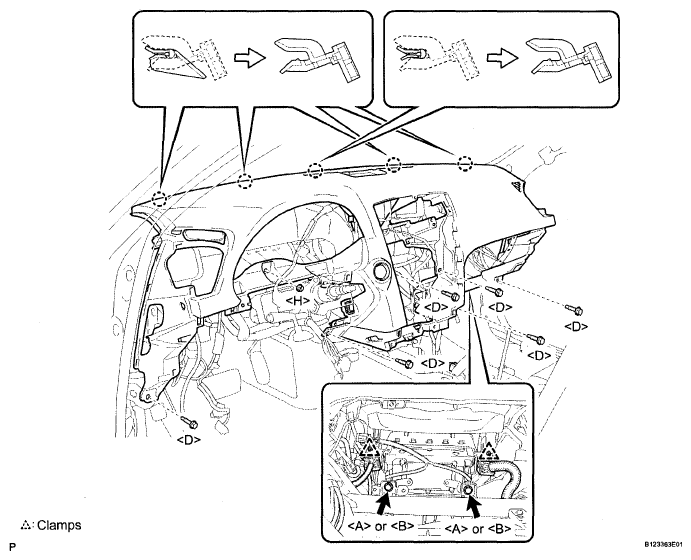

      Fig 40: Identifying Instrument Panel Safety Pad Assembly Clamps And Claws
      G05832978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE INSTRUMENT PANEL CLIP
    1. Disengage the claw and remove the 4 instrument panel clips.
      Fig 41: Identifying Instrument Panel Clips And Screws And Claw
      G05755540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE INSTRUMENT PANEL STAY
    1. Disengage the claw and remove the instrument panel stay.
      Fig 42: Identifying Instrument Panel Stay Claw
      G05755541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
