Sub Radiator: Removal

  1. REMOVE ENGINE ROOM SIDE LH COVER NO.2  (See REMOVAL )
  2. DRAIN COOLANT (for Inverter)  (See COOLANT (for Inverter) )
  3. REMOVE FRONT BUMPER STAY CENTER  (See REMOVAL )
  4. REMOVE FRONT BUMPER COVER  (See REMOVAL )
  5. REMOVE FRONT BUMPER ENERGY ABSORBER  (See REMOVAL )
  6. REMOVE FRONT BUMPER REINFORCEMENT  (See DISASSEMBLY )
  7. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  8. REMOVE AIR CLEANER CAP W/INLET  (See REMOVAL )
  9. SEPARATE HOOD LOCK ASSEMBLY  (See REMOVAL )
  10. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER  (See REMOVAL )
  11. REMOVE HOOD LOCK SUPPORT SUB-ASSEMBLY
    1. Remove the bolt and hood lock support sub-assembly.
    Fig 1: Locating Hood Lock Support Sub-Assembly Bolt
    G05278912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIATOR ASSEMBLY

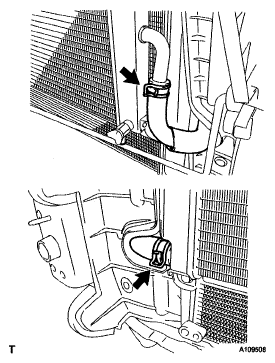

    1. Slide the 2 clamps, and disconnect the 2 water hoses from the radiator assembly.
      Fig 2: Locating Water Hoses With Clamps
      G05201786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and radiator assembly from the cooler condenser assembly.
    Fig 3: Locating Radiator Assembly Bolts
    G05201787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
