Front Bumper: Disassembly

  1. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. Remove the front bumper energy absorber.
    Fig 1: Identifying Front Bumper Energy Absorber
    G05281659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT BUMPER STAY REINFORCEMENT
    1. Remove the 4 clips and front bumper stay reinforcement.
    Fig 2: Identifying Clips And Front Bumper Stay Reinforcement
    G05281660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER REINFORCEMENT
    1. Remove the 6 bolts and front bumper reinforcement.
    Fig 3: Identifying Front Bumper Reinforcement With Bolts
    G05281661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT BUMPER STAY NO.2 LH
    1. Remove the 2 screws.
    2. Release the 3 claws and front bumper stay No.2 LH.
  5. REMOVE FRONT BUMPER STAY NO.2 RH
    Fig 4: Identifying Screws And Front Bumper Stay No.2 LH
    G05281662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 bolts.
    2. Release the 2 claws and remove the front bumper extension mounting bracket.
  7. REMOVE HEADLIGHT CLEANER WASHER NOZZLE LH (w/Headlight Washer)  (See REMOVAL )
  8. REMOVE HEADLIGHT CLEANER WASHER NOZZLE RH (w/Headlight Washer)
  9. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/Headlight Washer)  (See REMOVAL )
  10. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/Headlight Washer)
    Fig 5: Identifying Claws And Front Bumper Extension Mounting Bracket
    G05281663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HEADLIGHT CLEANER HOSE (w/Headlight Washer)
    1. Release the 8 clamps and remove the headlight cleaner hose No.1

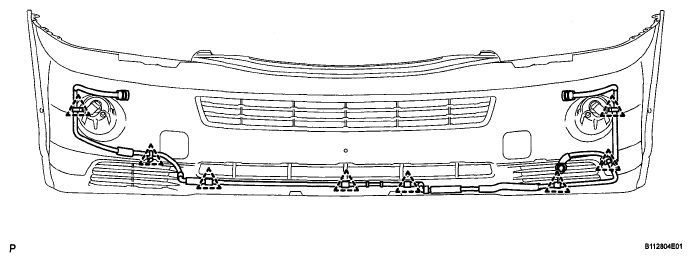

    Fig 6: Identifying Clamps And Headlight Cleaner Hose No.1
    G05281664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE RADIATOR GRILLE BRACKET NO.2
    1. Release the 6 claws and remove the 3 radiator grille brackets No.2
  13. REMOVE RADIATOR GRILLE GARNISH CLIP
    Fig 7: Identifying Claws And Radiator Grille Brackets No.2
    G05281665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR GRILLE GARNISH NO.3
    1. Release the 6 claws and remove the 3 radiator grille garnishes No.3.
  15. REMOVE RADIATOR GRILLE GARNISH NO.2
    Fig 8: Identifying Claws And Radiator Grille Garnishes No.3
    G05281666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIATOR GRILLE GARNISH
    1. Release the 6 claws and remove the 3 radiator grille garnishes.
    Fig 9: Identifying Claws And Radiator Grille Garnishes
    G05281667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FOG LIGHT MOUNTING BRACKET LH
    1. Remove the 2 screws and fog light mounting bracket LH.
  18. REMOVE FOG LIGHT MOUNTING BRACKET RH
    Fig 10: Identifying Screws And Fog Light Mounting Bracket LH
    G05281668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT BUMPER HOLE COVER LH
    1. Release the 2 claws and hook, and remove the front bumper hole cover LH.
  20. REMOVE FRONT BUMPER HOLE COVER RH
    Fig 11: Identifying Claws And Hook
    G05281669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FOG LIGHT PROTECTOR LH
    1. Release the 2 claws and fog light protector LH.
  22. REMOVE FOG LIGHT PROTECTOR RH
  23. REMOVE FOG LIGHT ASSEMBLY LH  (See REMOVAL )
  24. REMOVE FOG LIGHT ASSEMBLY RH
    Fig 12: Identifying Claws And Fog Light Protector LH
    G05281670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT BUMPER GARNISH (w/ Radar Cruise)
    1. Remove the 2 clips.
    2. Remove the 4 screws, 5 bolts and front bumper garnish.
    Fig 13: Identifying Screws, Bolts And Front Bumper Garnish
    G05281671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
