Instrument Panel Safety Pad: Removal

  1. BOLT, SCREW AND NUT TABLE

    HINT:

    The bolts, screws and nuts, which are necessary for installation and removal of the instrument panel are shown in the illustration below and the text with alphabets.

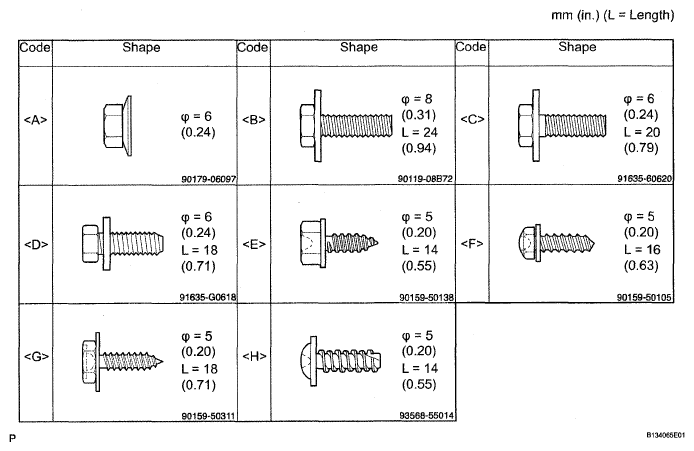

    Fig 1: Bolts, Screws And Nuts Length Specification Chart
    G05266862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL

    HINT:

    RS-1

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
  5. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Disengage the 3 clips and remove the No. 2 console upper panel garnish.
    Fig 2: No. 2 Console Upper Panel Garnish
    G05266863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Disengage the 4 clips and remove the No. 1 console upper panel garnish.
    Fig 3: No. 1 Console Upper Panel Garnish
    G05266864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER CONSOLE PANEL ASSEMBLY
    1. Disengage the 11 clips and remove the upper console panel assembly, then disconnect the connectors.
    Fig 4: Upper Console Panel Assembly
    G05266865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH
    1. Using a moulding remover, disengage the 7 clips as shown in the illustration.
    2. Disconnect the connector and remove the instrument panel garnish sub-assembly LH.
  9. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
    Fig 5: Instrument Panel Garnish Sub-Assembly LH
    G05266866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL
    1. Disengage the 5 clips and remove the lower center instrument cluster finish panel, then disconnect the connectors.
  11. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (See  REMOVAL  )
    Fig 6: Lower Center Instrument Cluster Finish Panel
    G05266867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Disengage the 2 clips and the 5 claws, and then remove the console rear end panel sub-assembly.
    2. Disconnect the connectors.
    Fig 7: Console Rear End Panel Sub-Assembly
    G05266868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the 2 bolts < D>, the 2 screws < E> and the rear console box assembly.
    Fig 8: Identifying Rear Console Box Assembly Bolts And Screws
    G05266869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Disengage the 2 claws.
    2. Pull the front No. 2 console box insert rearward to remove it.
  15. REMOVE CONSOLE BOX INSERT
    Fig 9: Front No. 2 Console Box Insert
    G05266870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT CONSOLE UPPER PANEL GARNISH
    1. Disengage the 5 clips and remove the front console upper panel garnish, then disconnect the connectors.
    Fig 10: Identifying Front Console Upper Panel Garnish Clips
    G05266871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE LOWER CONSOLE BOX
    1. Remove the 2 bolts < D>.
    2. Remove the 2 screws < E> and the lower console box.
  18. REMOVE LOWER NO. 2 STEERING WHEEL COVER
  19. REMOVE LOWER NO. 3 STEERING WHEEL COVER
  20. REMOVE STEERING PAD (See  INSTALLATION  )
  21. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
    Fig 11: Identifying Lower Console Box Bolts And Screws
    G05266872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE STEERING COLUMN COVER (See  REMOVAL  )
  23. REMOVE TURN SIGNAL SWITCH ASSEMBLY (See  REMOVAL  )
  24. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  25. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  26. REMOVE FRONT FLOOR FOOTREST
    1. Disengage the 2 claws and remove the front floor footrest.
    Fig 12: Identifying Front Floor Footrest Claws
    G05266873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
    2. Disengage the 2 clips and remove the cowl side trim board LH.
  28. REMOVE COWL SIDE TRIM BOARD RH
    Fig 13: Identifying Cowl Side Trim Board Clips
    G05266874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the screw < F>.
    2. Disengage the 2 clips and the claw, and then remove the No. 1 instrument panel under cover sub-assembly.
    Fig 14: Identifying Instrument Panel Under Cover Clips
    G05266875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
    1. Disengage the 2 clips and remove the instrument cluster finish panel ornament.
  31. REMOVE NO. 1 SWITCH HOLE BASE
    Fig 15: Identifying Instrument Cluster Finish Panel Ornament Clips
    G05266876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE INSTRUMENT PANEL FINISH PLATE
    1. Remove the instrument panel finish plate.
    Fig 16: Identifying Instrument Panel Finish Plate
    G05266877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH
    1. Remove the 3 bolts < D>.
    2. Disconnect the hood lock control cable assembly and the fuel lid lock control cable sub-assembly.
    3. Disengage the 4 clips.
    4. Disconnect the connectors and remove the instrument panel finish lower panel RH.
  34. REMOVE INSTRUMENT PANEL LOWER LH
    1. Remove the 3 bolts < D> and instrument panel lower LH.
    Fig 17: Identifying Instrument Panel Finish Lower Panel Clips
    G05266878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Remove the 2 clips.
    2. Disengage the 2 clips and remove the instrument cluster finish panel sub-assembly.
  36. REMOVE COMBINATION METER ASSEMBLY (See  DISASSEMBLY  )
    Fig 18: Identifying Instrument Cluster Finish Panel Clips
    G05266879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Remove the screw < F>.
    2. Disengage the 3 claws and remove the No. 1 instrument panel register assembly.
    Fig 19: Identifying Instrument Panel Register Assembly Claws
    G05266880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER
    1. Remove the screw < F>.
    2. Disengage the 3 clips and remove the No. 2 instrument panel under cover.
    Fig 20: Identifying Instrument Panel Under Cover Clips
    G05266881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE INSTRUMENT PANEL ORNAMENT
    1. Disengage the 4 clips and remove the instrument panel ornament.
  40. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  REMOVAL  )
    Fig 21: Identifying Instrument Panel Ornament Clips
    G05266882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Remove the 5 screws < F>.
    2. Disengage the 2 clips and remove the glove compartment door sub-assembly, then disconnect the connectors.
  42. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    Fig 22: Identifying Glove Compartment Door Clips And Screws
    G05266883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE DISC PLAYER CHANGER (w/ CD Changer)
  44. REMOVE ASSIST GRIP ASSEMBLY (See  REMOVAL  )
  45. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  46. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  47. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Remove the 9 bolts < C> < D> and nut < A>.
    2. Disconnect the connectors.
    3. Remove the instrument panel safety pad sub-assembly with defroster nozzle duct.
    Fig 23: Identifying Instrument Panel Safety Pad Sub-Assembly Bolts And Nut
    G05266884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 5 screws < H> and defroster nozzle assembly.
  49. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Remove the 2 screws < H> and No. 3 heater to register duct.
  50. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
  51. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
  52. REMOVE GPS ANTENNA ASSEMBLY (w/ LEXUS Link System) (See  REMOVAL  )
  53. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
  54. REMOVE NO. 3 INSTRUMENT PANEL WIRE
  55. REMOVE NO. 2 CONNECTOR HOLDER
  56. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
  57. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (See  REMOVAL  )
  58. REMOVE ANTENNA CORD SUB-ASSEMBLY (See  REMOVAL  )
  59. REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)
  60. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
  61. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
