Air Conditioning Control Assembly: Removal

  1. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH (See  REMOVAL  )
  2. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
  3. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
    Fig 1: Identifying Integration Control & Panel Assembly With Bolt & Clips
    G05263419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Loosen the bolt and remove the 4 bolts, the 4 clips and the integration control and panel assembly.
  4. REMOVE RADIO BRACKET NO. 1
  5. REMOVE RADIO BRACKET NO. 2
  6. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
  7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

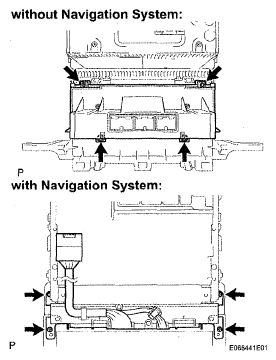

    Fig 2: Identifying Air Conditioning Control Assembly Screws
    G05263420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and the air conditioning control assembly.
