Instrument Panel Safety Pad: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
   1. Attach the 5 clips to install the safety pad.
   2. Connect the connectors and clamps.
   3. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   4. Install the 4 bolts, nut and 2 clips.
   5. Install the center junction block RH and LH with the 4 nuts.

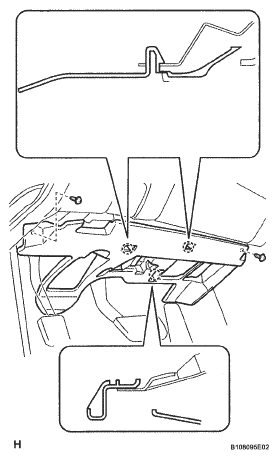

      Fig 1: Identifying Instrument Panel Safety Pad Nuts, Bolts And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. w/ Navigation System:

      Install the navigation ECU.

      1. Connect the connector.
      2. Install the ECU with the 3 bolts.
   Fig 2: Identifying Navigation ECU Bolts
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  (see INSTALLATION )
3. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
4. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
   1. Attach the 2 clips and claw to install the glove compartment door.
   2. Connect the connector and clamp.
   3. Install the 4 screws.
   Fig 3: Identifying Glove Compartment Door Screws
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
   1. Connect the connector and clamp.
   2. Attach the 4 clips to install the under cover.
      Fig 4: Identifying No. 2 Instrument Panel Under Cover Clamp And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
   1. Connect the connector.
   2. Attach the 2 claws to install the control panel.
   3. Install the 2 screws.
   Fig 5: Identifying Integration Control Panel Screws
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
10. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Install the hood lock control cable to the safety pad.
    2. Attach the 8 clips and claw to install the safety pad.
       Fig 6: Identifying No. 1 Instrument Panel Safety Pad Clips And Claw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 3 claws.
    3. Install the under cover with the 2 screws.
       Fig 7: Identifying No. 1 Instrument Panel Under Cover Claws And Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the 2 claws and 4 clips to install the side panel.
       Fig 8: Identifying Instrument Side Panel Claws And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 2 claws and 4 clips to install the side panel.
       Fig 9: Identifying Instrument Side Panel Claws And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter with the 4 screws.
       Fig 10: Identifying Combination Meter Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 5 clips to install the cluster finish panel.
       Fig 11: Identifying Instrument Cluster Finish Panel Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL CONSOLE BOX
    1. Connect the connector.
    2. Install the console box with the 4 bolts and 2 screws.
       Fig 12: Identifying Console Box Bolts And Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Attach the 4 clips to install the register.
       Fig 13: Identifying Console Box Register Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL CONSOLE BOX PLATE
    1. Connect the connector.
    2. Attach the 4 clips to install the console box.
       Fig 14: Identifying Console Box Plate Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Attach the 4 clips and 3 claws to install the finish panel end.
    2. Install the screw.
       Fig 15: Identifying Instrument Panel Finish Panel End Clips And Claws - LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Attach the 3 clips and 3 claws to install the finish panel end.
    2. Install the screw.
       Fig 16: Identifying Instrument Panel Finish Panel End Clips And Claws - RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL CONSOLE UPPER PANEL ASSEMBLY
    1. Connect the connector.
    2. Attach the 9 clips to install the console upper panel.
       Fig 17: Identifying Console Upper Panel Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the shift lever knob and twist it in the direction indicated by the arrow.
    Fig 18: Twisting Shift Lever Knob
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
    1. Attach the claws to install the garnish.
23. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY  (See INSPECTION )
24. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY  (See INSTALLATION )
25. INSTALL SPIRAL CABLE WITH STEERING SENSOR  (See INSTALLATION )
26. INSTALL STEERING COLUMN COVER UPPER  (See INSTALLATION )
27. INSTALL STEERING COLUMN COVER LOWER  (See INSTALLATION )
28. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
29. INSTALL STEERING PAD  (See INSTALLATION )
30. INSTALL NO. 3 STEERING WHEEL COVER LOWER
31. INSTALL NO. 2 STEERING WHEEL COVER LOWER
32. INSTALL FRONT DOOR OPENING TRIM COVER LH  (See INSTALLATION )
33. INSTALL FRONT DOOR OPENING TRIM COVER RH  (See INSTALLATION )
34. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
35. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
37. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION (2006/02-2006/07) ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
38. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM (2006/02-2006/07) ).
